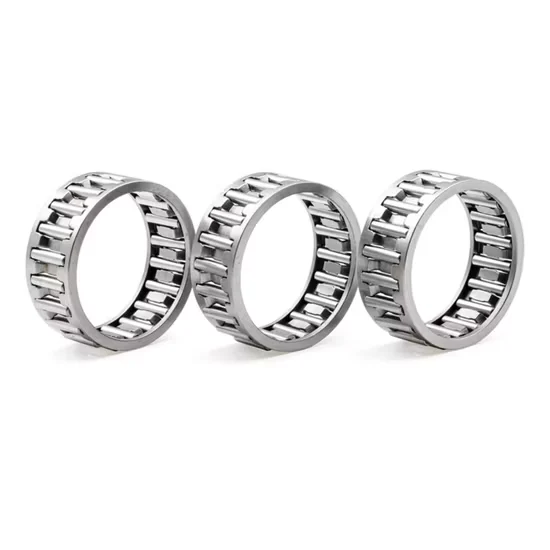

20x28x13mm Needle Roller Bearing Without Inner Ring for Industrial Machinery High Speed

Traceable QR Verification — Each needle roller bearing package features a scannable QR code linking directly to the manufacturer’s official authentication portal.

Technical Specifications

Application Suitability

Why Shaft Hardness Dictates the Survival of Components from an Industrial Machinery Needle Roller Bearing Without Inner Ring Supplier

The shaft itself acts as the inner raceway, making its surface hardness and geometric tolerance the actual determinants of bearing lifespan.

Early in my career, a shipment to Brazil failed catastrophically because we overlooked the journal hardness and fitting tolerances for a similar compact roller setup. The equipment ran at high speeds, causing rapid journal wear and ultimate seizure. Today, I rigorously verify housing tolerances and high-speed lubrication requirements to prevent such costly oversights. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Aligning Compact Roller Profiles with High-Speed Demands

When sourcing from a reliable industrial machinery needle roller bearing without inner ring supplier, matching the compact cross-section to your specific rotational speeds is critical. Our engineering team provides cross-brand equivalent model consultation to ensure the selected configuration handles your exact radial loads. This prevents the common pitfall of undersizing the roller complement in confined spaces.

Managing Lubrication and Tolerance Challenges in Confined Spaces

Operating without an inner ring exposes the rolling elements directly to the shaft, demanding precise alignment and optimal high-speed lubrication to prevent friction-induced thermal expansion. Inadequate grease distribution or incorrect fitting tolerances quickly lead to uneven load distribution across the needle rollers. Furthermore, the absence of an inner ring means any shaft deflection directly impacts the operational clearance. Proper installation techniques and strict adherence to shaft roundness specifications are non-negotiable for sustained performance. [NEED_CITE: bearing installation and fitting tolerance guidelines per ISO 281]

Material Options and Precision Classes for Diverse Environments

Selecting the right material variant is crucial for long-term reliability in varying operational environments. While standard chrome steel offers excellent load capacity for general industrial machinery, stainless steel variants are available for applications exposed to moisture or mild corrosive elements. The choice between P0, P6, and P5 precision classes directly influences the running accuracy and noise levels during high-speed operation. Higher precision grades minimize vibration, which is essential for sensitive machine tools and automotive transmissions. Additionally, verifying the exact ring configuration against OEM requirements ensures direct integration into existing assemblies.

The Compounding Financial Impact of Incorrect Tolerance Matching

Failing to verify shaft hardness and geometric tolerances before installation inevitably leads to unplanned downtime and premature failure. When the journal surface degrades under high-speed friction, it triggers catastrophic damage to the surrounding housing and adjacent drivetrain components. Such failures often result in warranty voidance and necessitate complete assembly replacements rather than simple component swaps. Adhering to standardized failure analysis frameworks helps identify these root causes before they escalate. [NEED_CITE: financial impact of unplanned downtime in heavy manufacturing]

Securing Traceability and Technical Support for Critical MRO Orders

We provide genuine original bearings with complete traceability documentation, ensuring every needle roller component meets strict authenticity standards. Our flexible MOQ accommodates everything from single-unit emergency spare-part orders for urgent MRO replacements to full container consolidation shipments. Because mixed-brand and mixed-size packages are common in industrial maintenance, we offer massive spot inventory covering thousands of standard part numbers. Our technical selection support helps you cross-reference equivalent models across premium global brands, optimizing your sourcing costs without compromising on precision. Furthermore, our global shipping consolidation and long-term after-sales technical support guarantee reliable delivery and ongoing failure analysis guidance.

Documentation & Authenticity

• Certificate of Conformity validating the exact precision class and material grade for each batch.
• Scannable QR codes on packaging linking to the manufacturer’s official verification portal.
• Material inspection reports confirming the metallurgical composition of the chrome steel or stainless variants.
• Dimensional and running accuracy inspection reports verifying P0, P6, or P5 tolerances prior to dispatch.
• Original batch traceability records ensuring full supply chain transparency for MRO audits.

Storage, Handling & Mounting

• Keep the original packaging sealed until mounting to protect the high-speed, low-noise surface finishes from ambient moisture.
• Use clean lint-free gloves when handling the exposed needle rollers to prevent skin oils from initiating corrosion.
• Verify shaft hardness and roundness with precision gauges before pressing the bearing into the housing.
• Apply the recommended high-speed lubricant evenly across the shaft journal prior to installation to prevent initial dry running.
• Store P5 precision variants in a temperature-controlled environment to prevent thermal distortion of the tight tolerances.

Providing the Right Parameters for Accurate Technical Review

To ensure the optimal configuration for your equipment, please share your specific operational parameters, including radial loads, rotational speeds, and operating temperatures. Providing the exact OEM equipment model and available installation space allows our engineering team to determine the most suitable dimensional specification and precision class. Additionally, detailing the environmental conditions, such as exposure to dust or moisture, helps us recommend the appropriate material variant and lubrication strategy.

Frequently Asked Questions

Q: How do I determine the exact standard designation from the 20x28x13mm dimensions?

A: While the 20x28x13mm dimensions define the physical envelope, the exact standard designation depends on the specific series and manufacturer nomenclature. We recommend providing your OEM equipment model and operational parameters so our engineering team can cross-reference the appropriate catalog and identify the precise part number for your application.

Q: What are the common failure modes in high-speed industrial machinery applications?

A: In high-speed applications, common failure modes include inadequate lubrication leading to thermal seizure, shaft wear due to insufficient journal hardness, and misalignment causing uneven load distribution. Properly verifying the shaft tolerances and selecting the correct high-speed lubricant are critical steps to prevent these premature failures and extend operational life.

Q: How should I choose between P0, P6, and P5 precision classes?

A: The choice of precision class depends on your equipment’s tolerance for vibration and running accuracy. P0 is suitable for general industrial machinery, while P6 and P5 are necessary for high-speed machine tools or automotive transmissions where minimal noise and strict geometric accuracy are required to maintain optimal system performance.

Q: What is the operational difference between without inner ring and without outer ring configurations?

A: A configuration without an inner ring uses the shaft itself as the raceway, requiring the shaft to have high hardness and precise geometric tolerances. Conversely, a design without an outer ring relies on the housing bore as the outer raceway. The choice depends on which component can be machined to the required specifications.

Q: How can I consolidate mixed-brand orders for urgent MRO requirements?

A: We maintain a massive spot inventory of premium global and reliable domestic brands, allowing us to consolidate mixed-brand and mixed-size packages into a single shipment. This flexible approach ensures you receive all necessary components for urgent maintenance simultaneously, reducing lead times and simplifying your procurement process for critical MRO replacements.
