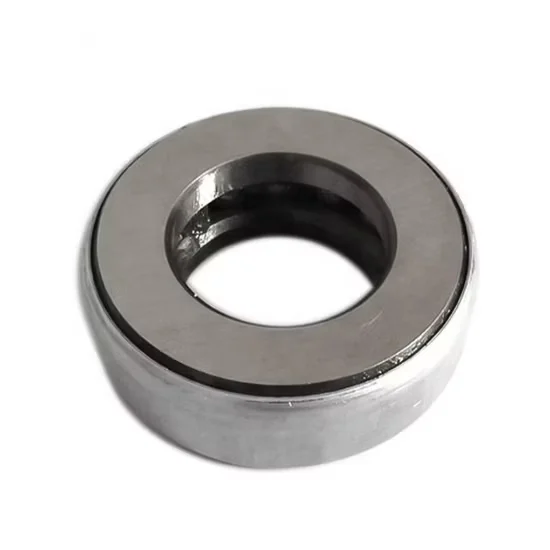

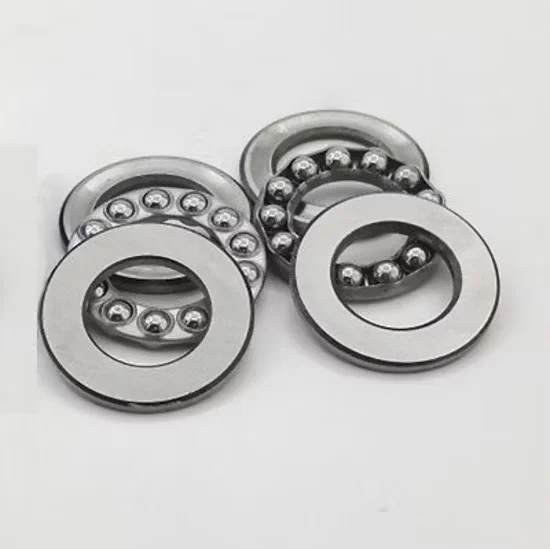

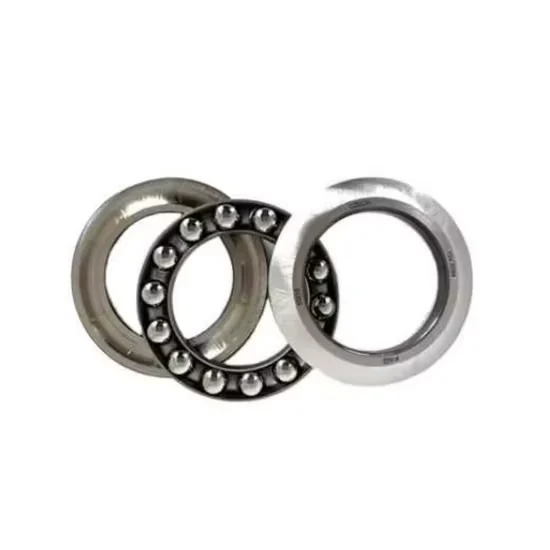

51160 51164 51164f1 Thrust Ball Bearing Single Row Open Type [WARN] draft identifier mismatch

Cross-Reference Alignment — verifying dimensional and load equivalence across OEM catalogs prevents mismatched axial fits.

Technical Specifications

Application Suitability

Why Axial Bearing Failures Happen Before the Steel Yields

Sourcing a reliable OZD KOYO NTN NSK 51160 51164 51164f1 thrust ball bearing requires looking beyond basic load ratings.

Cage material and clearance matching dictate survival under high-speed axial stress.

I once saw a vertical motor lock up completely because a stamped steel cage shattered under high-temperature, high-speed axial load. The steel rings were perfectly fine, but the cage disintegrated into the raceway. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] shows that cage failures often stem from material incompatibility with the operating thermal envelope rather than pure fatigue.

Matching Axial Components to Vertical Shaft Dynamics

When specifying an OZD KOYO NTN NSK 51160 51164 51164f1 thrust ball bearing for vertical pumps or machine tool spindles, the primary challenge is managing pure axial loads without radial support. Our engineering team cross-checks your specific shaft diameters and housing tolerances to ensure the selected bore code aligns perfectly with the OEM design, eliminating the risk of micro-movements that accelerate raceway wear.

Thermal Expansion and Lubrication Starvation in Open Designs

Open-type configurations rely entirely on external lubrication circuits, which means oil flow or grease replenishment must be precisely calibrated to the rotational speed. At elevated temperatures, thermal expansion alters the internal geometry, making the initial clearance class critical to prevent preload loss or excessive friction. [NEED_CITE: thermal impact on bearing internal clearance per ISO 281] If the lubrication film breaks down due to contamination or starvation, the rolling elements will skid rather than roll, leading to rapid surface degradation.

Decoding Precision Classes and Cage Material Options

The P0, P6, and P5 precision ratings dictate the running accuracy and axial runout limits, which are non-negotiable for machine tool spindles requiring tight dimensional control. For the cage, while standard stamped steel is common, heavy-duty or high-speed applications often require machined brass or specialized polymer variants to withstand vibration and centrifugal forces. Selecting the correct bore code and cage material ensures the component survives the specific thermal and mechanical envelope of your vertical equipment.

The Cascading Impact of Mismatched Axial Tolerances

Installing a thrust component with the wrong precision class or inadequate cage material doesn’t just cause localized wear; it triggers unplanned downtime and catastrophic damage to the entire vertical shaft assembly. When the axial positioning drifts, the primary radial bearings absorb unintended loads, voiding their warranty and shortening their operational life. [NEED_CITE: cascading failure mechanisms in rotating equipment per ISO 15243] This systemic breakdown always costs significantly more than sourcing the correct verified component initially.

Securing Traceable Axial Components Across Multiple Brands

We maintain massive spot inventory covering thousands of standard and special part numbers, ensuring you get the exact bore code without typical multi-week lead times. Our technical selection support specifically targets suffix verification, preventing the costly mistake of installing a standard cage where a high-speed machined brass one is required. We provide complete traceability documentation for every KOYO, NTN, or NSK unit, and our global shipping consolidation handles mixed-brand packages efficiently for your MRO requirements.

Documentation & Authenticity

• Certificate of Conformity confirming P5 or P6 running accuracy tolerances.
• Original batch traceability documents linking the specific bore code to the factory heat number.
• Dimensional inspection reports verifying the single-row or double-row axial height limits.
• Material test certificates validating the stainless steel or standard steel variants.
• Official app QR verification for authenticating KOYO, NTN, and NSK branded units.

Storage, Handling & Mounting

• Keep the open-type components in their original anti-corrosion packaging until immediately before mounting to prevent surface oxidation.
• Use clean lint-free gloves when handling the P5 precision raceways to avoid acidic skin residue etching.
• Apply the specified external lubricant immediately after unpacking, as the open seal type lacks factory pre-greasing.
• Ensure mounting tools are dedicated to stainless steel variants to avoid cross-contamination from carbon steel particles.
• Verify the shaft shoulder squareness before pressing the shaft washer to prevent uneven axial load distribution.

Preparing Your Technical Parameters for Verification

To ensure the selected thrust component perfectly matches your vertical pump or crane hook application, please share the exact axial load, continuous operating temperature, and rotational speed. Providing the OEM equipment model number allows our engineering team to perform a precise cross-reference check and validate the required precision class. This data enables us to calculate the theoretical L10 life and recommend the optimal cage material and clearance configuration.

Frequently Asked Questions

Q: What does the “f1” suffix mean for the 51164f1 thrust ball bearing?

A: The f1 suffix is an unverified designation requiring direct manufacturer catalog confirmation. It typically indicates a specific internal design variation, such as a modified cage material or specialized clearance class. Always cross-check this exact suffix against your OEM equipment manual to ensure dimensional and operational compatibility before installation.

Q: How to choose between P0, P6, and P5 precision ratings for machine tool spindles?

A: Machine tool spindles demand high rotational accuracy and minimal axial runout, making P5 or P6 the standard choices. P0 is generally reserved for less critical, low-speed axial support applications where tight dimensional tolerances are not strictly required. Selecting the correct class prevents vibration transfer and ensures the machined surface finish meets engineering specifications.

Q: What are the advantages of stainless steel over standard bearing steel in thrust applications?

A: Stainless steel variants offer substantially higher corrosion resistance, making them ideal for vertical pumps handling aggressive fluids or marine crane hooks exposed to salt spray. While standard bearing steel provides higher load-carrying capacity, the stainless options prevent surface pitting and raceway degradation in humid or chemically active environments, thereby extending the operational service interval.

Q: How to verify the authenticity of KOYO/NTN/NSK bearings upon delivery?

A: Authenticity verification involves checking the original batch traceability documents and scanning the official app QR codes provided on the packaging. You should also cross-reference the physical marking on the raceway with the certificate of conformity. Requesting the manufacturer’s dimensional inspection report further ensures the component meets the specified P0, P6, or P5 precision standards.

Q: What is the recommended lubrication method for open-type thrust ball bearings?

A: Open-type designs require a continuous external lubrication circuit, typically utilizing oil bath, oil mist, or circulating oil systems depending on the rotational speed. Since they lack integrated seals, the external system must also filter out contaminants to prevent raceway abrasion. Proper lubrication ensures adequate film thickness to separate the rolling elements from the washers under heavy axial loads.
