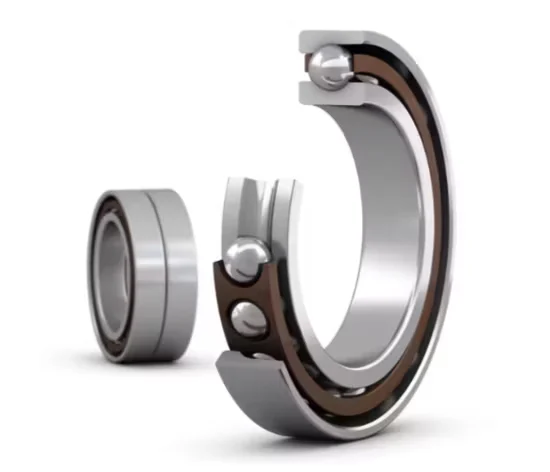

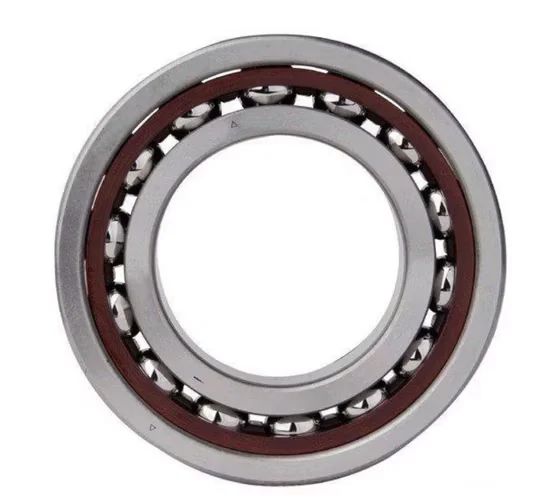

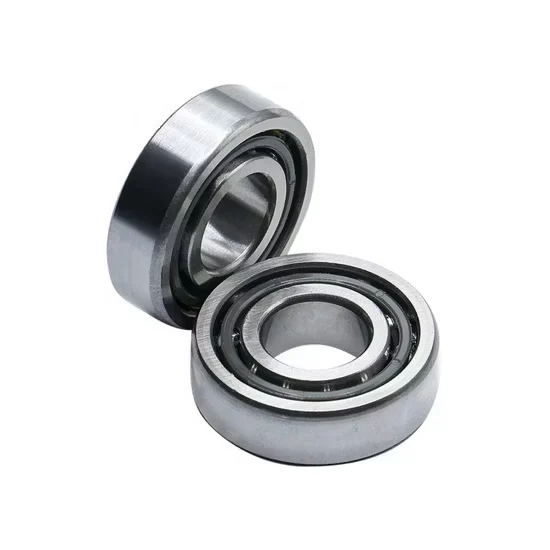

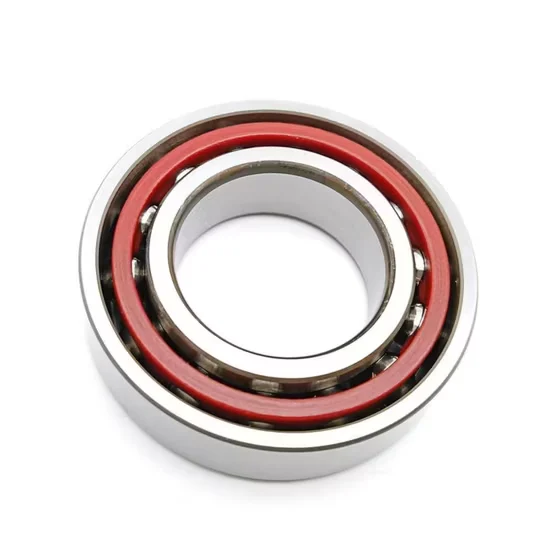

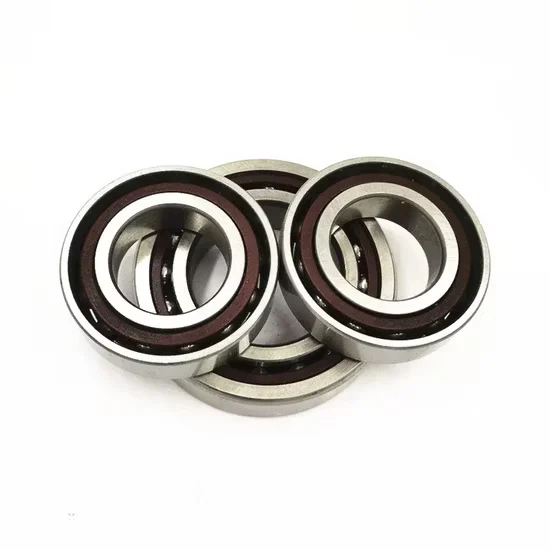

7206c Angular Contact Ball Bearing 30x55mm C3 AC High Speed Low Noise [WARN] draft identifier mismatch

Batch-Level Traceability — Every 7206c shipment includes original manufacturer lot documentation to verify metallurgical origin and precision grading.

Technical Specifications

Application Suitability

Why Spindle Thermal Runaway Destroys Perfectly Good KOYO NTN NSK 7206c angular contact ball bearing Units

Mismatched contact angle suffixes silently convert axial load capacity into destructive internal friction.

Early in my career handling export documentation in Ningbo, a single suffix typo on an angular contact bearing shipment caused a client’s machine tool spindle to overheat and seize. The physical dimensions were identical, but the internal geometry was entirely wrong for the application. Such oversights lead to catastrophic downtime rather than gradual wear, turning a simple maintenance task into a complete assembly rebuild. Procurement teams often focus solely on the base numeric code, ignoring the critical suffix characters that define internal load distribution and thermal behavior. [NEED_CITE: thermal instability mechanisms in high-speed spindle bearings]

Aligning Geometry with High-Speed Demands

When specifying a KOYO NTN NSK 7206c angular contact ball bearing for spindle applications, the polyamide cage and open seal configuration work together to minimize friction and allow flexible oil-air lubrication. High-speed machining environments demand components that can accelerate rapidly without generating excessive inertial heat. Our sourcing network ensures that whether you need a single emergency replacement or a consolidated project shipment, the exact suffix configuration matches your OEM blueprint without compromise, maintaining the delicate balance between rigidity and rotational freedom required for precision cutting operations.

Managing Thermal Expansion and Lubrication Starvation

High-speed spindles generate immense centrifugal forces and localized heat, demanding precise clearance selection to accommodate thermal expansion without losing preload. An open bearing design relies entirely on external lubrication systems; any interruption in the oil mist flow rapidly escalates cage temperatures and compromises the polyamide structure. Furthermore, combined radial and axial loads require the correct contact angle to prevent edge loading on the raceways. If the internal geometry does not perfectly align with the spindle’s operational envelope, microscopic skidding occurs, rapidly degrading the lubricant film and accelerating surface fatigue. [NEED_CITE: lubrication starvation effects on polyamide cage integrity]

Decoding Suffix Variations for Precision Fit

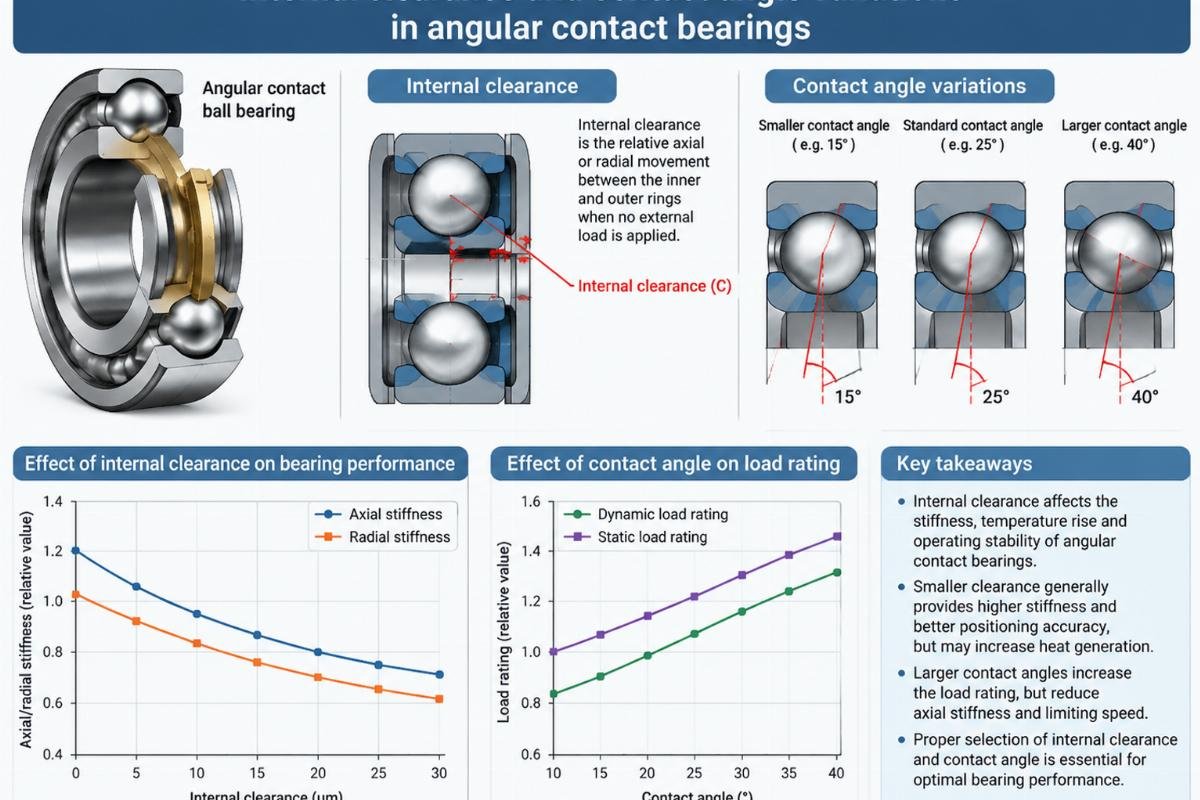

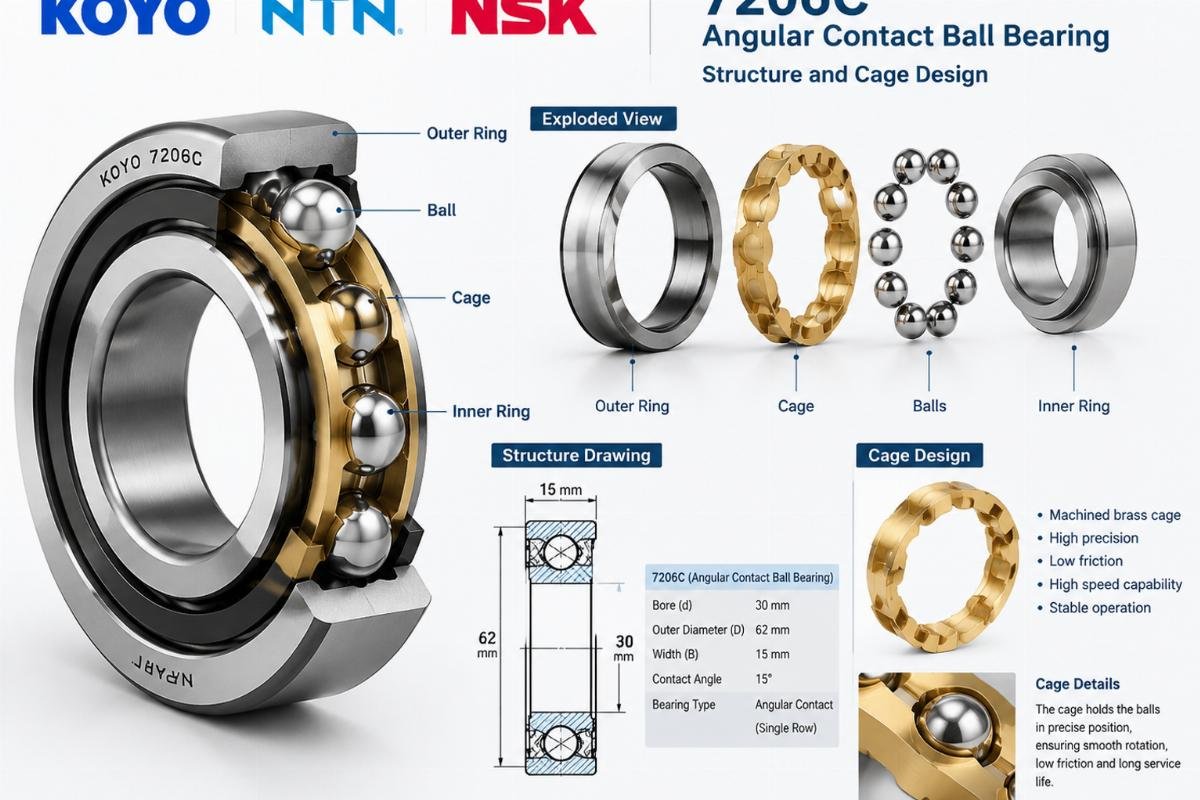

When decoding the suffix for a KOYO NTN NSK 7206c angular contact ball bearing, the designation directly dictates the internal load distribution. A ‘c’ designation indicates a 15° contact angle, optimizing for high-speed radial loads, whereas an ‘AC’ suffix provides a 25° angle for heavier axial thrust. Selecting a C3 clearance class provides the necessary internal gap to absorb thermal expansion during high-RPM operation, preventing the bearing from tightening internally and generating excess heat. The polyamide cage reduces weight and inertia, allowing faster acceleration compared to brass alternatives, while the open configuration ensures that heat generated at the contact ellipses is efficiently carried away by the external oil flow.

The Compounding Penalty of Suffix Misalignment

Installing a bearing with an incorrect contact angle or clearance class does not merely reduce lifespan; it triggers a cascade of mechanical failures that compromise the entire machine tool. Improper preload leads to skidding, which smears the raceway and rapidly degrades the lubricant, creating abrasive particles that circulate through the spindle housing. According to failure analysis frameworks, these installation and selection errors account for a significant share of premature seizures, ultimately voiding equipment warranties and causing unplanned production halts. The financial impact extends far beyond the replacement part, encompassing lost production hours, scrapped precision components, and extensive labor costs for spindle teardown and recalibration. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Securing Exact Configurations Across Global Brands

Sourcing mixed-brand packages often results in compromised suffix availability, but our inventory covers thousands of specific part numbers to ensure your exact KOYO NTN NSK 7206c angular contact ball bearing configuration is in stock. We provide complete traceability documentation for premium brands like KOYO, NTN, and NSK, eliminating the risk of counterfeit components in critical spindle applications. Our technical team cross-references equivalent models to prevent the exact type of contact angle mismatch that causes catastrophic spindle failures. By strictly verifying every suffix character against the original equipment manufacturer’s specifications, we ensure that the replacement part integrates perfectly into the existing assembly without requiring compensatory adjustments to the spindle housing or preload nuts.

Documentation & Authenticity

• Certificate of Conformity matching the specific 7206c batch and brand origin.
• Original manufacturer lot traceability reports verifying Gcr15 steel metallurgy.
• Dimensional and running accuracy inspection reports confirming clearance class.
• Official brand QR codes for batch-level authenticity verification upon receipt.

Storage, Handling & Mounting

• Store the open-type bearings in original packaging to prevent dust ingress before spindle assembly.
• Use clean, lint-free gloves when handling the polyamide cage to avoid surface contamination.
• Verify the C3 clearance with feeler gauges during mounting to ensure proper thermal expansion allowance.
• Apply the specified spindle oil immediately after unpacking to protect the Gcr15 raceways from flash rust.

Engineering Review for Spindle Integration

To ensure the selected variant perfectly matches your spindle design, please share your operational parameters including maximum RPM, axial and radial load profiles, and operating temperature ranges. Providing the OEM equipment model number allows our engineering team to perform a precise cross-reference check and verify the required contact angle and clearance class before dispatch. We also evaluate the existing lubrication system and sealing environment to confirm that the open-type configuration is appropriate for your specific maintenance protocols, ensuring long-term reliability and optimal cutting performance in your manufacturing facility.

Frequently Asked Questions

Q: How do I verify the authenticity of KOYO, NTN, or NSK angular contact ball bearings?

A: We supply original manufacturer lot traceability documentation and official brand QR codes for batch-level verification. You can scan these codes using the manufacturer’s official app upon receipt to confirm the metallurgical origin and precision grading of your specific 7206c shipment, ensuring complete authenticity for critical spindle applications.

Q: What are the critical cross-reference alignments for contact angle and clearance?

A: The contact angle suffix, such as ‘c’ for 15° or ‘AC’ for 25°, must exactly match the spindle’s axial load requirements. Additionally, the clearance class, like C3, must align with the thermal expansion characteristics of your application. We cross-reference these exact suffixes against OEM blueprints to prevent internal friction and premature failure.

Q: How do C3 clearance and 15° contact angles affect high-speed spindle performance?

A: A 15° contact angle optimizes the bearing for high-speed radial loads, minimizing internal friction. The C3 clearance provides the necessary internal gap to accommodate thermal expansion during high-RPM operation. Together, they prevent the bearing from tightening internally, ensuring stable rotation and preventing thermal runaway in precision machine tool spindles.

Q: What is the recommended lubrication approach for open-type polyamide cage bearings?

A: Open-type bearings with polyamide cages require a continuous external lubrication system, typically oil-air or oil mist, to manage heat and reduce friction at high speeds. Since they lack integrated seals, the external system must provide clean, filtered oil to prevent contamination while ensuring the cage and raceways remain adequately protected during continuous spindle operation.

Q: How to select the correct bearing arrangement for machine tool spindles?

A: Spindle arrangements typically use back-to-back or face-to-face configurations to manage combined loads and provide rigidity. The choice depends on the direction of the dominant axial load and the required moment stiffness. We recommend sharing your specific load profiles and OEM equipment numbers so our technical team can verify the optimal arrangement and preload requirements.
