7306AC Angular Contact Ball Bearing 30x72x19mm Wholesale Supplier [WARN] draft identifier mismatch

Official App QR Verification — Scan the unique QR code on each 7306AC angular contact ball bearing box to instantly confirm factory batch authenticity and trace the exact production date, ensuring complete transparency for your precision spindle assembly.

Technical Specifications

Application Suitability

Why Spindle Seizures Often Trace Back to a Single Suffix Letter

Mixing up contact angle suffixes during procurement turns a precision spindle into a friction furnace.

Years ago, a customs document typo swapped a 15° C-suffix for a 25° AC-suffix on a 7306AC angular contact ball bearing shipment to a Brazilian machine tool plant. The mismatched contact angle caused severe axial preload imbalance, leading to thermal expansion and complete spindle seizure within hours of operation. The maintenance team had to dismantle the entire headstock, resulting in weeks of lost production. That single-letter discrepancy taught me to cross-verify every suffix on the physical label against the packing list, ensuring the internal geometry perfectly matches the spindle design [NEED_CITE: bearing failure analysis related to incorrect internal geometry selection].

Matching the 25° Contact Angle to High-Speed Spindle Dynamics

The 7306AC angular contact ball bearing utilizes a 25° contact angle to balance radial and axial loads in high-speed machine tool spindles. This specific geometry prevents the inner ring from shifting under heavy axial thrust during aggressive milling operations. When the cutting tool engages the workpiece, the resulting axial force is safely transferred through the 25° contact line into the housing. Our global sourcing network ensures these exact AC-suffix units are dispatched from verified inventory, eliminating the risk of receiving mismatched C or B variants that compromise spindle rigidity and surface finish quality.

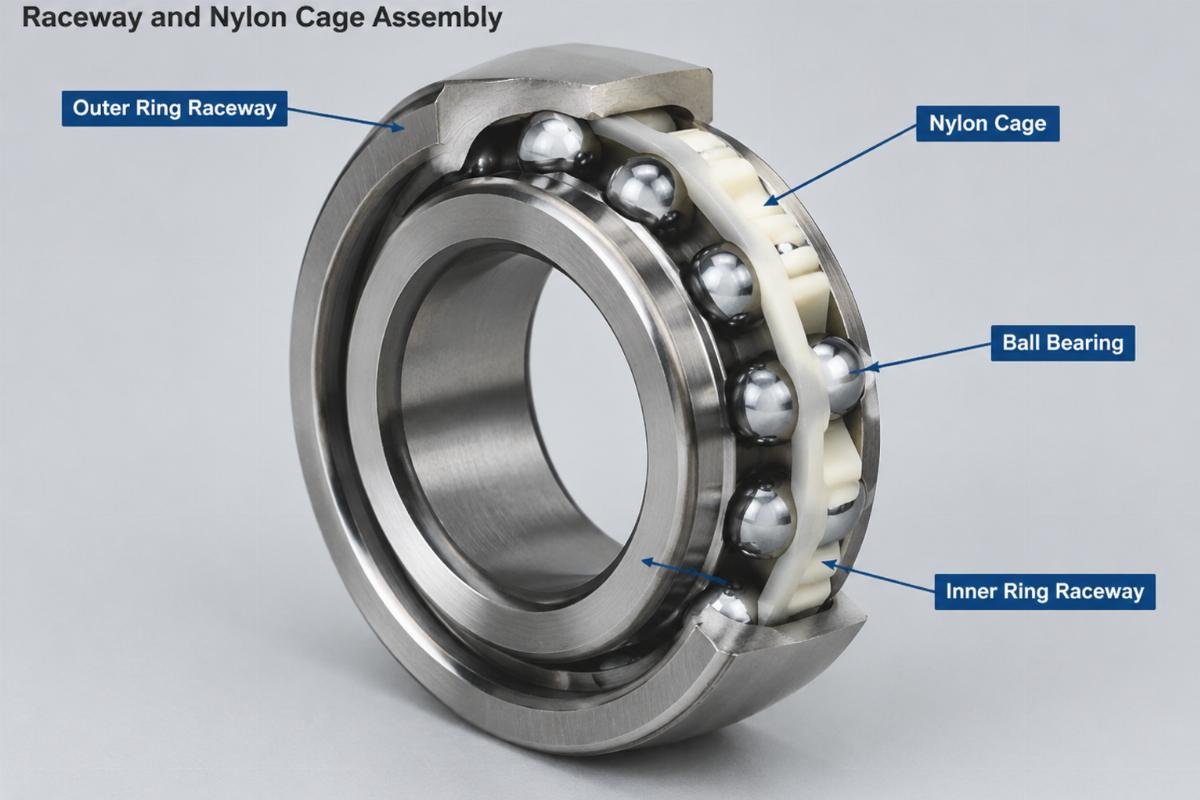

Navigating Thermal Expansion and Lubrication in Open Designs

High-speed rotation generates significant frictional heat, which directly impacts internal clearance and lubricant viscosity. An open seal design allows maintenance teams to select custom oil-air or oil-mist lubrication systems tailored to specific spindle thermal profiles. This flexibility is crucial because standard greases often churn and overheat at extreme RPMs. However, this openness demands strict contamination control in the machine housing, as even microscopic metal swarf can score the Gcr15 bearing steel raceways and initiate surface fatigue [NEED_CITE: lubrication and contamination effects on bearing service life]. Selecting the correct clearance class compensates for the thermal expansion differentials between the steel shaft and the housing, preventing the bearing from locking up as temperatures rise.

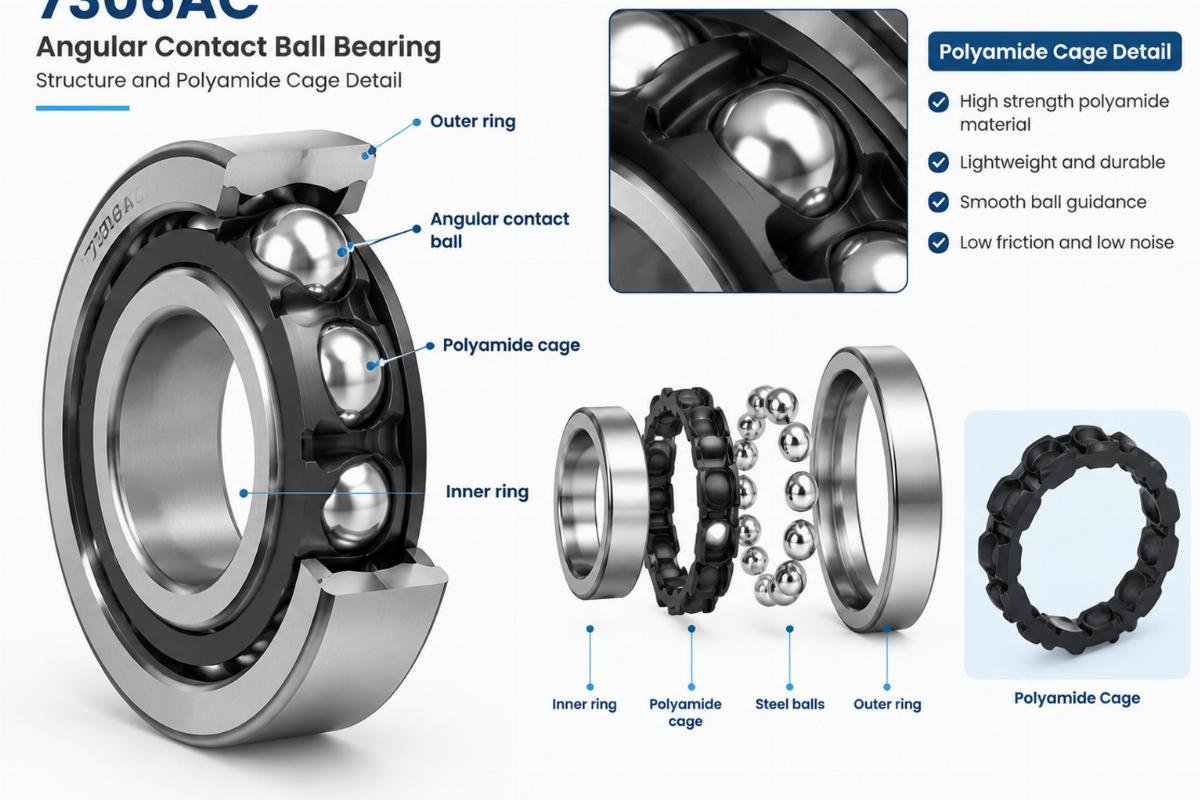

Decoding the Polyamide Cage and Vibration Grades

The polyamide (nylon) cage in this designation reduces weight and inertia, allowing faster acceleration and deceleration of the spindle during complex machining cycles. Unlike heavier brass cages, the polymer material operates quietly and maintains a stable oil film at elevated rotational speeds, minimizing vibration. Furthermore, the availability of V1 to V3 vibration grades ensures that the rotating assembly meets the strict dynamic balance requirements of precision grinding equipment. The single-row configuration means these units are typically mounted in sets to manage bidirectional thrust, requiring careful attention to the mounting arrangement marks and axial clamping forces during assembly to achieve the desired preload.

The Hidden Downtime Costs of Ignoring Suffix and Clearance Details

Procuring a basic model without verifying the AC suffix or the specific clearance class leads to catastrophic spindle failures. Incorrect internal geometry causes uneven load distribution, accelerating fatigue spalling on the raceways and generating excessive heat. According to failure mode classifications, such geometric mismatches result in premature wear, cage degradation, and unplanned machine downtime that far exceeds the initial component savings [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The cost of replacing a seized spindle shaft and damaged housing dwarfs the price of the bearing itself, making exact specification verification a critical procurement step.

Securing Traceability and Exact Suffix Alignment

Sourcing the exact 7306AC angular contact ball bearing requires more than just matching the basic numbers on a purchase order. We verify the AC suffix and polyamide cage specifications against original factory batch documents before dispatch, ensuring no substitution occurs. Our cross-reference database aligns equivalent models from premium global brands, ensuring the contact angle and dimensional tolerances match perfectly. With massive spot inventory covering thousands of part numbers, we consolidate mixed-brand orders into single shipments. This approach is backed by long-term technical support, where our engineers assist with failure analysis and preload adjustment if your spindle dynamics change.

Documentation & Authenticity

• Certificate of Conformity confirming the 25° contact angle and Gcr15 material grade.
• Original factory batch traceability documents linking the 7306AC angular contact ball bearing to its production date.
• Dimensional and running accuracy inspection reports verifying the 30x72x19mm tolerances.
• Material test certificates validating the chemical composition of the bearing steel and polyamide cage.

Storage, Handling & Mounting

• Store the open-type units in their original anti-corrosion packaging until the exact moment of spindle assembly.
• Use clean, lint-free gloves when handling the polyamide cage to prevent skin oils from degrading the polymer.
• Apply the specified spindle oil immediately after unboxing, as the open design lacks factory-applied grease.
• Verify the single-row mounting orientation marks to ensure the 25° contact angle faces the correct axial thrust direction.

Engineering Review for Your Spindle Application

To ensure the selected clearance class and vibration grade align with your specific spindle dynamics, please share your detailed operational parameters. Provide the maximum radial and axial loads, operating speeds, and thermal conditions for a comprehensive L10 life calculation. If replacing an existing unit, supply the OEM equipment number and the original manufacturer’s part number so our engineering team can perform a precise cross-reference verification. This technical review guarantees that the replacement unit integrates flawlessly into your existing machine tool architecture without requiring housing modifications.

Frequently Asked Questions

Q: What is the exact difference in axial load capacity between the 7306AC, 7306C, and 7306B variants?

A: The suffix dictates the contact angle, which directly controls axial load capacity. The C variant features a 15° angle for higher radial loads, the AC offers a 25° angle for balanced combined loading, and the B provides a 40° angle for heavy pure axial thrust. Selecting the wrong angle causes rapid preload loss and spindle seizure.

Q: How do I select the correct clearance class for high-speed machine tool spindles using this open bearing?

A: High-speed spindles generate significant frictional heat, causing the inner ring to expand more than the outer ring. A C3 or C4 clearance is often required to prevent the bearing from tightening and seizing under thermal growth. We recommend sharing your exact operating temperature and speed so our engineers can calculate the optimal residual clearance.

Q: What are the operational limits for the polyamide cage in high-temperature or chemical environments?

A: Polyamide cages offer excellent high-speed performance and low noise but have strict thermal and chemical boundaries. They degrade rapidly when exposed to certain synthetic lubricants or when operating continuously beyond their thermal limits. For extreme heat or aggressive chemical coolants, we can source equivalent models with machined brass or pressed steel cages.

Q: How should we handle lubrication and relubrication intervals for this open-type bearing during assembly?

A: Since this is an open design, it arrives without factory grease to prevent contamination. You must apply your specific spindle oil or grease immediately before mounting. The relubrication interval depends entirely on your oil-air or oil-mist system’s flow rate and the spindle’s rotational speed, requiring a customized maintenance schedule based on your machine’s OEM guidelines.

Q: When cross-replacing multiple brands, how do we ensure the suffix meanings and precision classes align perfectly?

A: Suffix conventions vary significantly between manufacturers; one brand’s AC equivalent might use a different letter combination for the 25° angle. Our engineering team cross-references the exact contact angle, cage material, and precision class against the original OEM specifications. We provide full dimensional and running accuracy reports to guarantee seamless integration into your existing spindle housing.
