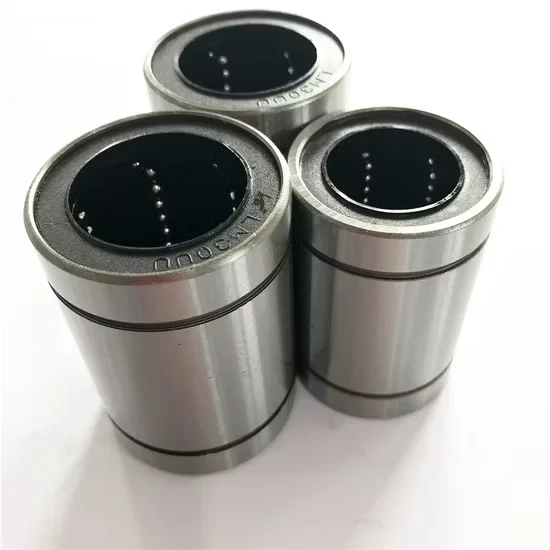

High Precision Lm10uu to Lm35uu Linear Bearings for Machinery [WARN] draft identifier mismatch

Cross-Reference Alignment — verifying dimension, HRC 60-64 hardness, and cage material ensures exact interchangeability across OZD, KOYO, NTN, and NSK linear bearing models.

Technical Specifications

Application Suitability

Why Hardness and Cage Selection Dictate KOYO NTN NSK Lm10uu linear bearing Longevity

Surface hardness and cage friction determine whether a linear bearing survives continuous high-speed traversal or fails from premature shaft scoring.

In dusty Middle Eastern automation setups, I have seen recirculating balls seize and severely score the shaft simply because the sealing was inadequate for the environment. When particulate ingress combines with insufficient lubrication, the resulting catastrophic damage halts the entire production line, causing massive financial losses. Replacing a scored shaft is far more expensive than selecting the correct sealed bearing initially. [NEED_CITE: linear bearing failure mechanisms under contaminated operating conditions]

Matching Linear Motion Components to Automated Machinery

Sourcing a reliable KOYO NTN NSK Lm10uu linear bearing requires matching the exact travel speed and load profile of your CNC or robotic application. Our global supply network consolidates mixed-brand and mixed-size packages, allowing you to procure genuine replacements for an entire automated cell without coordinating multiple vendors. This coordinated approach ensures consistent linear motion performance across all axes.

Managing Dust, Load, and Lubrication in Harsh Environments

Linear motion systems in machine tools face combined radial and moment loads while operating at high traversal speeds. In environments with heavy metallic dust or airborne particulates, inadequate sealing allows contaminants to breach the ball recirculation path. Proper lubrication intervals are critical; without them, friction generates excessive heat and accelerates wear on the hardened surfaces. Selecting the correct seal type and maintaining strict contamination control prevents unexpected seizure and extends the operational lifespan of the entire linear guide assembly. [NEED_CITE: impact of particulate contamination on rolling element fatigue life]

Decoding Cage Materials and Hardness Ratings

The specified HRC 60-64 hardness ensures the load-bearing plates and recirculating balls resist deformation under heavy localized stresses. Cage material selection directly influences operational noise and speed limits. Steel cages offer durable structural integrity for heavy-load, low-speed applications, while nylon cages reduce friction and noise during high-speed traversals. Copper cages provide an intermediate balance, often preferred in environments requiring better thermal conductivity. Understanding these material options allows engineers to align the bearing internals with the specific dynamic requirements of the machinery, ensuring optimal performance and longevity.

The Operational Toll of Mismatched Linear Bearings

Specifying a linear bearing with an incompatible cage or insufficient hardness rating leads to unplanned downtime and premature failure. When recirculating elements degrade, they can score the mating shaft, resulting in catastrophic damage that requires replacing the entire linear guide assembly. According to failure mode classifications outlined in ISO 15243, surface distress and smearing are common consequences of inadequate lubrication or contamination. Avoiding these issues requires precise alignment of the bearing specifications with the actual operating envelope. [NEED_CITE: rolling bearing damage classification per ISO 15243]

Securing Genuine Linear Motion Components

Procuring authentic linear bearings demands rigorous verification, especially when mixing brands like OZD, KOYO, NTN, and NSK in a single shipment. We provide complete traceability documentation for every unit, ensuring the HRC 60-64 hardness and cage materials match the original manufacturer specifications. Our massive spot inventory covers thousands of standard part numbers, enabling rapid dispatch for urgent maintenance requirements. Furthermore, our technical team offers cross-brand equivalent model consultation to verify dimensional interchangeability before shipment. This comprehensive support eliminates the risk of receiving counterfeit or substandard components, safeguarding your production uptime.

Documentation & Authenticity

• Certificate of Conformity verifying the HRC 60-64 hardness and dimensional tolerances for each batch.
• Original manufacturer batch traceability records linking the specific linear bearing to its production run.
• Official brand app QR verification to confirm the authenticity of KOYO, NTN, and NSK units.
• Material inspection reports validating the steel, copper, or nylon cage composition.
• Dimensional and running accuracy inspection reports confirming precise inner bore and outer diameter tolerances.

Storage, Handling & Mounting

• Store the linear bearings in their original sealed packaging to prevent moisture ingress and protect the HRC 60-64 hardened surfaces from corrosion.
• Maintain a stable storage temperature away from direct sunlight to preserve the integrity of nylon cage components.
• Wear clean lint-free gloves during handling to avoid transferring skin oils onto the precision-ground shaft mating surfaces.
• Apply the recommended lubricant immediately after unsealing if the bearing is an open type without factory-applied grease.
• Ensure the shaft surface is perfectly clean and free of burrs before sliding the bearing on to prevent scoring the recirculating balls.

Preparing Your Technical Requirements

To ensure optimal selection for your KOYO NTN NSK Lm10uu linear bearing application, please provide the specific radial and moment loads, traversal speeds, and operating temperatures. Sharing the OEM equipment model number allows our engineering team to perform an accurate cross-reference and verify dimensional compatibility. Additionally, detailing the environmental conditions, such as dust exposure or washdown requirements, helps us recommend the most suitable seal and cage configuration.

Frequently Asked Questions

Q: How can I verify the authenticity of the linear bearings before installation?

A: You can verify authenticity by scanning the QR code on the packaging using the official manufacturer app for brands like KOYO, NTN, and NSK. Additionally, we provide original batch traceability documents and a Certificate of Conformity that confirm the HRC 60-64 hardness and material specifications. This multi-layered verification ensures you receive genuine components for your machinery.

Q: What are the differences between steel, copper, and nylon cages in these linear bearings?

A: Steel cages provide maximum structural strength for heavy-load applications, while nylon cages significantly reduce friction and operational noise at higher speeds. Copper cages offer a balanced alternative with enhanced thermal conductivity, making them suitable for environments with moderate heat generation. Selecting the right cage material depends on your specific speed, load, and temperature requirements.

Q: How do I cross-reference these linear bearings with other brands?

A: Cross-referencing requires verifying three critical parameters: the exact outer and inner dimensions, the HRC 60-64 hardness rating, and the cage material configuration. Our technical team assists in aligning these specifications across OZD, KOYO, NTN, and NSK to ensure direct interchangeability. Always confirm the suffix designations to guarantee the sealing and clearance match your original equipment.

Q: What causes premature failure in linear bearings operating in dusty environments?

A: Premature failure in dusty conditions typically occurs when particulate contamination breaches the sealing system and enters the ball recirculation path. This contamination disrupts the lubrication film, leading to increased friction, surface scoring, and eventual seizure of the recirculating balls. Implementing adequate external sealing and adhering to strict relubrication schedules are essential to mitigate these risks.

Q: Is the Lm10uu suffix universally standardized across all manufacturers?

A: While the basic dimensional envelope for the Lm10uu series is generally standardized, specific suffix designations indicating seal types or clearance classes can vary between manufacturers. Some suffix variations may remain unverified without consulting the specific manufacturer catalog. We always recommend confirming the exact suffix meaning and cross-referencing the technical drawings before finalizing your procurement.
