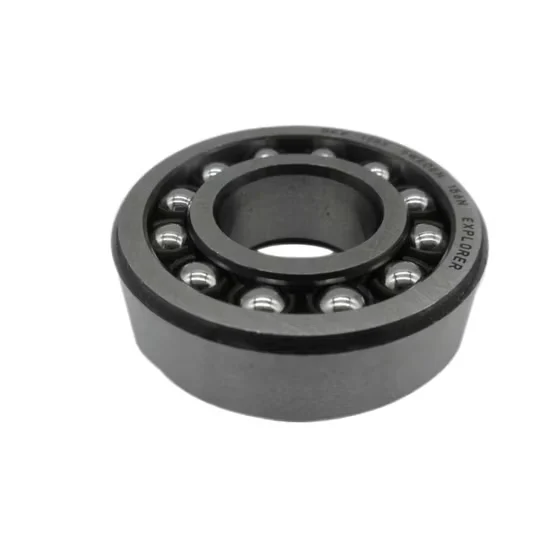

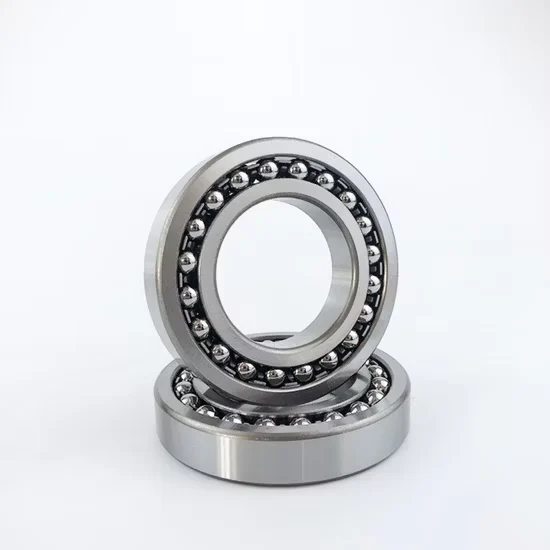

High Precision Open Self-Aligning Ball Bearings for Railway Use

Verified Authenticity Guaranteed — Every high precision open self-aligning ball bearing shipment includes official QR codes for instant origin validation.

Technical Specifications

Application Suitability

Why Railway Bogies Fail When Clearances Are Ignored by Your high precision open self-aligning ball bearing supplier

Thermal expansion in tropical climates rapidly eliminates standard internal clearances, leading to catastrophic rotor seizure.

Sourcing components for critical transit infrastructure demands strict attention to thermal dynamics and operational variables. I learned this the hard way on a Vietnamese railway project years ago; specifying standard clearance instead of C3 for high-RPM applications in extreme heat caused the bearings to seize and burn the rotor. Selecting the right high precision open self-aligning ball bearing supplier ensures these environmental factors are carefully matched to the specific application, preventing devastating mechanical failures and costly project delays. [NEED_CITE: thermal expansion effects on internal bearing clearance]

Matching Self-Aligning Capabilities to Track Irregularities

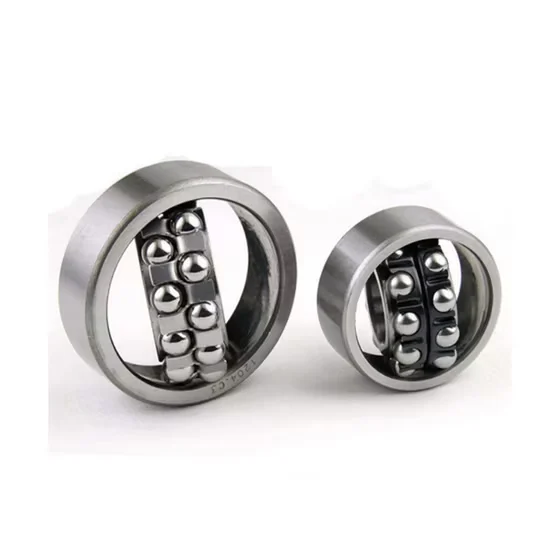

Railway networks and heavy agricultural machinery subject rolling elements to continuous shaft deflection and structural misalignment. The high precision open self-aligning ball bearing supplier provides double-row configurations where the inner ring and ball assembly align freely relative to the outer ring. This inherent design compensates for mounting errors, housing inaccuracies, and shaft bending under load. By accommodating these dynamic misalignments, the components ensure smooth operation and significantly reduce edge-loading stresses even under heavy dynamic track loads.

Managing Heat, Dust, and Heavy Radial Loads

Open designs facilitate superior heat dissipation, which is absolutely critical when friction generates excessive thermal energy at high rotational speeds. However, the absence of integrated seals exposes the precision raceways to abrasive dust, agricultural chaff, and moisture common in railway and farming environments. Engineers must implement customized external lubrication strategies and protective housings to prevent contaminant ingress. Operating temperatures significantly dictate the required internal clearance class to prevent binding, making thermal management a primary design consideration. [NEED_CITE: lubrication and sealing strategies for open bearing designs]

Decoding Material and Precision Options for Demanding Environments

Selecting the optimal configuration requires balancing material properties against environmental exposure. While standard chrome steel Gcr15 / 100cr6 offers excellent fatigue life for general manufacturing, stainless steel or ceramic variants are available for corrosive or high-temperature railway applications. High precision classes minimize vibration and noise, which is vital for passenger comfort and structural integrity in transit systems. The double-row arrangement provides enhanced radial load capacity compared to single-row alternatives, making it highly suitable for heavy machinery and demanding MRO replacements.

The Cascading Impact of Misapplied Components

Failing to account for thermal expansion or misalignment tolerances leads to premature fatigue and catastrophic equipment damage. According to established failure analysis frameworks, a significant share of premature failures stems from improper clearance selection or inadequate lubrication rather than inherent material defects. Unplanned downtime on a busy railway line or a continuous harvester incurs massive financial penalties and immediately voids warranty claims. Proper application engineering and rigorous specification reviews prevent these compounding operational losses. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Securing Traceability and Technical Alignment

Our engineering team cross-references your specific thermal and load parameters to recommend the exact clearance and material variant needed. We provide complete traceability documentation for every Gcr15 batch, ensuring the chrome steel meets stringent metallurgical standards. Unlike generic vendors, we consolidate mixed-brand and mixed-size packages for your complex MRO and project requirements. We also offer cross-brand equivalent model consultation to replace discontinued OEM parts without compromising system integrity, ensuring long-term reliability for your critical infrastructure.

Documentation & Authenticity

• Certificate of Conformity verifying Gcr15 / 100cr6 metallurgical composition for each batch.
• Official QR codes enabling instant digital verification of origin and manufacturing date.
• Dimensional and running accuracy inspection reports confirming high precision tolerances before dispatch.
• Full traceability logs linking the double-row assembly back to the specific forging facility.

Storage, Handling & Mounting

• Store the open double-row units in original moisture-barrier packaging until immediately before mounting to prevent raceway corrosion.
• Use induction heaters for cylindrical bore installations, strictly monitoring temperature to preserve the high precision raceway geometry.
• Apply the specified external grease immediately after unsealing, as the open design lacks factory pre-lubrication.
• Wear lint-free clean gloves during handling to prevent skin acids from etching the exposed Gcr15 chrome steel surfaces.

Engineering Review and Selection Support

To ensure optimal performance and longevity, please provide your equipment model, available mounting space, and specific radial and axial load profiles. Detail the operating environment, including ambient temperature ranges and exposure to dust or moisture, so our team can determine the correct internal clearance and material variant. Sharing these operational parameters allows us to perform a comprehensive technical review and recommend the exact configuration optimized for your specific railway or agricultural application.

Frequently Asked Questions

Q: How do I determine the exact standard designation based on my equipment parameters?

A: Provide your operational data, including rotational speed, radial and axial loads, and ambient temperature. Our engineering team will calculate the required dynamic load rating and thermal expansion factors to identify the precise double-row configuration and internal clearance class needed for your specific railway or agricultural machinery application.

Q: What are the common failure modes in railway applications?

A: Premature failures typically result from inadequate internal clearance leading to thermal seizure, or contaminant ingress in open designs. Misalignment beyond the self-aligning capacity also causes uneven load distribution and early fatigue. Proper housing design and external sealing are critical to mitigate these risks in transit environments.

Q: How do I choose between open, shielded, and sealed designs?

A: Open designs are ideal for high-speed or high-temperature environments requiring efficient heat dissipation and customized external lubrication. Shielded or sealed variants are better suited for applications with heavy dust or moisture where maintenance access is limited. Your choice depends on the operating temperature and the feasibility of regular relubrication.

Q: What is the recommended maintenance cycle for open bearings?

A: Maintenance intervals depend heavily on operating speed, load, and environmental contamination levels. Since open designs lack integrated seals, they require regular external relubrication to flush out abrasive particles and maintain the protective oil film. Establish a condition-based monitoring schedule using vibration analysis to optimize your grease replenishment cycles.

Q: How can I source reliable replacements when OEM parts are discontinued?

A: Share the original equipment manufacturer part number and detailed application parameters with our technical team. We provide cross-reference consultation to identify equivalent models from premium global brands or reliable domestic lines, ensuring the replacement matches the required load capacity, precision class, and dimensional envelope.
