Digital QR Traceability — Each HK 1812 drawn cup needle roller bearing shipped from our inventory carries scannable manufacturer QR tags for instant batch authentication.

Technical Specifications

Application Suitability

Why Full-Complement Designs Fail When Vibration Spikes in HK 1812 Needle Roller Bearing Assemblies

Missing cage retention turns extreme radial shocks into immediate roller skewing and catastrophic raceway spalling.

Sourcing mixed-brand packages often overlooks how full-complement drawn cup bearings behave under high-frequency vibration. I learned this the hard way early in my career when a German assembly line halted completely because the rollers skewed and chewed up the shaft. Without a cage to separate the rolling elements, metal-to-metal friction generates rapid heat, making proper application matching critical. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Aligning the HK 1812 Needle Roller Bearing with Compact Radial Load Demands

When space constraints dictate a minimal cross-section, the HK 1812 needle roller bearing delivers maximum radial load capacity within a tight 18x24x12mm envelope. Our engineering team cross-references your housing tolerances to ensure the thin drawn cup seats perfectly without collapsing during press-fitting. This precise matching prevents the outer ring from ovalizing under peak operational loads.

Navigating Thermal Expansion and Lubrication Starvation in Drawn Cup Housings

Thin-walled drawn cup designs are highly susceptible to housing distortion, which directly alters internal clearance and restricts lubricant flow. In gear pumps or automotive transmissions, inadequate grease distribution leads to localized overheating and premature roller wear. Ensuring the housing bore meets strict roundness tolerances is just as vital as selecting the right precision class. Proper initial lubrication must reach every rolling element before the first rotation to prevent dry-start scoring. [NEED_CITE: influence of housing rigidity on drawn cup bearing performance]

Decoding the HK Prefix and Full-Complement Roller Arrangement

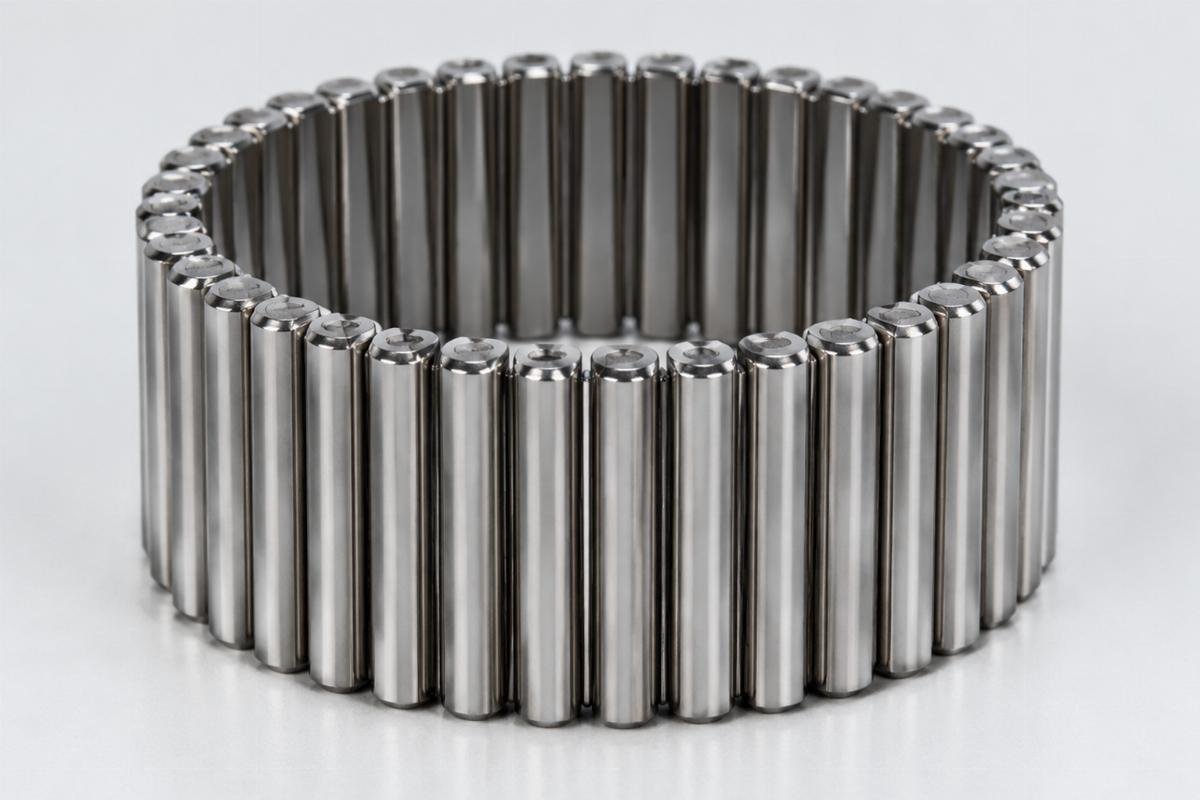

The “HK” designation specifically identifies a drawn cup outer ring with open ends, optimized for high-volume radial loads in compact spaces. Because this configuration operates without a cage, it packs the maximum number of needles into the available cross-section, significantly boosting static load capacity. The standard chrome steel construction provides excellent load capacity, while stainless steel variants are available for applications exposed to moisture or mild corrosion. However, the absence of a cage means it cannot handle high-speed applications where roller-to-roller friction becomes a limiting factor. The available P0, P6, and P5 precision classes allow buyers to balance cost against the strict rotational accuracy required for textile machinery or precision pumps.

The Cascading Impact of Ignoring Housing Tolerances and Speed Limits

Deploying a full-complement drawn cup bearing beyond its thermal speed limit inevitably triggers catastrophic cage-less roller skewing and severe shaft scoring. When engineers ignore housing bore roundness, the thin outer ring distorts, creating localized stress concentrations that drastically shorten fatigue life. These premature failures often cascade into adjacent gears and seals, resulting in extensive unplanned downtime and voided equipment warranties. Adhering to installation guidelines outlined in ISO 281 is essential to avoid these compounding mechanical disasters. [NEED_CITE: bearing life calculation methods per ISO 281]

Securing Genuine Traceability for Critical Drawn Cup Components

Sourcing genuine HK-series bearings requires strict verification, as counterfeit drawn cups often use inferior steel that collapses under press-fitting. We provide complete batch traceability documentation for every KOYO, NTN, NSK, or OZD unit we supply, ensuring the chrome steel meets original metallurgical standards. Our massive spot inventory covers thousands of standard part numbers, allowing us to fulfill urgent MRO replacements without typical multi-week delays. Furthermore, our technical team provides cross-brand equivalent model consultation if your preferred brand faces allocation shortages. We also offer flexible consolidation shipping, mixing single-unit emergency spares with full-container project orders to optimize your freight costs.

Documentation & Authenticity

• Certificate of Conformity verifying the exact P0, P6, or P5 precision class of your specific batch.
• Original batch traceability logs linking the HK 1812 outer ring stamping to the manufacturer’s production facilities.
• Material inspection reports confirming the chrome steel hardness and metallurgical purity for drawn cup integrity.
• Dimensional spot-check records validating the 18x24x12mm envelope before the bearings leave our warehouse.
• Official scannable QR tags attached to individual packaging for instant digital authentication upon receipt.

Storage, Handling & Mounting

• Keep the original anti-corrosion wrapping intact until press-fitting to protect the thin drawn cup outer ring from ambient humidity.
• Use a dedicated mandrel and arbor press for installation; hammering will instantly ovalize the 24mm outer diameter.
• Apply clean lint-free gloves when handling the full-complement rollers to prevent skin acids from etching the chrome steel.
• Ensure the housing bore is strictly cylindrical, as any taper will distort the open-ended HK design and cause roller binding.
• Pre-lubricate the needle rollers thoroughly before initial startup, since the cage-less design relies entirely on external grease circulation.

Preparing Your Technical Parameters for Accurate Selection

To ensure the selected drawn cup bearing survives your specific operating environment, please share your radial load profiles, operational speeds, and housing bore tolerances. Providing the original OEM equipment number allows our engineers to perform precise cross-reference checks and verify dimensional compatibility. If your application involves extreme temperatures or corrosive elements, detail these conditions so we can evaluate alternative material options or sealed variants.

Frequently Asked Questions

Q: How can I verify the authenticity of KOYO, NTN, or NSK needle roller bearings?

A: We supply original batch traceability documentation and manufacturer QR codes with every order. You can scan these tags using the official brand applications to instantly verify the production date, factory origin, and precision class. This digital authentication prevents the installation of counterfeit drawn cups that often fail during press-fitting.

Q: What is the difference between HK and BK drawn cup needle roller bearings?

A: The HK prefix designates an open-ended drawn cup bearing, while BK indicates a closed-end design with a sealed bottom. Open-ended HK models are ideal for through-shaft applications, whereas closed BK variants protect the shaft end from contamination. Choosing the correct style depends entirely on your housing geometry and sealing requirements.

Q: How do I select the right precision class for my application?

A: Standard P0 class is sufficient for general automotive transmissions and basic pumps where extreme rotational accuracy is not critical. For high-speed textile machinery or precision compressors, upgrading to P6 or P5 ensures tighter dimensional tolerances and smoother operation. Our engineering team can review your speed and load data to recommend the optimal grade.

Q: What are the cross-reference equivalents for this drawn cup bearing?

A: While the HK 1812 designation is widely recognized, equivalent models from different manufacturers may feature slight variations in edge profiles or surface treatments. We provide comprehensive cross-reference consultation to match your current setup with available alternatives from premium global brands. Always verify the exact housing tolerances before substituting to ensure a secure press-fit.

Q: How should I install drawn cup bearings without damaging the outer ring?

A: Never hammer the bearing directly, as the thin drawn cup will easily deform and cause roller binding. Always use a specialized installation mandrel that applies force exclusively to the outer ring end face. Press the bearing slowly into a strictly cylindrical housing bore to maintain the precise outside diameter and preserve internal clearance.
