Premium brands do not guarantee IE4/IE5 compatibility; standard series fail under VFD without insulation.

Selecting bearings for IE4 and IE5 motors requires prioritizing insulation and anti-axial current capabilities over brand names to prevent VFD-induced failures. The core argument is that high-efficiency motors need electrical insulation as much as low mechanical friction. Without specific insulated bearings for IE5 motors or VFD duty bearings for IE4 motors, the axial currents generated by variable frequency drives will destroy uninsulated raceways regardless of the bearing manufacturer’s reputation.

I still remember the smell of burnt varnish in a Ningbo factory workshop. A batch of IE4 high-efficiency motors had been assembled with standard deep groove ball bearings. The procurement team had chosen a well-known international brand, assuming the label alone ensured quality. When the inverters were switched on during testing, the axial currents found their path through the steel balls. Within hours, the raceways developed severe pitting. The entire batch was rejected at the client site. That incident shifted my focus from mere brand sourcing to rigorous technical verification of insulation coatings and grease conductivity. Now, when I evaluate Energy-Efficient Motor Bearings for IE4 and IE5 Motors, I look past the logo to the electrical specifications.

Understanding why standard components fail is the first step in securing reliable supply chains for high-efficiency applications.

Why Standard Bearings Fail in IE4/IE5 Motors?

VFDs induce axial currents that destroy uninsulated raceways.

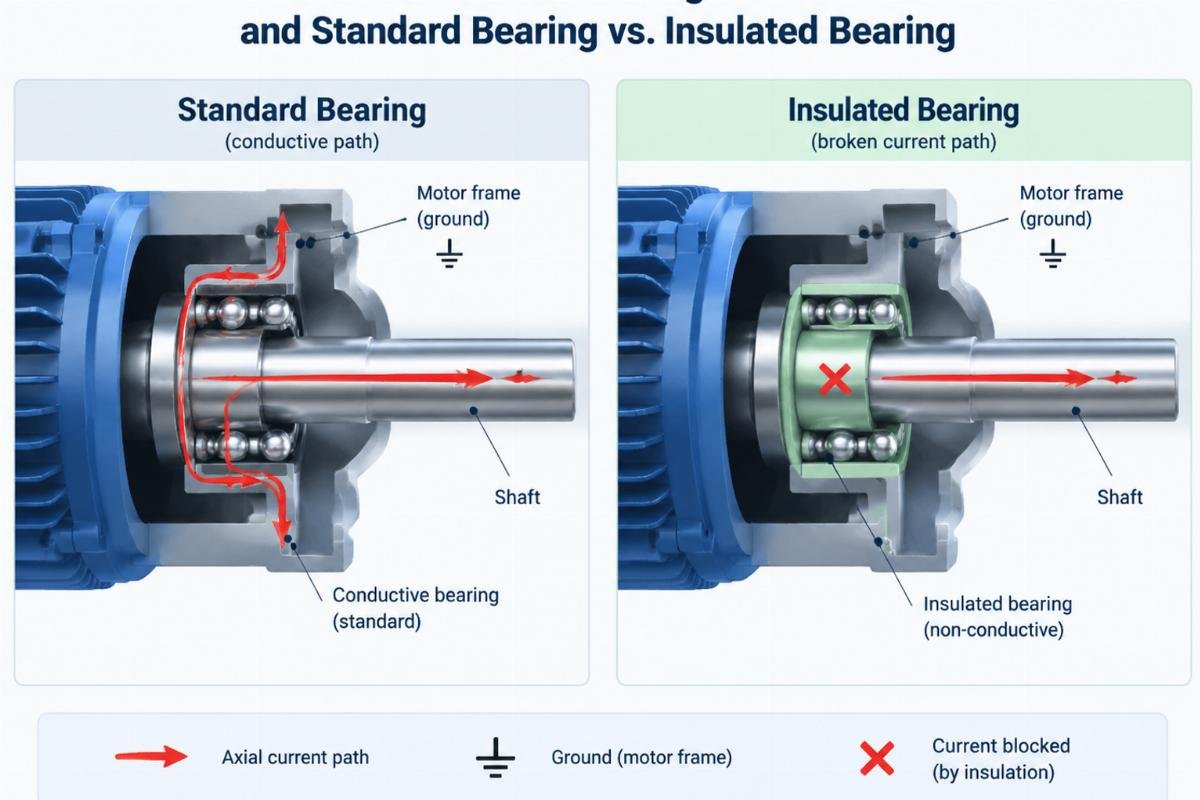

The shift to IE4 and IE5 efficiency standards involves tighter air gaps and optimized magnetic circuits. While these designs reduce mechanical losses, they often increase the coupling between the stator and rotor. When paired with Variable Frequency Drives (VFDs), which use high-speed switching to control motor speed, common-mode voltages are generated. These voltages seek the path of least resistance to ground, often traveling through the motor shaft and bearings.

In a standard bearing, the metal-to-metal contact between the rolling elements and the raceways provides a conductive path. When the voltage exceeds the dielectric strength of the lubricant film, micro-arcing occurs. This phenomenon, known as Electrical Discharge Machining (EDM), creates small craters on the raceway surface. Over time, these craters merge into fluting patterns, leading to vibration, noise, and eventual catastrophic failure. [NEED_CITE: mechanism of EDM damage in motor bearings per IEEE standards]

Many distributors assume that a higher precision grade, such as P5 or P4, offers protection against electrical damage. This is a dangerous misconception. Precision relates to dimensional tolerances and running accuracy, not electrical insulation. A P5 precision bearing without insulation features will fail just as quickly as a P0 grade one under heavy VFD stress. The solution lies in breaking the electrical circuit. This is achieved through insulated bearings for IE5 motors or specialized hybrid designs that incorporate non-conductive materials.

For buyers sourcing Energy-Efficient Motor Bearings for IE4 and IE5 Motors, it is critical to recognize that mechanical durability and electrical resilience are separate requirements. A bearing can be mechanically perfect yet electrically vulnerable. The failure mode is not gradual wear but sudden surface degradation caused by electrical erosion. Identifying this risk early prevents costly field replacements and protects the reputation of OEMs who specify these components.

Insulated vs. Ceramic vs. Standard: Which Suits Your IE5 Motor?

Matrix comparing coating thickness, voltage limits, and cost reveals the optimal choice for VFD applications.

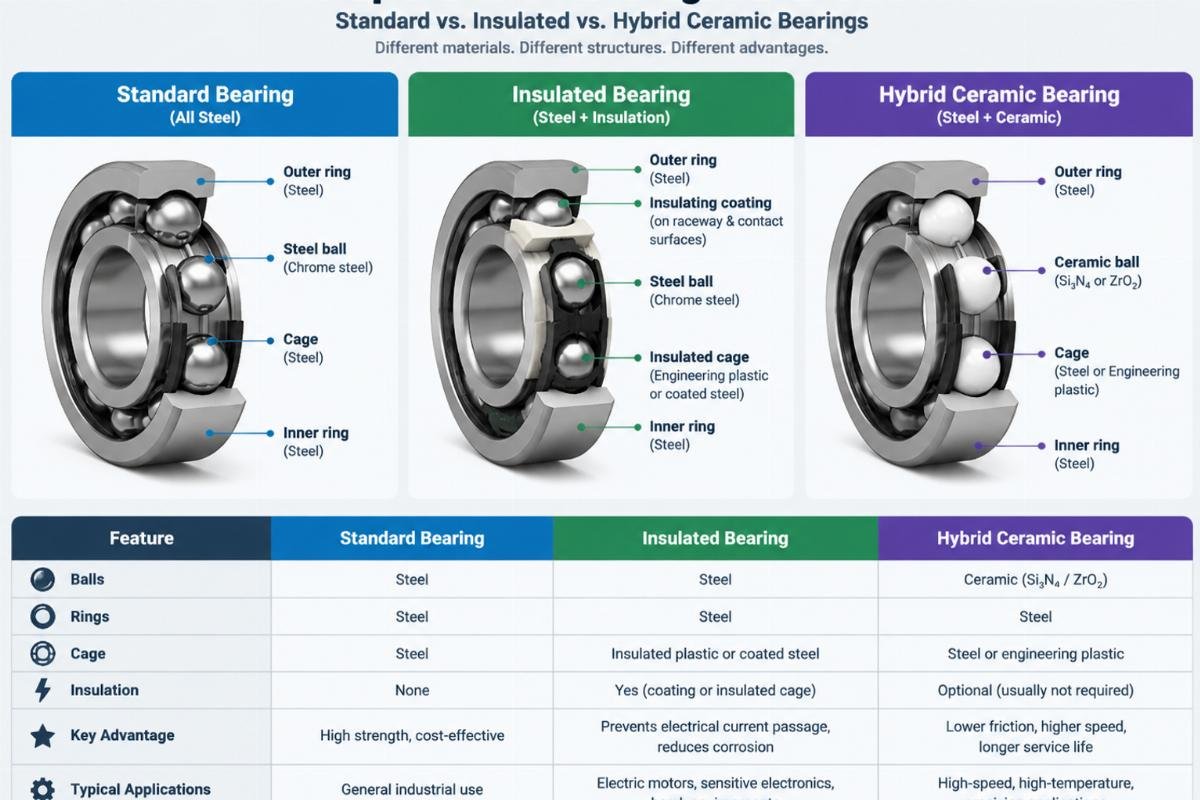

When selecting VFD duty bearings for IE4 motors, engineers often debate between three main options: standard steel bearings, insulated coated bearings, and hybrid ceramic bearings. Each has distinct characteristics regarding voltage breakdown thresholds and cost implications. Understanding these differences is essential for making informed purchasing decisions.

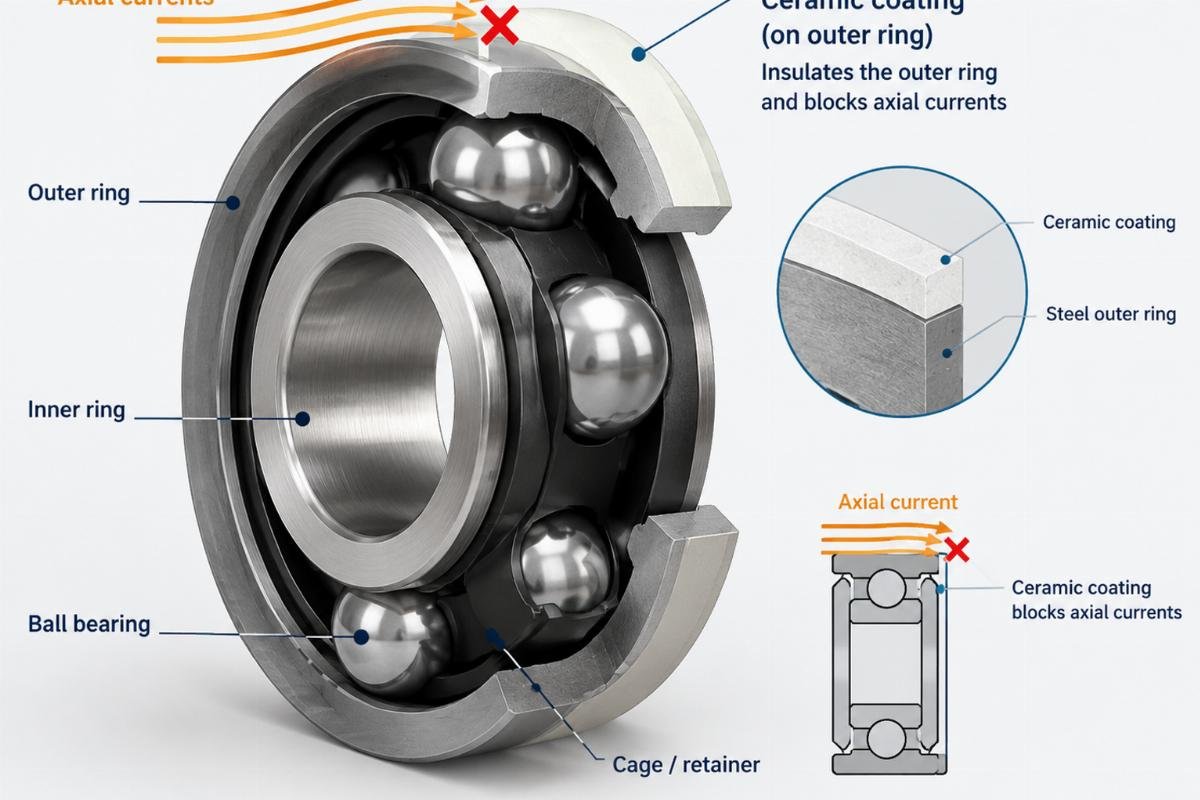

Standard bearings are the most economical but offer no protection against axial currents. They are suitable only for direct-on-line starting motors without VFDs. In high-efficiency applications, their use is a significant risk. Insulated bearings typically feature a ceramic or polymer coating on the outer or inner ring. This coating acts as a capacitor, blocking DC and low-frequency AC currents while allowing high-frequency noise to dissipate safely if properly grounded elsewhere. Hybrid bearings use silicon nitride ceramic rolling elements instead of steel. Since ceramic is an insulator, it completely breaks the electrical path.

[NEED_CITE: comparative performance data of insulated vs hybrid bearings in VFD applications]

The choice often depends on the severity of the VFD output. For moderate VFD usage, insulated bearings provide a cost-effective solution. The coating must be robust enough to withstand the expected voltage spikes. If the application involves high-power inverters or frequent switching, hybrid ceramic bearings offer superior reliability. Although more expensive, they eliminate the risk of coating wear over time, which can occur in insulated steel bearings under heavy mechanical load.

Sourcing Energy-Efficient Motor Bearings for IE4 and IE5 Motors requires balancing these technical factors with budget constraints. A European wind farm operator once replaced standard bearings with hybrid ceramics after repeated failures. The initial cost was higher, but the reduction in downtime and maintenance visits justified the investment. For distributors, offering a range of options allows customers to select the right level of protection for their specific operating conditions.

How to Verify Insulation and Grease Specs Before Ordering?

Demand traceable test reports and specific resistivity data to ensure VFD compatibility.

Verifying the authenticity and specification of insulated bearings is challenging in a global market where counterfeits exist. Many suppliers claim their products are suitable for VFD applications without providing concrete evidence. To avoid receiving standard bearings mislabeled as insulated, buyers must request specific documentation.

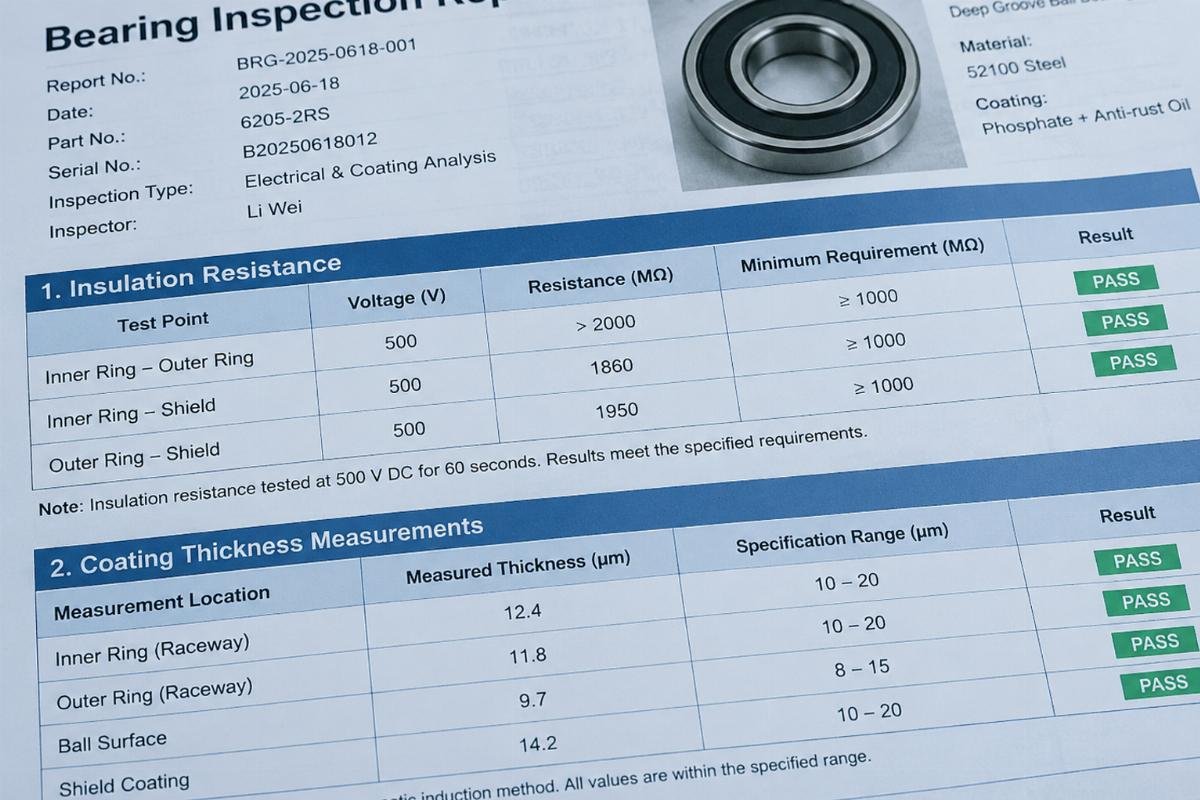

First, ask for the insulation resistance test report. Genuine insulated bearings will have a documented resistance value, typically in the megaohm range, measured under standard conditions. [NEED_CITE: standard testing methods for bearing insulation resistance] Second, inquire about the grease conductivity. Even with an insulated bearing, if the grease is highly conductive, it can bridge the gap if the coating is compromised. Conversely, some specialized greases are designed to enhance insulation. Knowing the electrical resistivity specs of the lubricant helps prevent micro-arcing within the bearing assembly.

A Middle East steel mill encountered issues when a batch of supposedly insulated bearings failed prematurely. Upon investigation, it was revealed that the coating thickness was inconsistent, and no test certificates were provided by the supplier. By switching to a supplier who offered full traceability and technical datasheets for VFD applications, they resolved the issue. This experience highlights the importance of verifying claims with data.

When evaluating Energy-Efficient Motor Bearings for IE4 and IE5 Motors, look for suppliers who can provide mixed-brand insulated bearing sourcing with complete documentation. Brands like SKF, FAG, and NSK have specific lines for these applications, but the key is ensuring that the specific part number ordered matches the required insulation class. Do not rely solely on the brand name; verify the suffix codes that indicate insulation features.

Sourcing Strategy for Global Distributors and OEMs

Combine technical verification with reliable supply chain partners to mitigate risk.

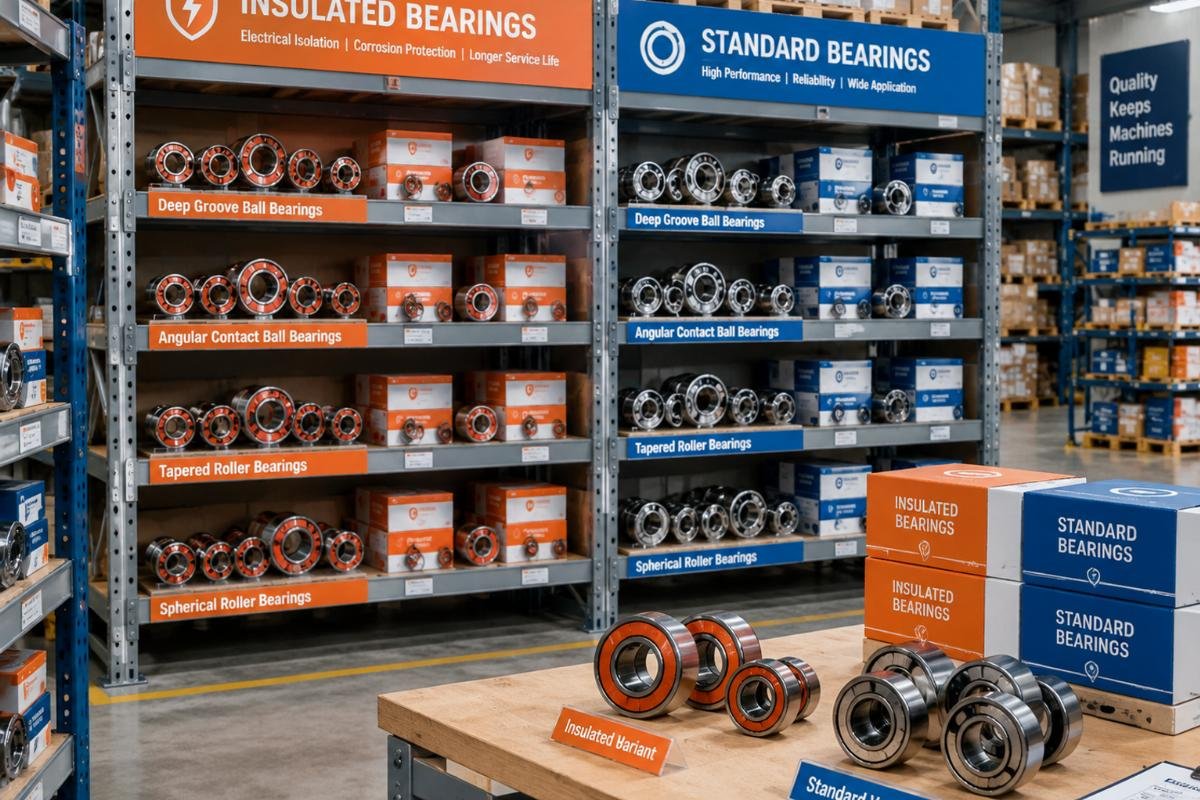

For regional industrial bearing distributors and wholesalers, stocking the right mix of Energy-Efficient Motor Bearings for IE4 and IE5 Motors is crucial. The demand for VFD-compatible components is growing as energy efficiency regulations tighten globally. However, the complexity of these products requires a deeper level of technical support than standard bearings.

OEMs need consistent batch-to-batch quality and precise dimensional tolerances. They also require engineering support during the design phase to select the appropriate insulation type. MRO operators prioritize fast lead times and availability of emergency spares. A supplier who understands these diverse needs can offer tailored solutions. For instance, providing mixed-brand packages allows distributors to cater to different customer preferences and budget levels while maintaining quality standards.

Anti-axial current bearings are not just a niche product; they are becoming a standard requirement for modern industrial machinery. From mining crushers to wind turbines, the prevalence of VFDs makes electrical insulation a critical factor in bearing life. Suppliers who can offer genuine products with full traceability documentation provide a significant advantage to their clients. This includes ISO-compliant quality assurance and access to technical datasheets that help end-users make informed decisions.

By focusing on the technical aspects of insulation and grease conductivity, buyers can avoid the pitfalls that lead to motor burnouts. The goal is to ensure that every bearing installed in an IE4 or IE5 motor is capable of withstanding the electrical stresses of modern drive systems. This approach not only protects equipment but also enhances the reliability of the entire industrial operation.

Conclusion

Selecting the right insulated bearings for IE4/IE5 motors prevents VFD failures.

Prioritize insulation and anti-axial current capabilities over brand reputation. Verify specifications through traceable test reports and resistivity data. Choose between insulated coatings and hybrid ceramics based on VFD severity and budget. Reliable sourcing of Energy-Efficient Motor Bearings for IE4 and IE5 Motors ensures long-term motor health and operational efficiency.
