A larger bearing is not always a better solution for heavy loads.

The ISO 355 dimension series system standardizes boundary dimensions and contact angles to ensure global interchangeability, where selecting the correct series prevents geometric interference and catastrophic failure under axial stress.

I still remember the heat radiating from the crusher housing in an Ethiopian mine. The maintenance team was furious, convinced they had received defective stock because the bearing seized after only a few months of operation. They expected it to last years. I wiped the grease from the outer ring and checked the markings. It was not a quality issue. It was a selection error. They had installed a standard series bearing where a heavy-duty series was required, ignoring the critical difference in contact angles defined by ISO standards. This mismatch caused the rollers to bind under the intense axial load of the crushing process. That incident reinforced a lesson I apply to every technical consultation: precise interpretation of the ISO 355 dimension series is not just about fitting parts; it is about survival in harsh industrial environments. [NEED_CITE: ISO 355 standard scope and application for rolling bearings]

Understanding these standards is essential for anyone sourcing components for mining, construction, or heavy machinery. As a ISO 355 Tapered Roller Bearing Dimensions Wholesale Supplier, we see many procurement errors stem from overlooking these geometric nuances.

What is the ISO 355 Dimension Series System?

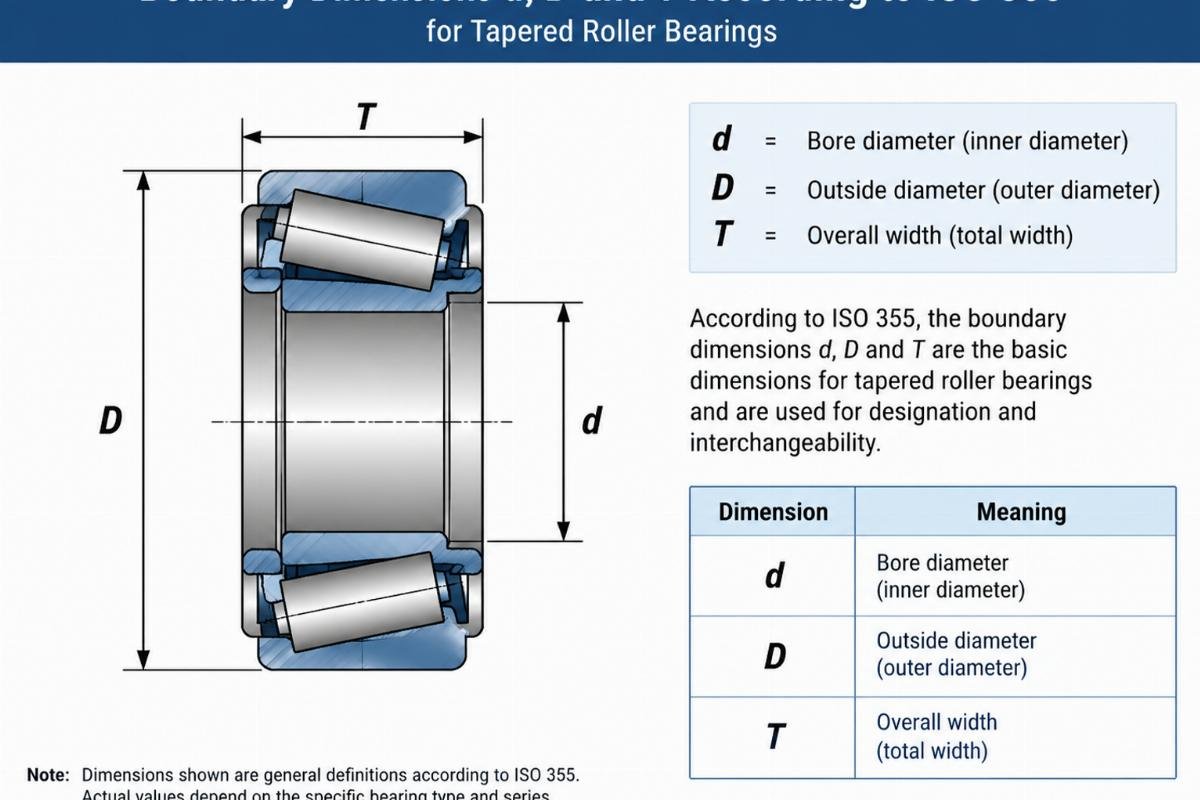

The ISO 355 standard establishes a systematic approach to defining the boundary dimensions of radial rolling bearings. It ensures that a bearing manufactured in one part of the world can replace another from a different manufacturer without modification to the housing or shaft. This global interchangeability is vital for minimizing downtime in international operations.

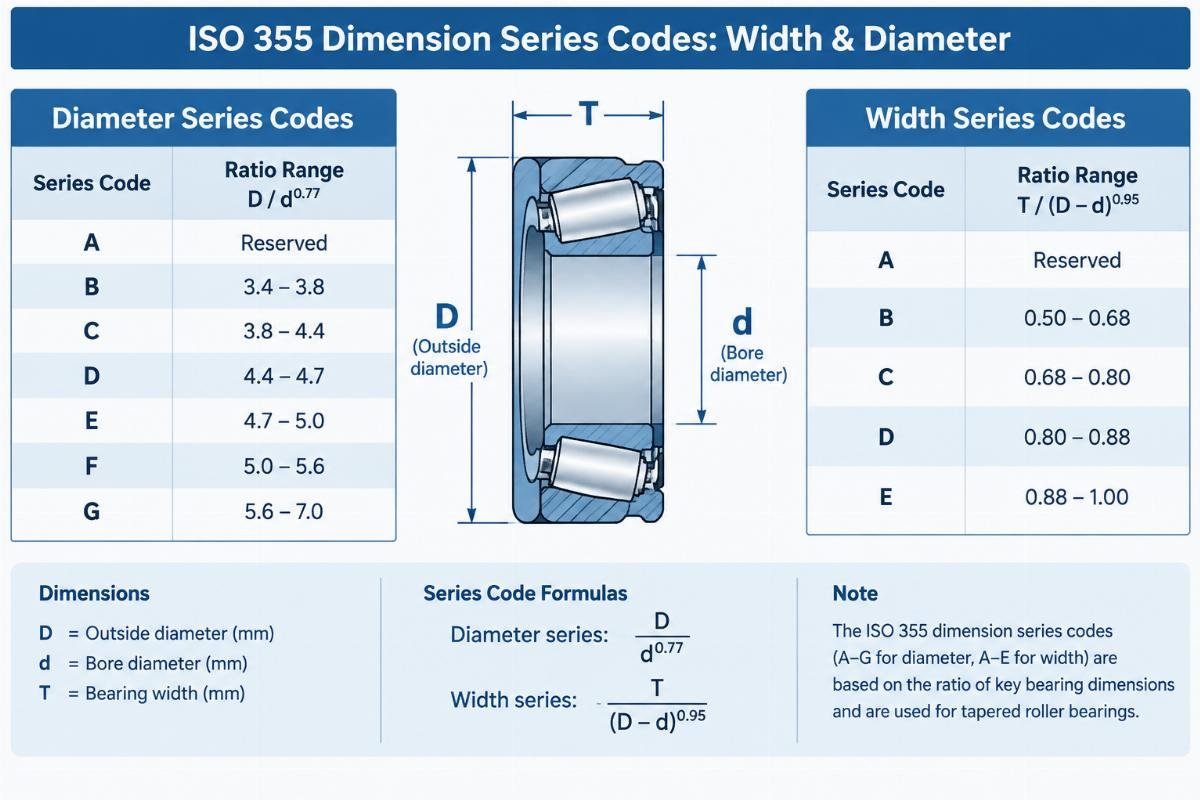

The system categorizes bearings based on their width and diameter series. These designations determine the load-carrying capacity and the physical envelope of the bearing. For tapered roller bearings, the dimension series also correlates with the contact angle, which dictates how the bearing handles combined radial and axial loads. [NEED_CITE: Relationship between dimension series and load ratings in ISO standards]

When you look at a bearing designation, the dimension series code tells you the proportion of the bearing’s cross-section. A heavier series indicates a larger cross-section for the same bore diameter, meaning more material to distribute stress. Ignoring this leads to premature fatigue. In my experience, distributors who simply match the bore and outer diameter without checking the width series often supply parts that fit physically but fail functionally under load.

For buyers, this means verifying the full designation, not just the basic size. A ISO 355 Tapered Roller Bearing Dimensions Wholesale Supplier must provide clear documentation linking the part number to its specific dimension series to avoid such costly mismatches.

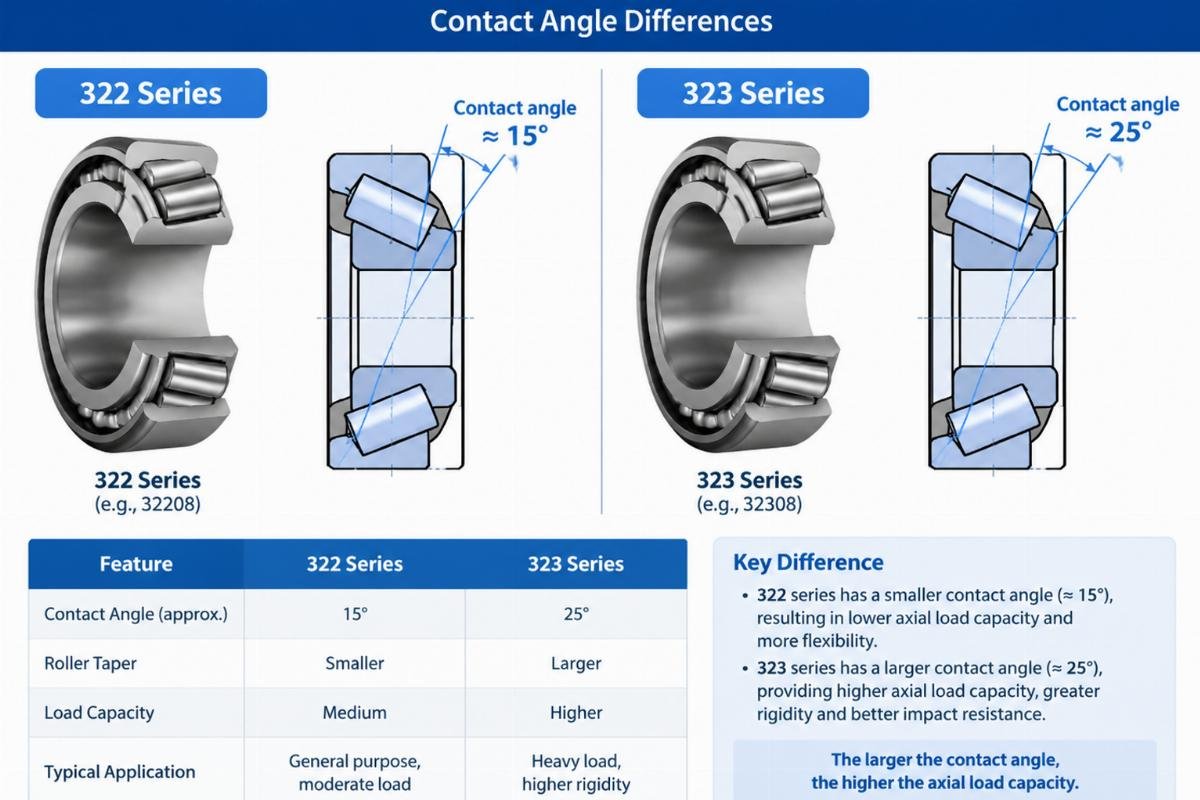

How to Decode 322 vs 323 Series Contact Angles?

One of the most common sources of confusion in heavy equipment maintenance is the difference between the 322 and 323 series. Both are tapered roller bearings, but they serve different load profiles due to their contact angles.

The 322 series typically features a standard contact angle. It is designed for applications with moderate axial loads combined with radial forces. In contrast, the 323 series has a steeper contact angle. This geometry allows it to support significantly higher axial loads. [NEED_CITE: Comparative analysis of contact angles in 322 and 323 bearing series]

I once assisted a gearbox manufacturer who was experiencing frequent failures in their output shafts. They were using 322 series bearings, assuming the radial load rating was sufficient. However, the operational data showed significant axial thrust during high-torque events. By switching to the 323 series, they utilized the steeper contact angle to better manage these axial forces. The result was a noticeable extension in service life and reduced maintenance frequency.

This distinction is critical when sourcing replacements. If you substitute a 322 for a 323, you risk edge loading and rapid seizure. Conversely, using a 323 where a 322 is specified might cause fitment issues or unnecessary cost. A reliable ISO 355 Tapered Roller Bearing Dimensions Wholesale Supplier will always clarify these differences during the selection process.

Why Do Bearings Fail Despite Correct Lubrication?

It is a widespread misconception that proper lubrication guarantees bearing longevity. While lubrication is essential, it cannot compensate for geometric incompatibility. Many burned bearings are blamed on oil breakdown, but the root cause is often a mismatched dimension series.

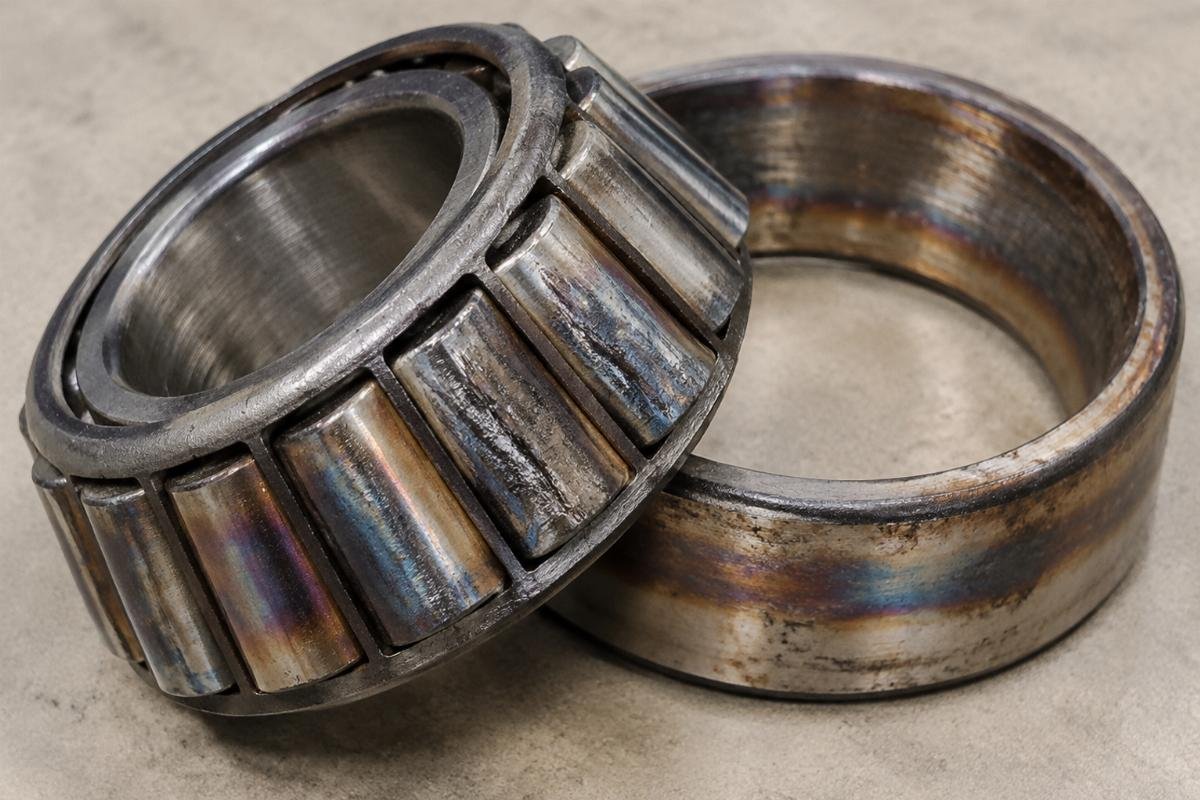

When a bearing with an incorrect contact angle is subjected to heavy loads, the load distribution across the rollers becomes uneven. Instead of sharing the load evenly, a few rollers bear the brunt of the force. This leads to localized overheating, metal-to-metal contact, and eventual seizure. [NEED_CITE: Failure modes related to misalignment and incorrect bearing selection per ISO 15243]

In a case involving a cement plant in the Middle East, a fan assembly suffered repeated bearing failures. The maintenance team had meticulously followed lubrication schedules. However, upon inspection, we found that the replacement bearings belonged to a different dimension series than the original design. The slight difference in width altered the internal clearance and load zone. Once the correct ISO 355 series was installed, the failures ceased.

This highlights the importance of verifying boundary dimensions against the original equipment manufacturer specifications. Visual inspection of the old part is often insufficient due to wear. Consulting technical datasheets is necessary. As a ISO 355 Tapered Roller Bearing Dimensions Wholesale Supplier, we emphasize the need for precise dimensional verification to prevent such geometric interference.

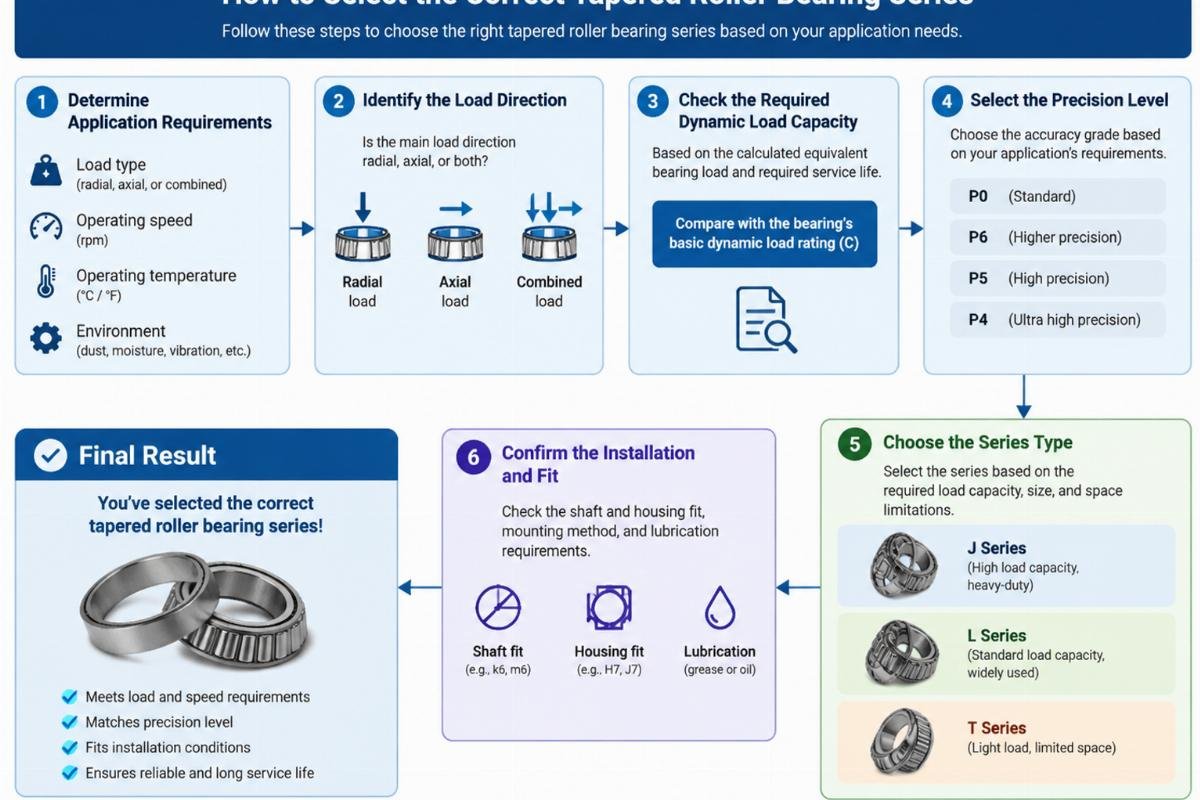

How to Select the Right Series for Your Application?

Selecting the correct bearing series requires a methodical approach. It involves analyzing load vectors, consulting ISO charts, and verifying boundary dimensions. Here is a step-by-step guide to making the right choice.

1. Analyze Load Vectors: Determine the ratio of radial to axial loads. High axial loads require a steeper contact angle, such as the 323 series. [NEED_CITE: Methodology for calculating equivalent dynamic bearing load]
2. Check ISO 355 Charts: Identify the dimension series that corresponds to your load requirements. Ensure the width and diameter series match the available space in the housing.
3. Verify Boundary Dimensions: Measure the bore, outer diameter, and width of the existing bearing or housing. Compare these with the ISO 355 standard values.
4. Confirm Interchangeability: If substituting brands, ensure the new bearing matches the exact ISO dimensions. Do not rely solely on part number similarities across different manufacturers.

A European wind farm operator once faced delays due to unavailable original brand bearings. They sought a cross-brand equivalent. By strictly adhering to the ISO 355 boundary dimensions, we identified a domestic line that offered 100% dimensional interchangeability. This allowed them to resume operations without waiting for long lead times from the original manufacturer.

This process minimizes the risk of selecting an undersized or geometrically incompatible bearing. It ensures that the bearing can handle the specific stresses of the application. Working with a knowledgeable ISO 355 Tapered Roller Bearing Dimensions Wholesale Supplier facilitates this technical validation, ensuring that the selected part meets both dimensional and performance criteria.

Conclusion

Precision in dimension series selection prevents costly industrial failures.

Correctly interpreting ISO 355 standards and contact angles is essential for reliable heavy-load performance. Misunderstanding these parameters leads to geometric interference and premature seizure, regardless of lubrication quality. Always verify boundary dimensions and load requirements before procurement.
