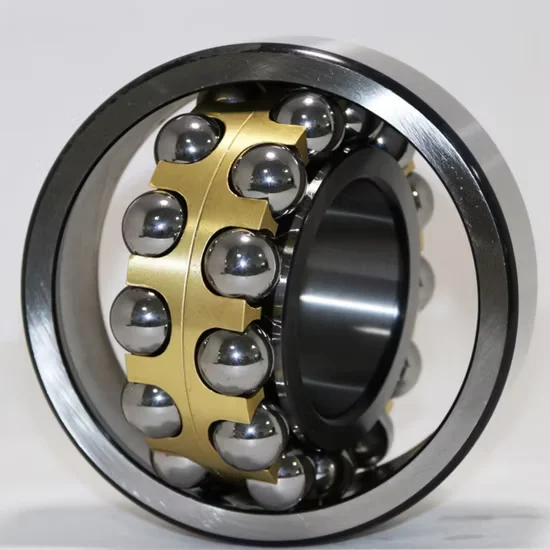

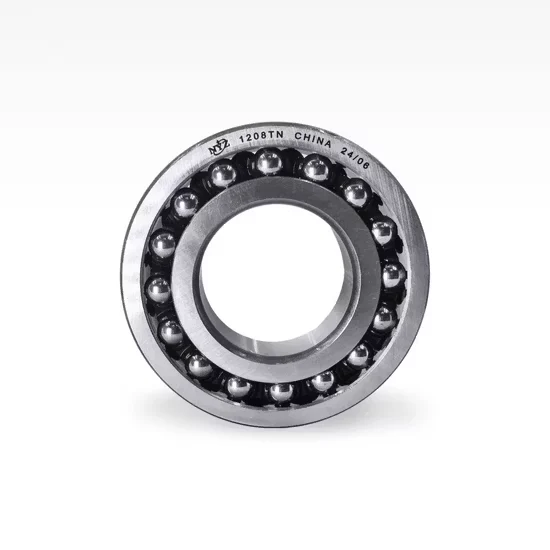

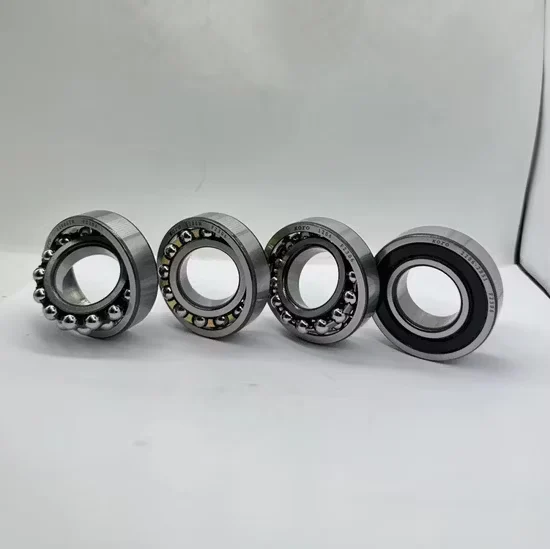

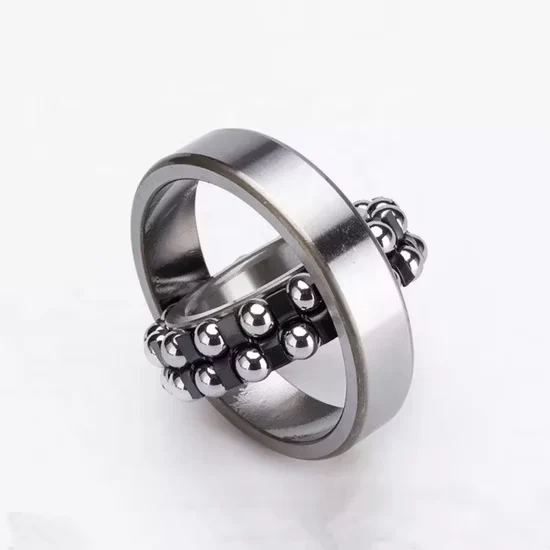

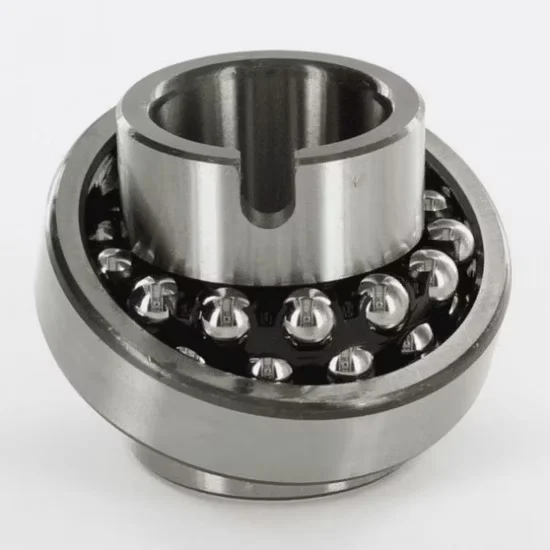

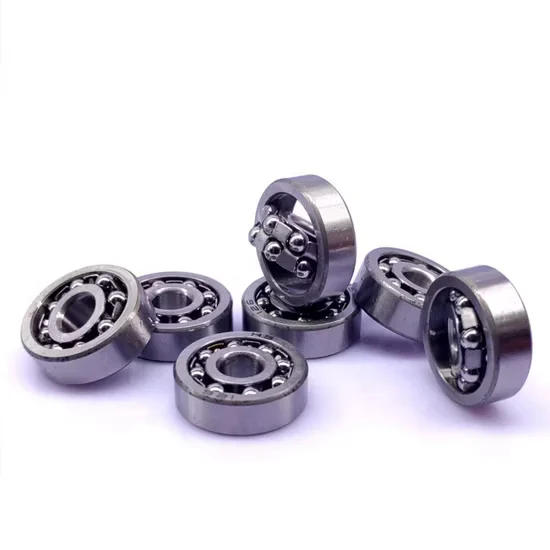

2203 Ceramic Self-Aligning Ball Bearing 17x40x16mm Si3N4 High Hardness Wear Resistant [WARN] draft identifier mismatch

Multi-brand sourcing consolidation — Source 2203 variants from premium or domestic lines in a single mixed-container shipment without juggling multiple vendors.

Technical Specifications

Application Suitability

Why Shaft Deflection Destroys Standard Bearings Before the 2203 self-aligning ball bearing Yields

Rigid bearings crack under angular stress, while self-aligning geometries absorb the deflection.

In dusty mining environments, I watched standard deep-groove units seize within weeks because microscopic frame shifts broke the lubricant film. When shafts deflect under heavy loads, the resulting edge stress generates excessive heat and rapid wear. Upgrading to a 2203 self-aligning ball bearing with ceramic rolling elements eliminates this edge-loading failure mode entirely. The spherical outer raceway allows the inner ring to pivot, maintaining an even load distribution across the rolling elements. This geometric forgiveness is crucial for heavy machinery where structural flexing is unavoidable, preventing the localized stress concentrations that typically trigger premature spalling and catastrophic drive failures [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching the 2203 self-aligning ball bearing to Misaligned Drive Systems

When conveyor frames twist under tension or textile spindles vibrate at high frequencies, rigid mounts force standard bearings out of their intended alignment. This 2203 self-aligning ball bearing accommodates these angular errors through its unique spherical outer ring raceway, allowing the shaft to flex without binding the rolling elements. Our engineering team routinely cross-references OEM equipment drawings to ensure the selected clearance class matches the thermal expansion of your specific drive assembly. By analyzing the structural rigidity of your housing, we can determine whether the standard clearance is sufficient or if a larger internal gap is necessary to compensate for operational heat generation and shaft deflection.

Overcoming Dust Ingress and Thermal Cycling in Heavy Machinery

Agricultural and mining conveyors expose rotating shafts to severe particulate contamination and fluctuating ambient temperatures throughout the day. Standard steel rolling elements suffer accelerated abrasive wear when microscopic dust breaches the seals, while thermal cycling alters internal clearance and compromises the lubricant film. Selecting the appropriate seal configuration and verifying the radial clearance prevents premature seizure under these combined radial and axial shock loads. The choice between open, shielded, or sealed variants directly impacts the maintenance schedule, as sealed units retain factory grease but generate more friction, whereas open designs require continuous external lubrication systems to flush out contaminants [NEED_CITE: influence of contamination on bearing fatigue life per ISO 281].

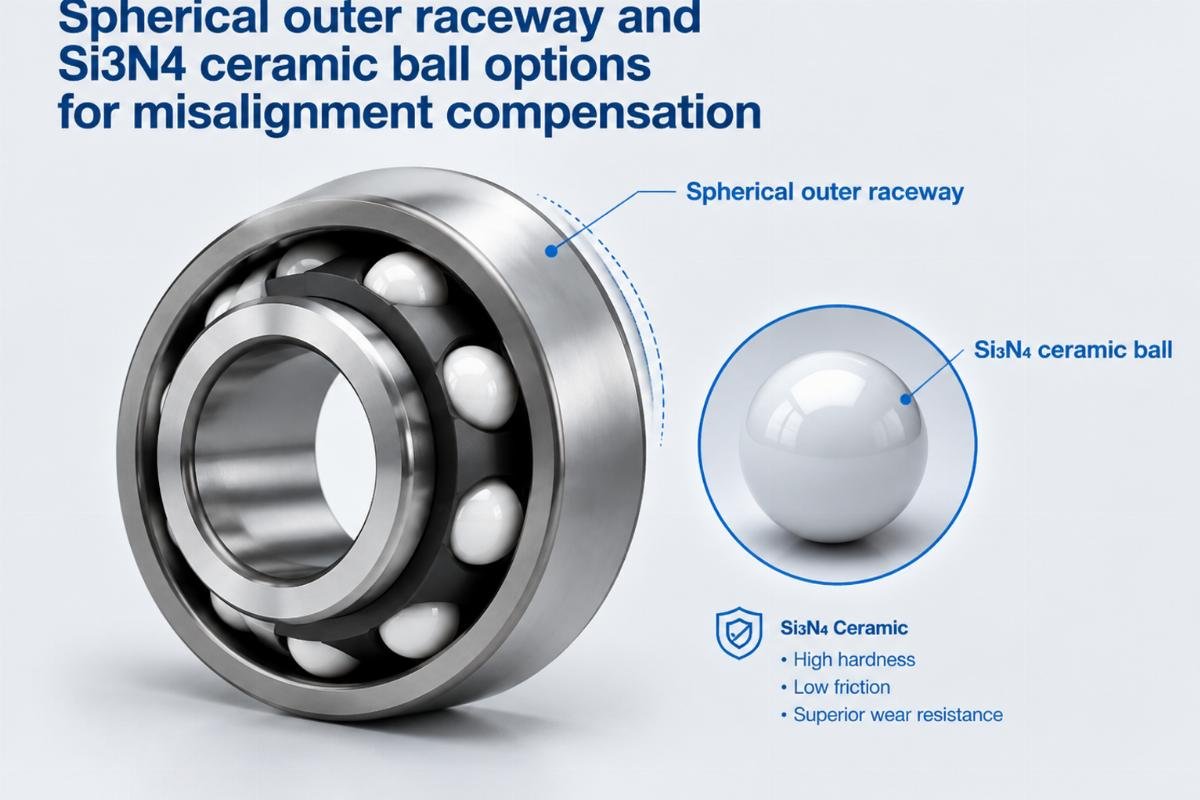

Decoding the Spherical Raceway and Material Options

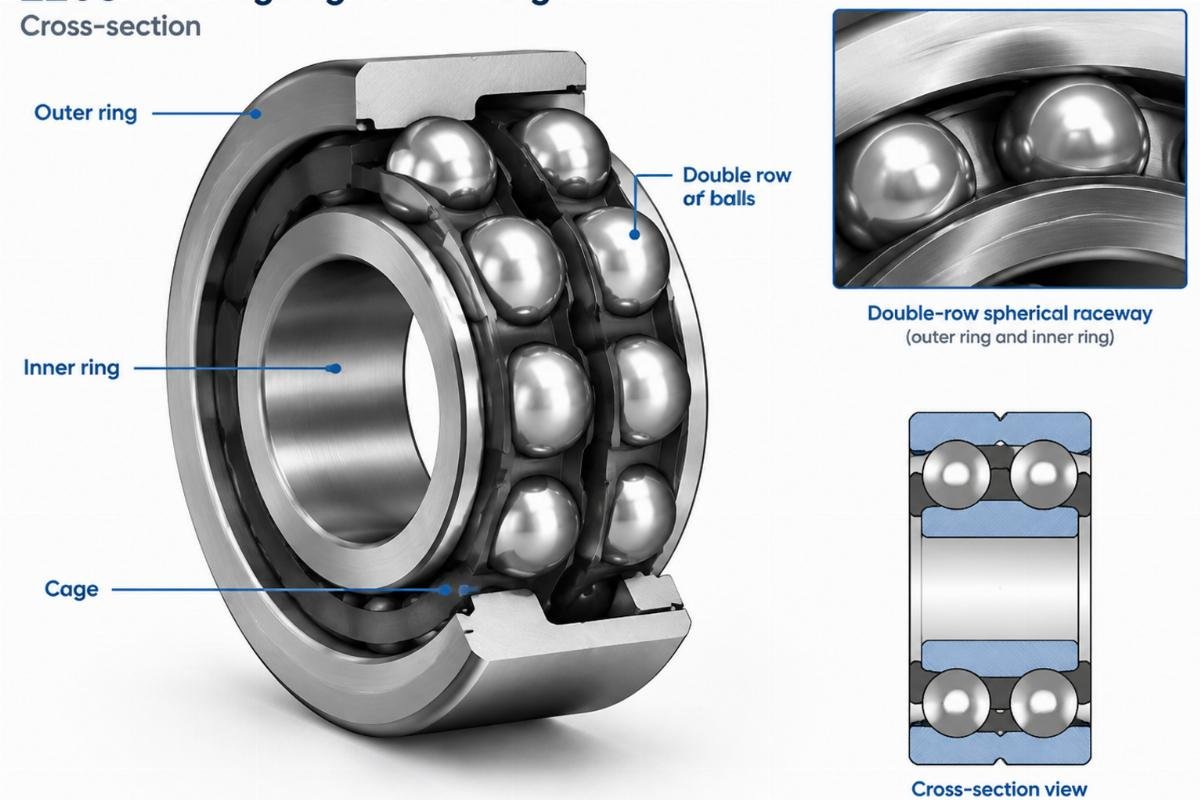

The defining feature of this designation is the double-row spherical outer raceway, which permits the inner ring and ball assembly to align freely with the outer ring. This geometry absorbs static mounting errors and dynamic shaft deflections without inducing internal friction or cage stress. Buyers can choose between Gcr15 chrome steel for standard industrial loads or Si3N4 ceramic variants for applications demanding high hardness and electrical insulation. The ceramic option noticeably reduces friction at elevated speeds and prevents electrical pitting in motor applications where stray currents damage standard steel raceways. Furthermore, the ceramic rolling elements are considerably lighter than steel, reducing centrifugal forces on the cage during high-speed operation and extending the lubricant service life.

The Downtime Penalty of Ignoring Angular Misalignment

Specifying a rigid bearing for a deflecting shaft guarantees unplanned downtime and catastrophic damage to adjacent housings and seals. When edge loading occurs, the localized stress exceeds the material fatigue limit, leading to spalling, cage deformation, and sudden seizure. Following the failure analysis frameworks in ISO 15243 helps maintenance teams identify misalignment-induced wear patterns before they escalate into complete drive failures. Ignoring these early warning signs not only destroys the bearing but also scores the shaft and ruins the housing bore, turning a simple component replacement into a major structural rebuild that halts production for extended periods [NEED_CITE: bearing damage analysis per ISO 15243].

Securing Traceable 2203 Inventory for Critical Maintenance

Sourcing replacement bearings often involves sorting through mixed-brand inventories where suffix accuracy and internal clearance consistency are easily compromised. We maintain massive spot inventory covering thousands of standard part numbers, ensuring your 2203 order ships with exact dimensional and clearance consistency. Our technical team provides cross-brand equivalent model consultation, verifying that the supplied unit matches your OEM requirements without forcing you to coordinate with multiple vendors. Whether you need a single emergency spare part or a full container consolidation for a plant overhaul, our flexible sourcing model guarantees that every unit arrives with complete traceability documentation and verified material certificates.

Documentation & Authenticity

• Certificate of Conformity verifying the 17x40x16mm dimensions and Gcr15 or Si3N4 material grade.
• Original factory batch traceability documents linking the specific 2203 shipment to its production run.
• Material inspection reports confirming the authenticity of Si3N4 ceramic balls when specified.
• Dimensional and running accuracy inspection reports validating the spherical raceway tolerances before dispatch.

Storage, Handling & Mounting

• Keep the 2203 units in their original moisture-barrier packaging until installation to protect the chrome steel surfaces from humidity.
• Use clean lint-free gloves when handling the Si3N4 ceramic variants to prevent surface contamination before mounting.
• Apply induction heating strictly to the inner ring when mounting the 17mm bore onto solid shafts to avoid damaging the spherical raceway.
• Verify the radial clearance class after mounting to ensure thermal expansion has not eliminated the internal operating gap.

Preparing Your Technical Requirements for Selection

To ensure the 2203 self-aligning ball bearing meets your operational demands, share your radial and axial load profiles, operating speeds, and ambient temperature ranges. Providing the OEM equipment model number allows our engineers to perform a precise cross-reference check and verify the required radial clearance class. Detailing the environmental exposure, such as dust or moisture levels, helps us recommend the optimal material and sealing configuration. Once we receive these parameters, our technical team will calculate the theoretical L10 life and suggest the most cost-effective brand equivalent that satisfies your maintenance intervals and performance expectations.

Frequently Asked Questions

Q: What are the application differences between 2203 ceramic ball and steel ball versions?

A: The Gcr15 chrome steel version suits standard industrial conveyors and agricultural machinery with moderate loads. The Si3N4 ceramic variant is specified for electric motors and high-speed textile spindles where electrical insulation, reduced friction, and high hardness are critical to prevent electrical pitting and extend maintenance intervals.

Q: What is the maximum allowable shaft misalignment angle for self-aligning ball bearings?

A: The double-row spherical raceway design typically accommodates static angular misalignment of a few degrees, depending on the specific internal clearance and bearing size. This flexibility absorbs mounting errors and shaft deflections, but dynamic misalignment limits must be verified against the operational speed and load conditions to prevent cage stress.

Q: How to select the correct radial clearance based on equipment speed and load?

A: Standard clearance suits general conveyor and pump applications with normal operating temperatures. If the 2203 self-aligning ball bearing operates at high speeds or experiences significant thermal expansion from the shaft, a C3 or C4 clearance class is required. Share your thermal profile so we can calculate the necessary internal gap to prevent seizure.

Q: How to ensure cage and precision class consistency when cross-referencing multi-brand supplies?

A: When substituting brands, the cage material and precision class must match the original OEM specification to maintain vibration and speed characteristics. We cross-reference the exact 2203 designation across premium global and domestic lines, providing technical selection support to confirm that the alternative brand meets your specific dynamic load and speed requirements.

Q: What are the installation and induction heating precautions for self-aligning ball bearings?

A: When using induction heating for the 17mm bore, apply heat exclusively to the inner ring to prevent thermal damage to the spherical outer raceway and cage. Monitor the temperature carefully to avoid exceeding the thermal limit of the cage material, and ensure the bearing is seated squarely against the shaft shoulder before cooling.
