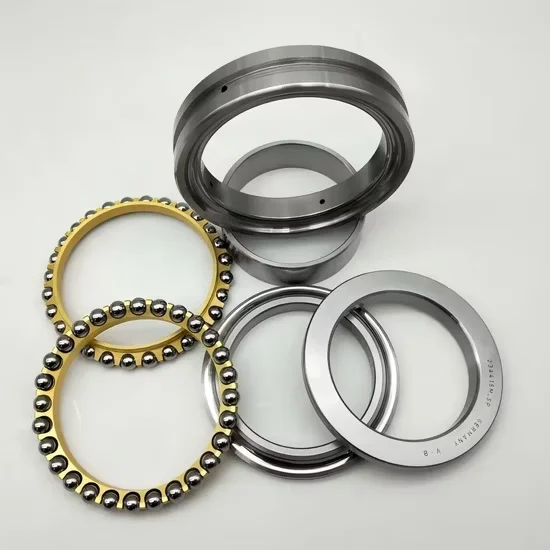

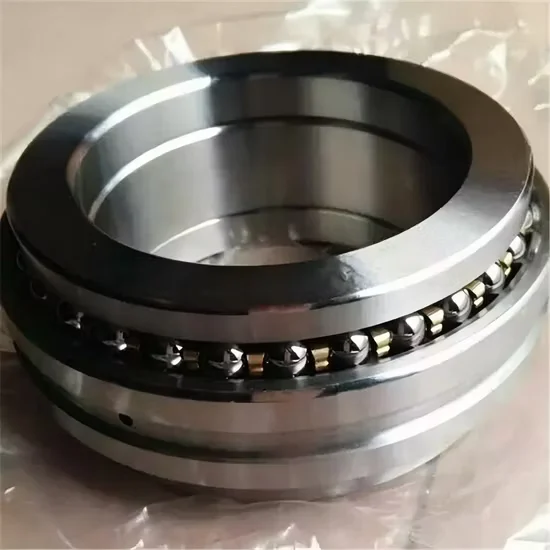

Double Direction Angular Contact Thrust Ball Bearings for Screw Drives

Multi-Brand Sourcing Unified — Procure KOYO, NTN, NSK, and OZD thrust bearings in a single consolidated shipment without juggling multiple vendor accounts.

Technical Specifications

Application Suitability

Why Screw Drives Fail When the Double Direction Angular Contact Thrust Ball Bearing Supplier Ignores Precision Suffixes

Missing a super-precision suffix turns a high-speed spindle into a vibrating wreck.

Early in my Dubai procurement days, I sourced thrust bearings for a machine tool screw drive but overlooked the critical P4A ultra-precision designation. The spindle vibrated excessively at high RPMs and eventually seized. That costly mistake reshaped how I evaluate axial load components today. [NEED_CITE: spindle vibration thresholds and bearing precision correlation]

Matching Axial Rigidity to CNC Screw Drive Demands

A reliable double direction angular contact thrust ball bearing supplier understands that screw drives demand exceptional axial rigidity and minimal runout. Our engineering team cross-references your machine’s specific thrust loads and acceleration profiles to select the optimal unseparated configuration. This ensures the ball screw maintains precise positioning without axial play degrading the machining tolerance.

Navigating Thermal Expansion and Lubrication in High-Speed Spindles

Screw drives generate significant friction heat, which alters internal clearance and compromises positioning accuracy if not managed properly. Open-type designs require meticulous external lubrication strategies to flush out metallic debris while maintaining a stable oil film at elevated speeds. Furthermore, thermal expansion of the shaft necessitates careful preload adjustments during installation to prevent excessive contact stress. [NEED_CITE: thermal displacement effects on ball screw bearing preload]

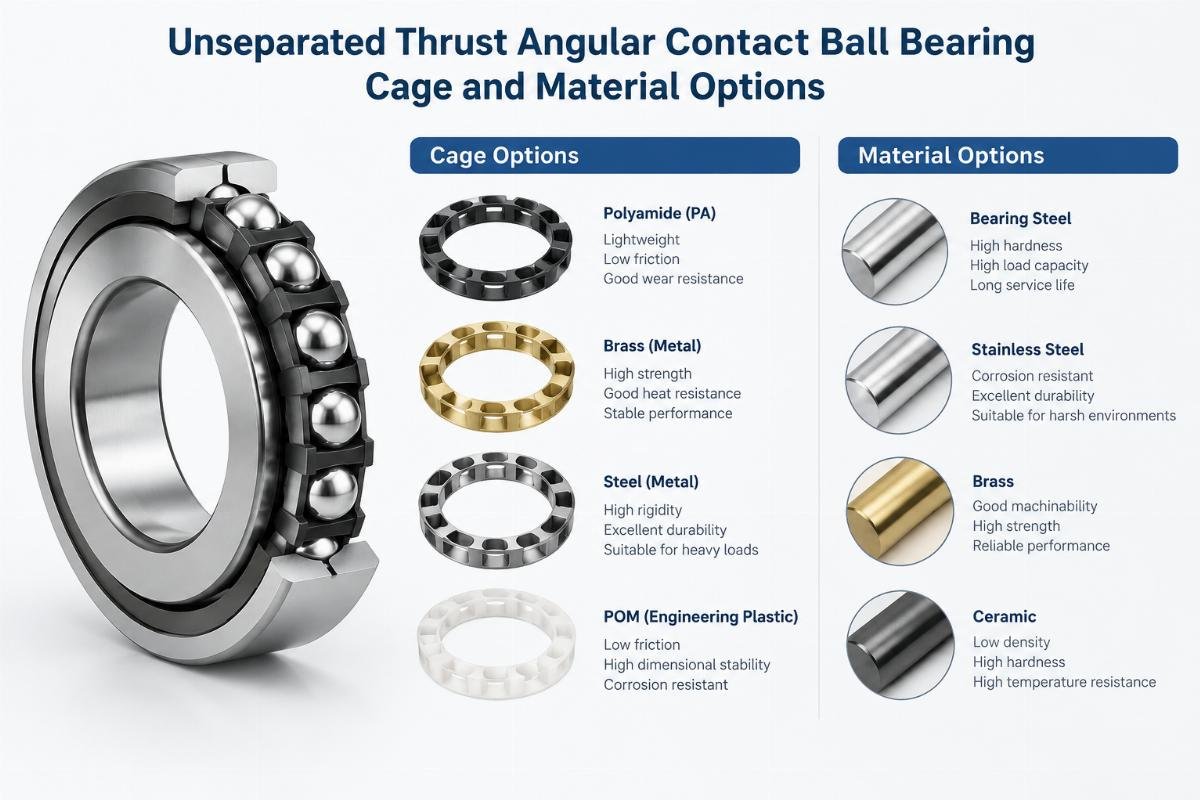

Decoding Material and Cage Options for Thrust Applications

Selecting the right internal components dictates the operational lifespan of the drive. GCr15 (SUJ2) bearing steel provides the foundational hardness required for heavy axial loads, while alternative materials like ceramic or stainless variants are available for specialized environments. Brass cages offer superior stability under heavy loads and high vibrations, whereas nylon cages reduce weight and operate quietly at moderate speeds. Steel cages remain the standard for high-temperature resilience. Choosing the correct precision class directly correlates with the machine’s required positioning repeatability.

The Downtime Penalty of Mismatched Precision Classes

Installing a standard precision bearing in a high-precision CNC screw drive inevitably leads to catastrophic positional drift and premature raceway spalling. According to failure analysis frameworks, mismatched clearance and precision ratings account for a significant share of unplanned machine downtime. The resulting scrap parts, emergency maintenance labor, and voided equipment warranties far exceed the initial savings of skipping ultra-precision grades. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Securing Traceable Precision for Critical Drive Components

Sourcing ultra-precision thrust bearings often involves navigating long lead times and questionable secondary markets. We maintain massive spot inventory of genuine KOYO, NTN, NSK, and OZD products, ensuring you receive exact precision classes without waiting months. Every shipment includes complete metallurgical and dimensional traceability, eliminating the risk of receiving rebranded standard bearings disguised as super-precision parts. Our technical team verifies the exact cage material and running accuracy against your OEM specifications before dispatch.

Documentation & Authenticity

• Certificate of Conformity verifying the exact P-class tolerance for screw drive applications.
• Original manufacturer batch traceability linking the GCr15 steel heat number to the final product.
• Running accuracy inspection report confirming axial runout limits before shipment.
• Material certification validating SUJ2 bearing steel metallurgical compliance.
• Dimensional inspection records verifying unseparated double-direction structural integrity.

Storage, Handling & Mounting

• Keep open-type bearings in original VCI packaging until mounting to prevent GCr15 steel surface corrosion.
• Use lint-free cleanroom gloves when handling P2 or P4 precision components to avoid skin acid etching.
• Apply specified spindle oil immediately after unsealing to protect the brass or nylon cage surfaces.
• Store unseparated double-row units flat to prevent axial deformation of the precision-ground raceways.
• Avoid using carbon steel tools on stainless steel variant options to prevent cross-contamination and rust.

Engineering Review for Screw Drive Integration

To ensure optimal axial rigidity and lifespan, please provide your screw drive’s dynamic thrust loads, maximum operating RPM, and expected thermal profile. Sharing the specific machine tool model or existing OEM part numbers allows our engineers to perform precise cross-referencing. We will then recommend the exact precision class, cage material, and preload configuration required for your application.

Frequently Asked Questions

Q: How do I determine the exact precision class for my CNC screw drive?

A: The required precision class depends on your machine’s positioning accuracy and repeatability demands. High-speed machining centers typically require P4 or P2 grades to minimize axial runout, while general automation might suffice with P5 or P6. Provide your tolerance requirements and operating speeds, and our engineering team will specify the exact grade to prevent vibrational failures.

Q: What are common failure modes for these bearings in screw drives?

A: Premature failures usually stem from inadequate lubrication, thermal expansion altering internal preload, or contamination entering open-type designs. False brinelling and raceway spalling occur when axial rigidity is compromised by incorrect precision selection. Regular oil analysis and strict adherence to relubrication intervals significantly mitigate these risks and extend the operational lifespan of the drive mechanism.

Q: Should I choose a brass, nylon, or steel cage for high-speed spindles?

A: Brass cages provide exceptional stability and durability under heavy axial loads and high vibrations, making them ideal for rigorous machining. Nylon cages offer lower friction and quieter operation at moderate speeds but have strict temperature limits. Steel cages excel in high-temperature environments. Share your specific RPM and thermal data so we can match the optimal cage material.

Q: How can I source genuine OEM replacements if the original part is discontinued?

A: When original equipment manufacturers discontinue specific thrust bearing part numbers, we utilize comprehensive cross-reference databases to identify dimensionally and functionally equivalent alternatives from premium brands like KOYO, NTN, or NSK. We verify the exact bore, outside diameter, width, and precision class to ensure seamless integration into your existing screw drive housing without requiring mechanical modifications.

Q: What maintenance is required for open-type precision bearings in this application?

A: Open-type designs lack integral seals, requiring a continuous or periodic external lubrication system to flush away metallic wear particles and maintain the oil film. You must strictly follow the machine builder’s relubrication cycles using the specified spindle oil or grease. Installing high-quality external labyrinth seals is highly recommended to prevent coolant and swarf contamination from degrading the bearing steel.
