NSK NTN SKF1 Nu2322EMC3 Cylindrical Roller Bearing 110x240x80mm [WARN] draft identifier mismatch

Authenticity via QR scan — Every Nu2322EMC3 shipped includes a verifiable manufacturer QR code linking directly to the original production batch records.

Technical Specifications

Application Suitability

Why Vibration Destroys Standard Cages Before the NSK NTN SKF1 Nu2322EMC3 cylindrical roller bearing Fails

The cage fails first when high-frequency shock loads exceed the fatigue limit of pressed steel.

In my early days doing heat treatment and field tech sales, I watched a heavy vibrating screen tear itself apart because someone specified a stamped steel cage for a high-shock environment. The cage fractured at the crimped joints, causing catastrophic downtime long before the raceways showed any spalling or wear. When sourcing an NSK NTN SKF1 Nu2322EMC3 cylindrical roller bearing for similar extreme conditions, ignoring the cage material is a costly mistake that leads to premature assembly failure. Many procurement engineers focus solely on the dynamic load rating, completely overlooking the fact that the cage is the weakest link under severe vibrational stress [NEED_CITE: bearing cage failure modes under high vibration per ISO 15243].

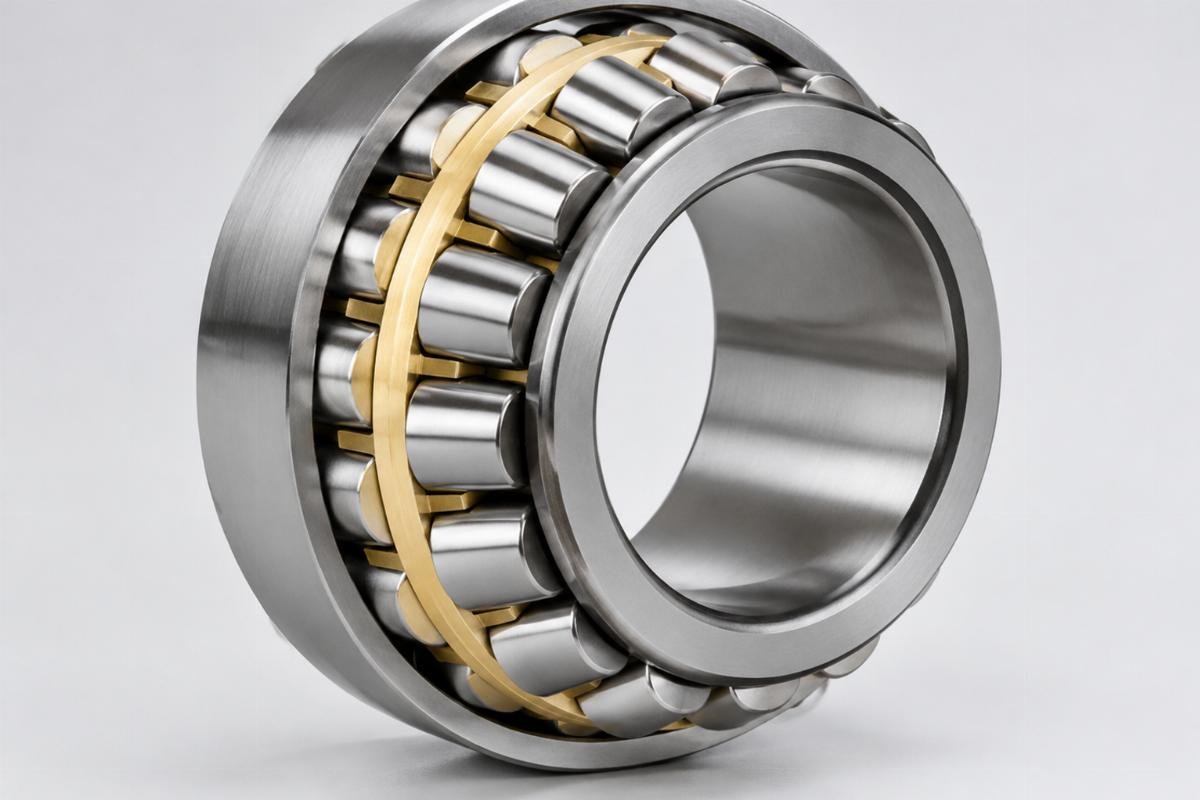

Matching the Machined Brass Design to Extreme Radial Loads

When heavy equipment operates under continuous radial stress, the internal components must maintain precise alignment to prevent edge loading. The NSK NTN SKF1 Nu2322EMC3 cylindrical roller bearing utilizes a one-piece machined brass cage that provides superior structural integrity compared to pressed alternatives. This design choice ensures the rollers remain perfectly spaced even when the gearbox housing deflects under peak torque. By maintaining optimal roller guidance, the brass cage prevents the destructive skewing that rapidly degrades the raceway surface. This specific configuration directly aligns with our capability to supply heavily built components for demanding global mining and steel mill projects, ensuring that the bearing survives the brutal reality of the factory floor rather than just looking good on a spec sheet.

Managing Thermal Expansion and Contamination in Steel Mills

Rolling mill environments subject components to intense radiant heat and heavy airborne particulates that constantly threaten the lubrication film. Elevated temperatures cause the inner and outer rings to expand at different rates, which can eliminate internal clearance and lead to severe friction if not properly accounted for during the selection phase. Furthermore, the lack of integrated seals in this open design means external contamination must be managed through rigorous housing design and regular lubrication flushes to prevent abrasive wear on the raceways. If the housing seals fail, metallic dust infiltrates the roller paths, acting as a grinding paste that rapidly accelerates surface fatigue and compromises the optimized internal geometry [NEED_CITE: thermal expansion effects on radial internal clearance in cylindrical roller bearings].

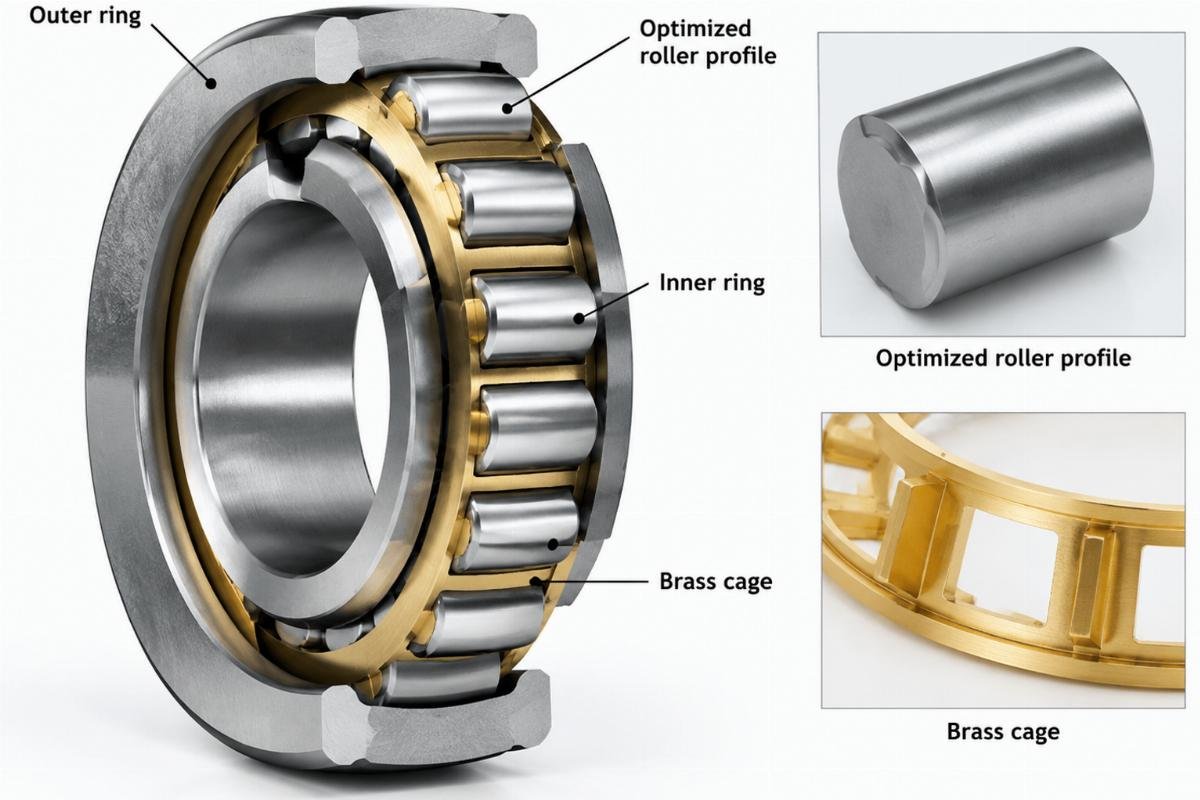

Decoding the EMC3 Suffix Configuration

The specific suffix combination dictates exactly how this component behaves under complex operational stress. The ‘E’ designation indicates an optimized internal geometry with a higher dynamic load rating, achieved by maximizing the roller count and refining the contact profile to distribute stress more evenly. The ‘M’ confirms the presence of a machined brass cage, which is absolutely mandatory for high-vibration or high-speed applications to prevent catastrophic cage disintegration. Finally, the ‘C3’ radial internal clearance provides the necessary thermal buffer, accommodating the dimensional growth of the chrome steel rings when operating beyond ambient temperatures. Without this specific clearance class, the thermal expansion would induce a destructive preload, generating excessive heat and ultimately leading to bearing seizure.

The Financial Impact of Ignoring Suffix Specifications

Substituting a standard clearance or stamped cage variant to save on initial procurement costs inevitably triggers unplanned downtime and massive secondary damages. When a bearing seizes due to insufficient thermal clearance or cage fragmentation, the resulting damage often extends to the shaft, housing, and adjacent gears, completely voiding equipment warranties. Following the failure classification frameworks outlined in international standards, these incidents are entirely preventable through correct initial specification rather than reactive maintenance. The true cost is never just the price of the replacement part; it includes the lost production hours, the emergency freight charges, and the labor required to tear down the entire drive assembly to extract the shattered components [NEED_CITE: economic consequences of unplanned downtime in heavy manufacturing per ISO 281].

Securing Traceable Inventory for Critical Replacements

Sourcing multi-brand equivalents often leads to mismatched suffixes, but our inventory strictly verifies the EMC3 configuration before dispatch to prevent field failures. We cross-check the physical cage weight and clearance markings against official catalogs to ensure you receive the exact high-capacity variant required for your machinery. Our technical team reviews your specific vibration profiles to confirm that the machined brass design is genuinely necessary, preventing you from overpaying for heavy-duty features when a standard cage would suffice. Furthermore, we maintain full batch traceability for your quality audits, ensuring that every component shipped can be traced back to its original heat treatment and metallurgical records, eliminating the risk of undocumented grey-market stock entering your critical spares inventory.

Documentation & Authenticity

• Certificate of Conformity verifying the exact EMC3 suffix and production batch.
• Official manufacturer QR code linking to the original metallurgical test records.
• Dimensional inspection report confirming the 110x240x80mm tolerances before dispatch.
• Material certification validating the Gcr15 / 100cr6 chrome steel composition.
• Radial internal clearance measurement log proving the C3 specification.

Storage, Handling & Mounting

• Store the Nu2322EMC3 in its original vapor-phase inhibitor packaging until the exact mounting hour.
• Use induction heating for the inner ring, strictly monitoring the temperature to preserve the C3 clearance.
• Support the outer ring during press-fitting to prevent transferring axial loads through the brass cage.
• Apply clean gloves when handling to avoid sweat-induced corrosion on the exposed chrome steel raceways.
• Align the roller set carefully with the outer ring flanges to avoid chipping the optimized E-profile edges.

Preparing Your Technical Data for Selection Review

To ensure this configuration perfectly matches your machinery, please provide the exact radial and axial load profiles along with the operational speed range and duty cycle. Sharing the OEM equipment number allows our engineering team to perform a precise cross-reference check and validate the L10 life calculation against your specific maintenance intervals. Additionally, detailing the ambient and operational temperatures will help us confirm whether the C3 clearance is sufficient or if a C4 variant is required for your specific thermal environment. Providing these operational parameters ensures that we supply a component that is engineered for your exact reality, rather than just shipping a generic catalog item that might fail under unexpected peak loads.

Frequently Asked Questions

Q: How can I verify the authenticity of the NSK NTN SKF1 Nu2322EMC3 cylindrical roller bearing?

A1: Authenticity is confirmed by scanning the official QR code on the packaging, which links directly to the manufacturer’s production database. We also provide a Certificate of Conformity and a dimensional inspection report that cross-references the physical markings on the rings, ensuring the component is a genuine, traceable product rather than a counterfeit or rebranded alternative.

Q: What are the cross-reference equivalents for this specific configuration?

A2: While the Nu2322EMC3 designation is standard across major manufacturers, suffix conventions for cage materials and internal designs vary slightly between brands. Our engineering team can provide exact cross-reference equivalents from premium global lines, ensuring the substituted model maintains the identical machined brass cage and C3 clearance required for your high-vibration application without compromising load capacity.

Q: When should I choose C3 clearance over standard CN for cylindrical roller bearings?

A3: The C3 clearance is essential when the inner ring operates at a noticeably higher temperature than the outer ring, causing differential thermal expansion. It is also required when the shaft and housing tolerances create a tight interference fit that would otherwise eliminate the internal gap. Using standard CN in these conditions leads to destructive preload and premature failure.

Q: What advantages does a machined brass cage offer over pressed steel?

A4: A machined brass cage provides substantially higher structural rigidity and better damping characteristics under heavy shock loads and high vibrations. Unlike pressed steel, which can fracture at the crimped joints under extreme stress, the solid brass construction maintains precise roller spacing and ensures reliable lubrication flow, significantly extending the operational lifespan in heavy-duty gearboxes and rolling mills.

Q: How do I properly install this NU-type bearing to avoid cage damage?

A5: During installation, mounting forces must be applied exclusively to the ring with the interference fit, which is typically the inner ring for NU-type designs. Never transfer press-fitting loads through the brass cage or the rollers, as this will permanently deform the cage pockets. Always use an induction heater for the inner ring and ensure precise alignment with the outer ring flanges.
