Rpna 45/62 Needle Roller Bearing 45x62x20mm Wholesale Supplier

Full Batch Traceability — Every Rpna 45/62 needle roller bearing ships with verifiable production lot records linking back to the original steel melt.

Technical Specifications

Application Suitability

Why Shaft Surface Finish Dictates Rpna 45/62 Needle Roller Bearing Lifespan

The bearing itself rarely fails first; the unprepared shaft journal does.

When installing full-complement needle arrays directly onto a shaft, skipping the surface roughness check guarantees premature scoring. I have seen packaging line machinery seize after just a few hundred hours because the shaft journal was machined too rough, acting like a file against the rolling elements. The microscopic peaks on an unpolished journal quickly shear off under heavy radial loads, contaminating the lubricant and accelerating wear. Proper raceway preparation and strict geometric tolerances are non-negotiable to avoid these catastrophic stoppages and ensure the Rpna 45/62 needle roller bearing reaches its calculated fatigue life [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching the Rpna 45/62 to Compact Radial Loads

Space-constrained gearboxes and compact drive units demand high radial capacity within a minimal cross-section, making the Rpna 45/62 needle roller bearing an ideal fit for these tight envelopes. Sourcing these specific dimensions across mixed-brand MRO packages requires precise cross-referencing to ensure the outer ring profiles and needle diameters match the existing housing geometry perfectly. Our engineering team verifies these dimensional overlaps and cross-references equivalent models to prevent costly housing modifications during urgent replacements. This thorough verification ensures that whether you are sourcing a single emergency spare or a full project consolidation, the physical interface remains completely compatible.

Navigating Lubrication and Thermal Expansion in Cage-Less Designs

Without a cage to separate and guide the rolling elements, needle-to-needle friction generates additional heat, demanding rigorous and consistent lubrication schedules. In high-speed gearbox applications, oil mist or forced circulation is often necessary to flush wear debris away from the contact zones and manage thermal growth effectively. Furthermore, the absence of an inner ring means the shaft itself acts as the primary raceway, requiring strict hardness and geometric tolerances to prevent edge loading and premature spalling. If the shaft deflects under peak loads, the uncaged needles will concentrate stress at the edges, rapidly degrading the raceway surface [NEED_CITE: thermal expansion effects on bearing clearance].

Decoding the RNA Prefix and Precision Tolerances

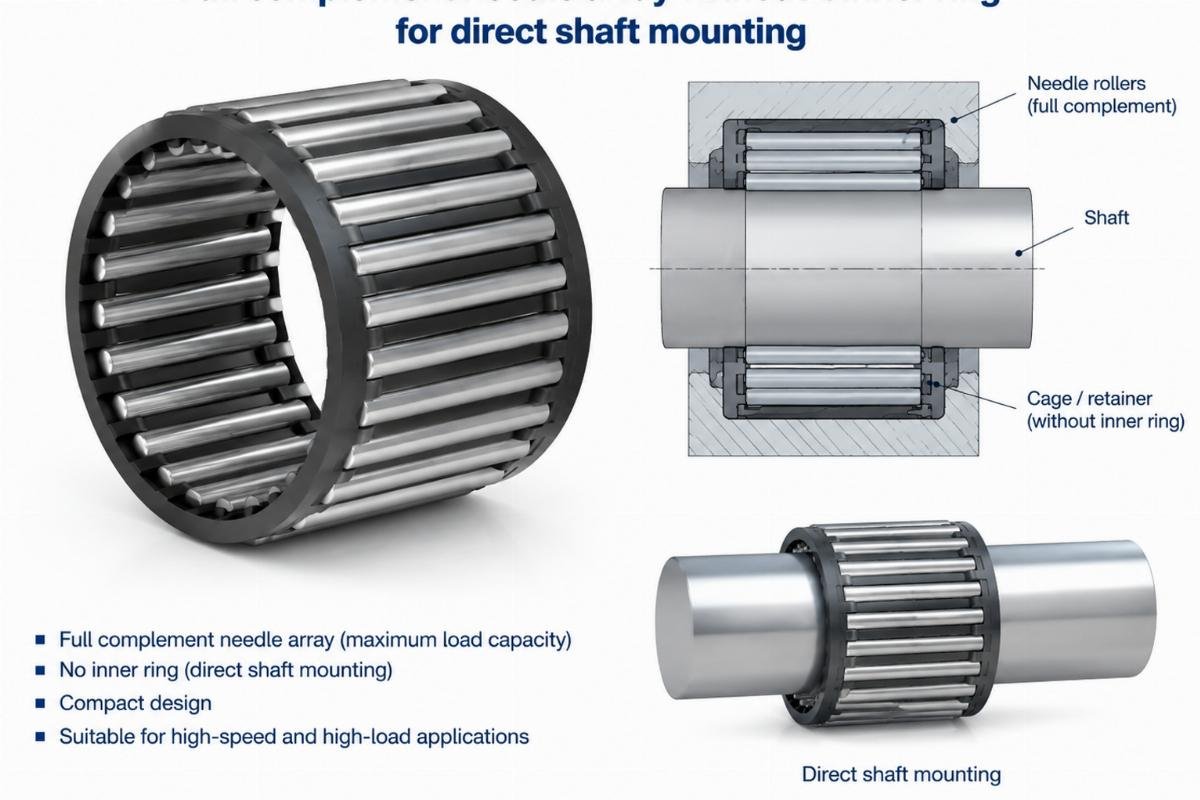

The “RNA” designation confirms this is a needle roller bearing without an inner ring, relying entirely on the hardened shaft journal for inner raceway support. This cage-less, full-complement arrangement maximizes the number of rolling elements within the 45x62x20 mm envelope, significantly boosting radial load capacity compared to caged variants. Available in P0, P6, and P5 precision classes, the tighter tolerances of P5 are critical for machine tool spindles where radial runout must be minimized to maintain machining accuracy. Available in chrome steel or stainless steel variants, the material provides the necessary core hardness to withstand heavy shock loads in construction machinery. Note that the ‘p’ suffix appears in some catalogs but remains an unverified designation requiring specific manufacturer confirmation before finalizing the order.

The Downtime Penalty of Ignoring Shaft Preparation

Failing to verify the shaft hardness and surface finish before pressing in a cage-less needle array leads to rapid spalling and unplanned downtime. When the journal is too soft or rough, the needles dig into the metal, causing catastrophic damage to both the shaft and the housing bore. Such premature failures void warranty claims and force complete assembly replacements rather than simple bearing swaps, drastically increasing maintenance costs. These scenarios perfectly illustrate the failure modes documented in standard reliability frameworks, where surface distress and abrasive wear account for a significant share of early failures [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Securing Exact Replacements Without the Guesswork

Sourcing the correct Rpna 45/62 needle roller bearing without an inner ring requires strict verification of the RNA prefix to avoid accidentally receiving an NA series with an included inner ring, which would completely alter the assembly dimensions. We provide complete traceability documentation for every batch, ensuring the selected steel metallurgy meets your facility’s stringent quality audits. Our flexible consolidation allows you to mix these precise needle arrays with deep-groove ball bearings and spherical roller bearings in a single shipment, optimizing freight costs. Additionally, our technical team reviews your shaft drawings to confirm the P5 precision class is actually necessary, preventing overspending on tight tolerances your specific application does not require.

Documentation & Authenticity

• Material inspection reports verifying steel hardness for the needle elements.
• Dimensional inspection certificates confirming P5 or P6 radial runout tolerances.
• Original batch traceability linking the Rpna 45/62 production lot to the steel mill.
• Certificate of Conformity validating the cage-less full-complement assembly.

Storage, Handling & Mounting

• Keep the Rpna 45/62 in original VCI packaging until mounting to prevent surface corrosion on exposed needles.
• Verify shaft journal roughness and hardness before pressing the cage-less array directly onto the raceway.
• Use induction heating for the outer ring if an interference fit is required, avoiding direct flame.
• Apply clean gloves during handling to prevent acidic sweat from etching the precision-ground steel surfaces.
• Ensure the shaft diameter matches the 45 mm bore tolerance strictly to prevent edge loading.

Preparing Your Technical Data for Selection Review

To ensure the Rpna 45/62 needle roller bearing configuration and precision class match your exact needs, please share the radial load profiles, operating speeds, and shaft surface finish specifications. If you are replacing an existing unit, providing the OEM equipment number allows our engineers to perform a precise cross-reference check against international catalogs. Detailing the lubrication method and housing tolerances helps us confirm whether the P0, P6, or P5 grade is optimal for your assembly. Supplying this operational data enables our technical team to validate the L10 life calculation and recommend the most reliable configuration for your specific machinery.

Frequently Asked Questions

Q: What is the functional difference between the RNA and NA series designations?

A: The RNA prefix indicates a needle roller bearing without an inner ring, meaning the shaft itself must be hardened and ground to act as the inner raceway. The NA series includes a separate inner ring, which is used when the shaft cannot be hardened to the required specification or when axial displacement is needed.

Q: How do I choose between P0, P6, and P5 precision classes for this bearing?

A: P0 is the standard class suitable for general gearboxes where slight runout is acceptable. P6 offers tighter tolerances for automotive transmissions and standard machine tools. P5 provides the highest precision for high-speed spindles and precision indexing tables, minimizing vibration and ensuring exact radial positioning during operation.

Q: What are the installation requirements for a cage-less full-complement design?

A: Installing a cage-less array requires careful alignment, as the loose needles can easily skew during pressing. We recommend using a mounting sleeve to guide the needles evenly into the housing. The shaft journal must have a smooth lead-in chamfer to prevent damaging the needle ends during installation.

Q: How can I verify the authenticity and traceability of the supplied bearings?

A: Every shipment includes a Certificate of Conformity and material inspection reports detailing the steel specifications. We also provide original batch traceability documents that link the specific production lot back to the manufacturer’s quality records, ensuring full transparency for your facility’s maintenance and audit requirements.
