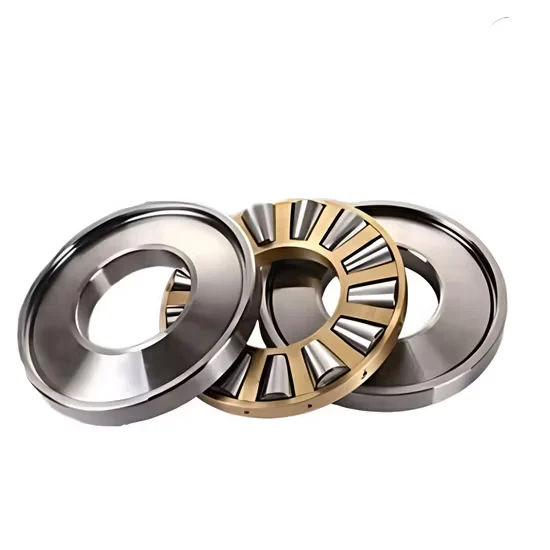

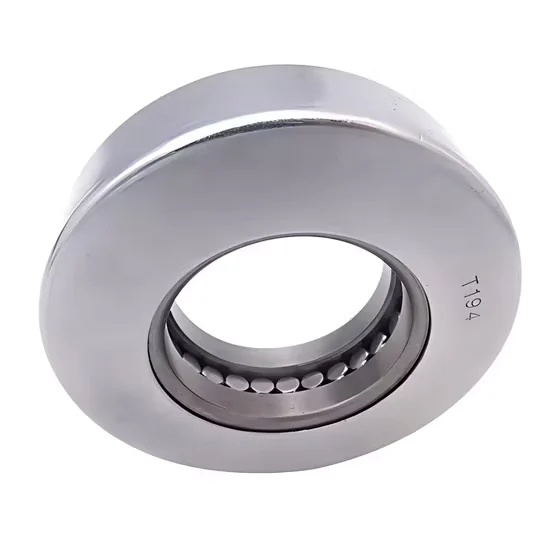

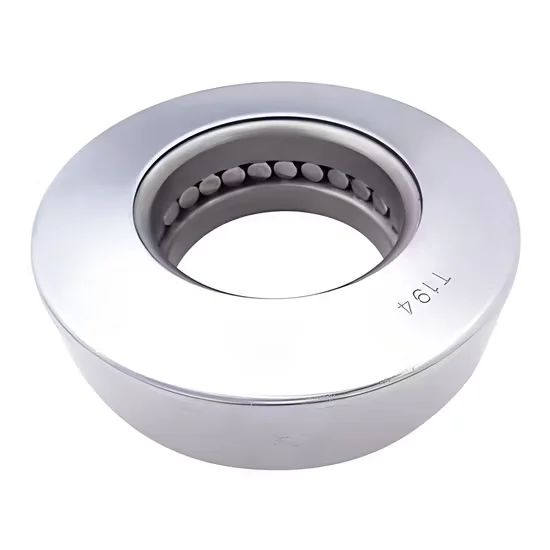

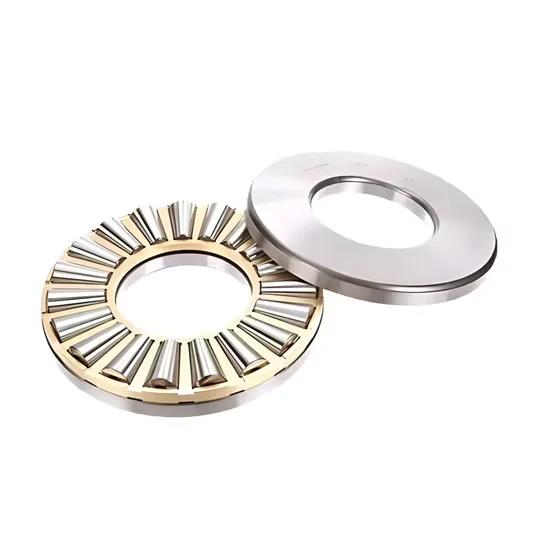

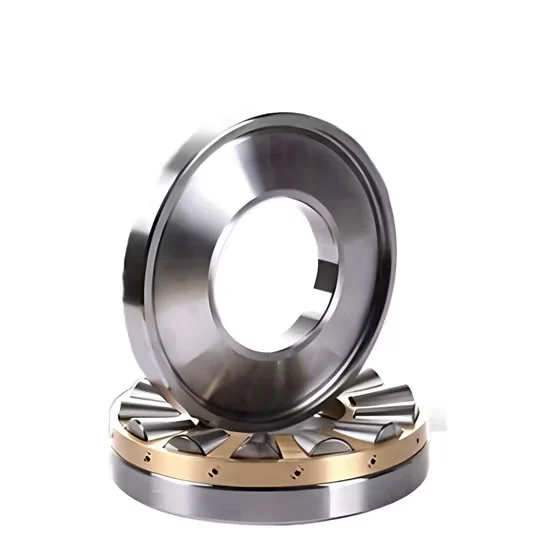

T1305ae Tapered Roller Thrust Bearing for Heavy Duty Truck King Pin A1228e1305

Cross-Reference Triangulation — We align OEM part numbers, dimensional envelopes, and load ratings to ensure the exact fitment for your heavy-duty steering assemblies.

Technical Specifications

Note: The ‘ae’ suffix is an unverified designation requiring manufacturer catalog confirmation for specific internal geometry or clearance details.

Application Suitability

Why King Pin Thrust Assemblies Fail Before the Steel Yields

Premature spalling usually stems from ignored clearance suffixes during cross-referencing, not from inadequate material strength.

When sourcing replacement parts for on-highway fleets, overlooking a single suffix character can lead to catastrophic binding under heavy downhill braking. I learned this the hard way in Chicago while tearing down a Freightliner steering axle; the thrust bearing had seized completely because the replacement ignored the specific clearance requirement for high-heat environments. A reliable T1305ae tapered roller thrust bearing must match both the dimensional envelope and the thermal expansion profile of the king pin assembly to prevent these sudden lockups. Fleet managers often assume that any bearing with the correct outer diameter will function, but the internal geometry dictates how the load is distributed across the rollers. When the contact angle or clearance is mismatched, the resulting edge loading generates excessive friction heat, rapidly degrading the lubricant and causing the raceway to spall. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Matching the Thrust Bearing to On-Highway Steering Loads

The steering axle of a loaded freight hauler transmits massive axial forces directly into the king pin thrust assembly, especially during tight cornering or when navigating uneven yard surfaces. Selecting the right T1305ae tapered roller thrust bearing ensures the single row configuration handles these peak vertical loads without compromising the steering geometry or causing excessive wear on the adjacent bushings. Our engineering team cross-checks the A1228e1305 equivalent to verify the exact roller profile and raceway angles required for your specific truck model. By validating these parameters, we ensure the bearing maintains optimal contact stress distribution, extending the service interval and reducing the total cost of ownership for commercial fleet operators.

Thermal and Contamination Challenges in Truck Axles

Heavy-duty steering systems operate in environments where road salt, moisture, and extreme temperature fluctuations are constant threats to component longevity. An open sealing type allows maintenance crews to flush out contaminants and apply custom heavy-duty greases during regular service intervals, which is vital for washing away abrasive particulates. However, this also means the bearing relies entirely on external sealing and proper lubrication schedules to prevent raceway corrosion and surface pitting. The thermal cycling from continuous highway driving to sudden heavy braking demands a precise internal clearance to accommodate shaft expansion without inducing preload. If the clearance is too tight, the thermal growth will eliminate the lubricant film, leading to metal-to-metal contact and rapid seizure. [NEED_CITE: thermal expansion effects on bearing clearance per ISO 281]

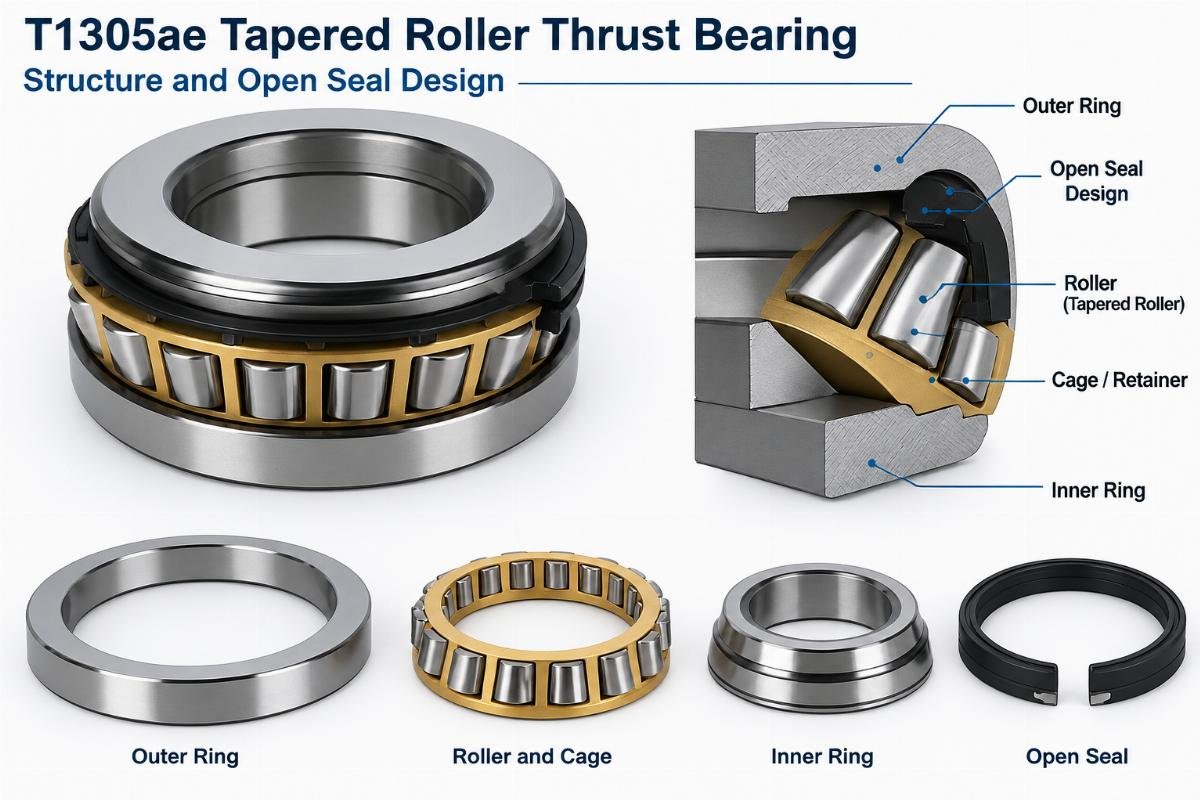

Decoding the Single Row P0 Configuration

The single row design provides a compact axial footprint, which is critical for fitting within the tight vertical constraints of a standard king pin housing while maximizing load capacity. Constructed from chrome steel, the rolling elements and raceways deliver the necessary surface hardness to resist brinelling under static parking loads and dynamic shock impacts. The P0 precision class offers standard dimensional accuracy that aligns with commercial vehicle replacement tolerances, ensuring smooth articulation without introducing excessive play into the steering linkage. Because the unit is open, it avoids the friction heat generated by contact seals, allowing it to operate efficiently in high-load, low-speed oscillating conditions typical of steering axles. This configuration prioritizes load distribution and thermal stability over ultra-high rotational speed capabilities.

The Hidden Toll of Incorrect Cross-Referencing

Substituting a generic thrust washer or ignoring the exact cross-reference equivalence often results in unplanned downtime, voided warranty claims, and compromised vehicle safety. When the internal geometry does not match the OEM specification, the bearing experiences edge loading, leading to premature spalling and eventual steering failure that can strand a loaded trailer. This catastrophic damage extends beyond the bearing itself, frequently scoring the king pin and requiring a complete, costly axle teardown at a roadside service facility. Adhering to standardized failure analysis frameworks helps identify these mismatch issues before they escalate into fleet-wide safety hazards and recurring maintenance expenses. [NEED_CITE: premature failure mechanisms in thrust applications per ISO 15243]

Sourcing Advantages for Fleet Maintenance Procurement

We specialize in aligning the exact cross-reference for the T1305ae tapered roller thrust bearing, such as verifying the A1228e1305 match, to prevent the clearance mismatches that cause early binding in heavy-duty steering knuckles. Our inventory includes massive spot stock of standard commercial vehicle part numbers, allowing for flexible consolidation from single-unit emergency orders to full container shipments for large fleet depots. Every shipment includes complete traceability documentation to confirm the chrome steel composition and heat treatment protocols used in manufacturing. We also provide technical selection support to verify axial load ratings against your specific OEM king pin specifications, ensuring the open-type bearing receives the correct lubrication guidance for its intended operating environment.

Documentation & Authenticity

• Certificate of Conformity validating the P0 precision class for commercial steering applications.
• Material inspection reports confirming chrome steel heat treatment for high axial load endurance.
• Dimensional verification documents ensuring exact fitment within standard king pin housings.
• Batch traceability records linking the open-type bearing to its specific production run.

Storage, Handling & Mounting

• Retain the original VCI packaging until installation to prevent corrosion on the open chrome steel raceways.
• Use clean lint-free gloves when handling the single row rollers to avoid moisture transfer.
• Apply the specified heavy-duty axle grease immediately after unboxing to protect the open sealing surfaces.
• Verify the king pin housing bore dimensions before pressing the P0 precision thrust assembly into place.

Technical Verification for Your Steering Application

To ensure the selected T1305ae tapered roller thrust bearing matches your fleet’s operational profile, please provide the specific OEM equipment numbers and the required cross-reference details. Sharing the expected axial loads, operating temperatures, and lubrication intervals allows our team to verify the L10 life and confirm the internal clearance suitability. This technical review guarantees the replacement unit integrates flawlessly into your on-highway steering systems.

Frequently Asked Questions

Q: How to verify cross-reference compatibility for the T1305ae tapered roller thrust bearing and A1228e1305?

A: Compatibility requires checking the dimensional envelope, axial load ratings, and internal geometry against the OEM specifications. We cross-check the A1228e1305 equivalent to ensure the single row configuration and chrome steel construction match your specific heavy-duty truck steering assembly, preventing fitment issues and premature wear.

Q: What are the common failure modes of king pin thrust bearings in on-highway trucks?

A: Common failures include edge loading, premature spalling, and thermal seizure caused by inadequate lubrication or incorrect clearance selection. In heavy-duty steering systems, contamination ingress into open-type bearings and excessive axial shock loads during braking also accelerate raceway degradation and compromise steering articulation.

Q: How to select the right lubrication for open-type tapered roller thrust bearings?

A: Open bearings require high-viscosity, extreme-pressure greases designed for heavy-duty chassis applications. The lubricant must resist water washout and maintain its film strength under high axial loads. Regular flushing intervals are critical to remove road debris and moisture from the exposed chrome steel raceways.

Q: What is the difference between P0 precision and higher precision classes for truck applications?

A: P0 precision provides the standard dimensional and running accuracy required for commercial vehicle steering axles, balancing cost and performance. Higher precision classes offer tighter tolerances for high-speed or ultra-precise machinery, but they are generally unnecessary for the low-speed, high-load oscillating environment of a heavy-duty king pin assembly.

Q: How to properly install and adjust preload for single row king pin thrust bearings?

A: Proper installation involves ensuring the king pin housing bore is clean and dimensionally accurate before seating the bearing. Preload or endplay must be adjusted according to the OEM axle specifications using the designated adjusting nuts, ensuring the single row rollers are properly seated without inducing excessive friction or steering bind.
