DIN 5412 Cylindrical Roller Bearings: Brand Cross Reference Supplier

Identical outer dimensions do not guarantee interchangeability.

A true DIN 5412 cylindrical roller bearings brand cross reference requires matching internal clearance codes and cage material specifications, not just bore and outside diameter. Ignoring thermal expansion tolerances and cage load limits in heavy-duty applications leads to premature seizure, regardless of the brand prestige.

I learned this the hard way in a Nigerian cement plant. The client needed a replacement for a crusher main shaft bearing. I matched the DIN 5412 external dimensions perfectly with a premium European brand. I did not verify the internal clearance or the cage design. Within a week, the bearing seized due to thermal expansion in the high-heat environment, causing a complete production line shutdown. The cost of emergency air freight and downtime far exceeded the price difference between a standard and a correctly specified heavy-duty unit. That failure reshaped my approach to sourcing. [NEED_CITE: impact of incorrect internal clearance on bearing life in high-temperature applications]

Sourcing replacements is not about finding the cheapest logo. It is about ensuring the internal geometry survives the specific operational stresses. This guide breaks down the critical factors often overlooked in multi-brand sourcing.

What Defines a True DIN 5412 Cross Reference?

External dimensions are merely the baseline for fit, not function.

Many buyers assume that if the inner diameter, outer diameter, and width match the DIN 5412 standard, any brand will work. This is a dangerous misconception. While the external envelope ensures the bearing fits into the housing and onto the shaft, the internal architecture determines whether it survives the load. Different manufacturers use varying raceway profiles, roller crowning, and contact angles even within the same DIN standard. [NEED_CITE: variations in internal geometry among major bearing manufacturers per ISO standards]

Consider the case of a mining conveyor pulley upgrade. A maintenance team swapped a standard brand for a premium alternative, relying solely on the part number prefix. The external dimensions were identical. However, the original bearing used a micro-polished raceway finish designed for dusty environments, while the replacement had a standard finish. The rougher surface accelerated dust ingress and fatigue spalling. The replacement failed in half the expected lifecycle.

When evaluating a DIN 5412 cylindrical roller bearings brand cross reference, you must request the technical datasheet for the specific batch. Do not rely on generic catalog data. The manufacturing tolerances for radial internal clearance can vary significantly between brands, even if both claim compliance with DIN 5412. [NEED_CITE: tolerance ranges for radial internal clearance in cylindrical roller bearings]

How Do Internal Clearances Impact Heavy-Duty Swaps?

Ignoring thermal expansion guarantees seizure under load.

Internal clearance is the space between the rollers and the raceways when the bearing is unloaded. In heavy-duty applications like crushers or steel mills, bearings generate significant heat. This heat causes the inner ring to expand more than the outer ring, reducing the internal clearance. If the initial clearance is too tight, the bearing will run hot, lose all clearance, and seize. [NEED_CITE: relationship between operating temperature and radial internal clearance reduction]

Standard bearings usually come with Normal (CN) clearance. Heavy-duty applications often require C3 or C4 clearance to accommodate thermal expansion. I once sourced a batch of bearings for a paper mill dryer section. The client specified a premium brand but did not specify the clearance code. The supplier shipped CN clearance units. During operation, the high temperatures caused the inner rings to expand, eliminating the clearance. The bearings overheated and failed within days. Switching to C3 clearance resolved the issue immediately.

Selecting the correct clearance is not a guess. It requires calculating the expected temperature differential between the inner and outer rings. For DIN 5412 cylindrical roller bearings brand cross reference purposes, you must ensure the replacement brand offers the same or greater clearance class as the original. Do not assume that a “heavy-duty” label from one brand equates to C3 clearance from another. Always verify the suffix code. [NEED_CITE: calculation methods for required internal clearance based on thermal expansion]

Why Does Cage Material Matter in Brand Alternatives?

Matching the cage type to vibration and temperature profiles prevents premature failure.

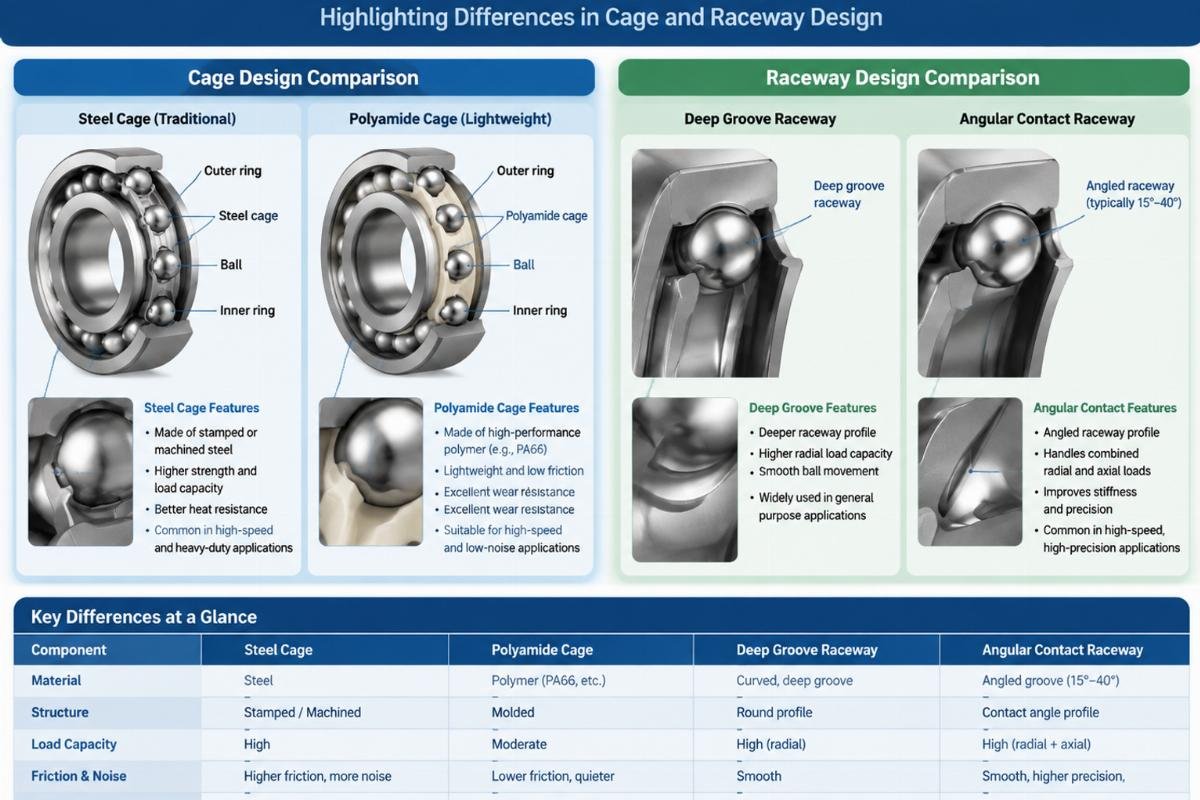

The cage holds the rollers in place and guides them. In high-vibration or high-speed applications, the cage material is critical. Common materials include stamped steel, machined brass, and polyamide. Each has distinct limits. Stamped steel is robust but can be noisy. Brass is durable and handles higher temperatures but is heavier. Polyamide is lightweight and quiet but has lower temperature limits. [NEED_CITE: mechanical properties and temperature limits of common bearing cage materials]

A European wind farm operator experienced repeated failures in the gearbox bearings. The original equipment used brass cages. To cut costs, they switched to a cheaper alternative with polyamide cages. The increased vibration and heat in the gearbox exceeded the polyamide’s thermal limit, causing the cages to deform and fail. The cost of replacing the gearbox far outweighed the savings on the bearings.

When using a DIN 5412 cylindrical roller bearings brand cross reference, check the cage material suffix. If the original bearing uses a machined brass cage (often denoted by M or MB), do not substitute it with a stamped steel or polyamide cage unless you have verified that the application conditions allow it. High-vibration environments, such as vibrating screens or crushers, typically require robust brass or steel cages to withstand the dynamic loads. [NEED_CITE: failure modes associated with incorrect cage material selection in high-vibration applications]

How to Verify Authenticity and Specs When Sourcing?

Requesting traceability docs and technical datasheets is non-negotiable.

The market is flooded with counterfeit and mislabeled bearings. A box may say SKF or FAG, but the contents could be inferior copies. Even genuine products can be mismatched if the supplier does not understand the technical requirements. Verification goes beyond checking the logo. It involves validating the supply chain and the technical documentation. [NEED_CITE: industry guidelines for verifying authentic industrial bearings]

Start by requesting the Certificate of Origin and the material test report for the specific batch. Reputable suppliers can provide these documents. Next, ask for the technical datasheet that specifies the internal clearance, cage material, and precision class. Compare these specs against your original equipment manufacturer (OEM) requirements. Do not accept a generic catalog page as proof.

For a reliable DIN 5412 cylindrical roller bearings brand cross reference, work with suppliers who offer technical support, not just order processing. A competent supplier will ask about your application conditions, such as load, speed, and temperature, before recommending a replacement. They will help you navigate the differences between brands to ensure a safe swap. Avoid suppliers who cannot explain the difference between C3 and CN clearance or who refuse to provide batch-specific documentation. [NEED_CITE: best practices for supply chain verification in industrial MRO procurement]

Conclusion

Precision in specification prevents catastrophe in operation.

Cross-referencing DIN 5412 cylindrical roller bearings is a technical exercise, not just a logistical one. Matching external dimensions is only the first step. Verifying internal clearance, cage material, and raceway finish ensures the replacement bearing can handle the specific thermal and mechanical stresses of your application. Relying on brand reputation alone is insufficient without technical validation.

Always demand detailed technical datasheets and traceability documentation. Engage with suppliers who provide engineering support to verify your selection. This diligence minimizes downtime and protects your equipment from premature failure. A correct DIN 5412 cylindrical roller bearings brand cross reference saves money by preventing costly breakdowns, not by lowering the initial purchase price.
