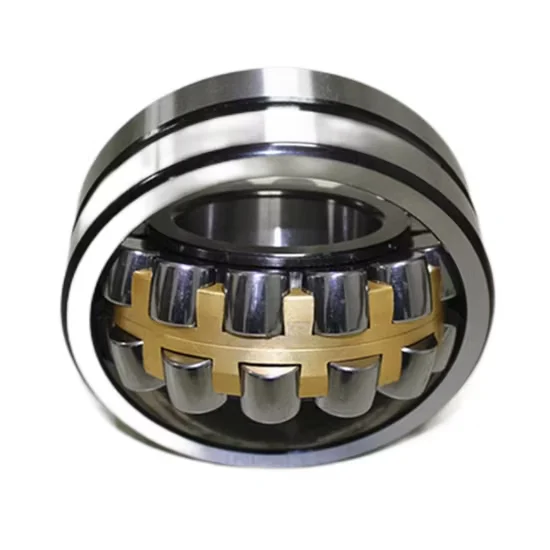

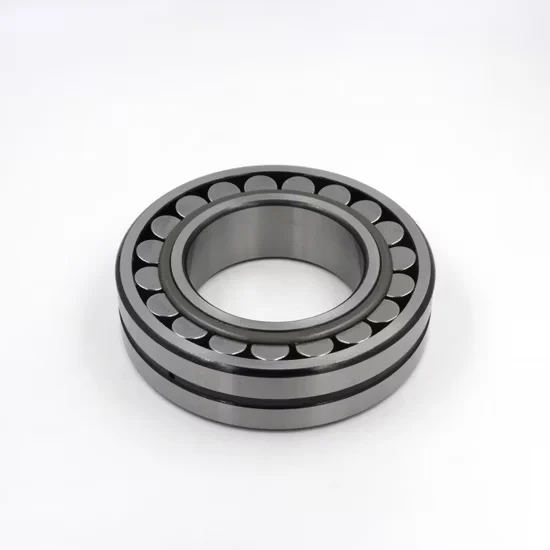

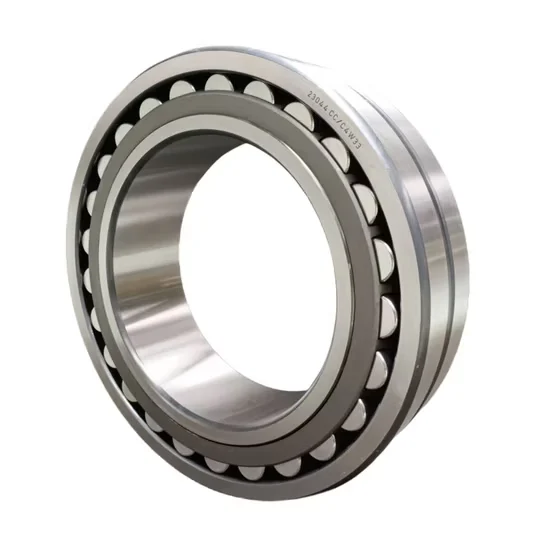

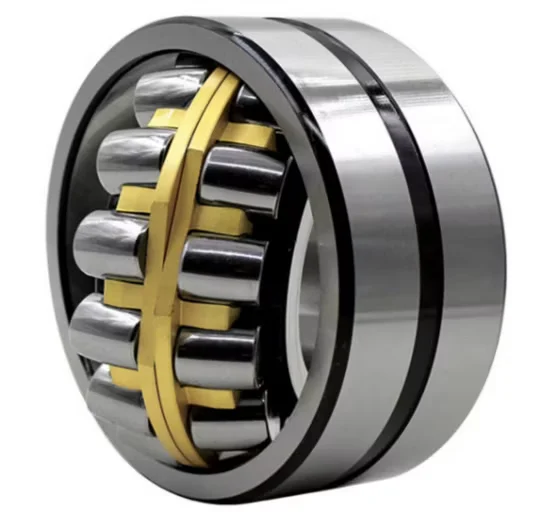

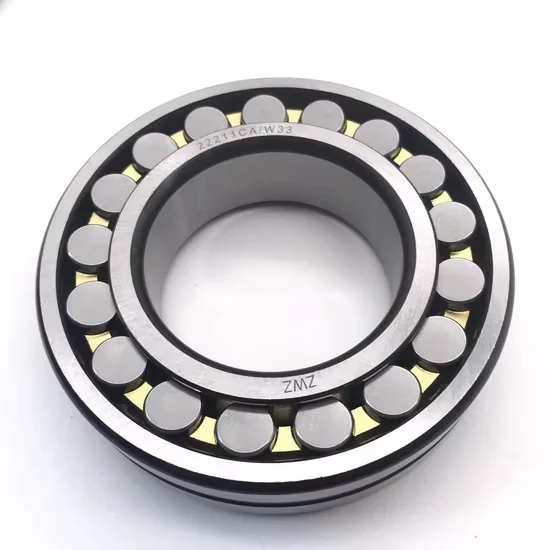

22228 Self-Aligning Roller Bearing C3 Clearance Anti-Vibration

Multi-Brand Sourcing Consolidation — Procure KOYO, NTN, and NSK variants of this exact designation in a single mixed-brand shipment without juggling multiple vendors.

Technical Specifications

Application Suitability

Why Standard Clearance Fails in High-Heat Crusher Environments

Thermal expansion demands extra internal clearance to prevent catastrophic seizure.

When replacing a 22228 spherical roller bearing in a cement plant crusher, ignoring the thermal dynamics of the housing leads to rapid failure. I once oversaw an installation in Nigeria where a standard clearance unit was pressed into a high-heat zone. The heat transfer from the process material expanded the inner ring, eliminating the internal gap and locking the rolling elements. [NEED_CITE: thermal expansion effects on bearing internal clearance] Selecting the correct clearance class is not just a catalog exercise; it is the difference between continuous operation and an unplanned shutdown.

Matching Internal Geometry to Heavy-Duty Vibratory Loads

The double-row configuration of this 22228 spherical roller bearing distributes extreme radial forces across a wider contact area. In vibrating screens and crushers, the self-aligning structure automatically compensates for shaft deflection and housing misalignment. Our supply chain ensures that whether you specify KOYO, NTN, or NSK, the internal raceway geometry consistently handles the shock loads typical in mineral processing circuits.

Managing Heat, Dust, and Misalignment in Mineral Processing

Crushers and vibrating screens subject rotating elements to severe radial loads combined with intense vibration. The ambient temperature near the crushing chamber often rises significantly, altering the lubricant viscosity and demanding a C3 radial internal clearance to accommodate thermal growth. Furthermore, airborne particulate matter in mining environments requires effective sealing solutions or external housing seals to prevent abrasive contamination. [NEED_CITE: bearing failure modes in vibrating machinery per ISO 15243] Proper lubrication intervals and contamination control are critical to maintaining the dynamic load capacity under these harsh conditions.

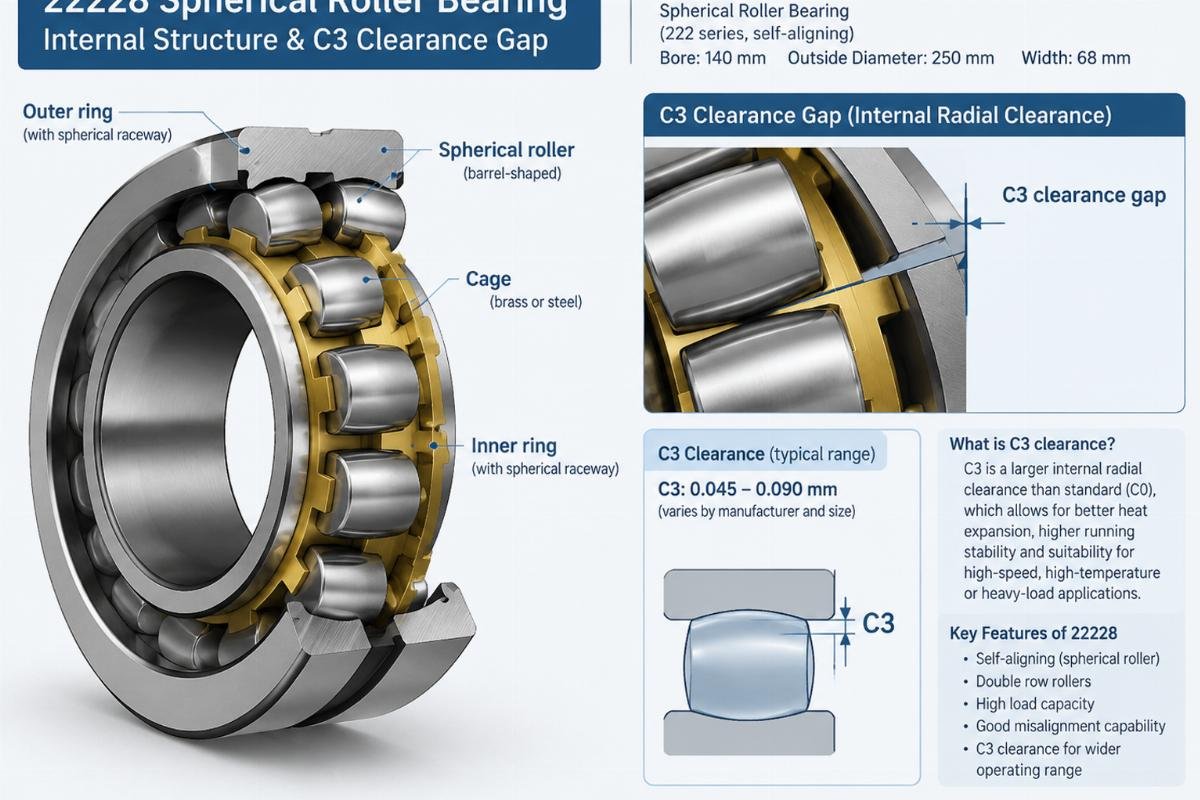

Decoding the C3 Suffix for Thermal and Load Compensation

The C3 designation on this 22228 spherical roller bearing indicates a radial internal clearance greater than the standard CN class. In heavy-duty applications like cement kilns or crusher shafts, the inner ring typically operates at a higher temperature than the outer ring due to heat conduction from the process. This temperature differential causes the inner ring to expand more than the outer ring, reducing the operational clearance. Starting with a C3 clearance ensures that the bearing retains a positive operational gap under load and heat, preventing the rolling elements from skidding or binding. Additionally, the self-aligning roller structure tolerates static misalignment during installation, protecting the edges of the rollers from stress concentrations.

The Financial Impact of Ignoring Thermal Expansion Dynamics

Specifying a standard clearance unit for a high-temperature application inevitably leads to premature failure. When the internal clearance collapses, the rolling elements experience excessive friction, generating even more heat in a destructive feedback loop. This results in catastrophic cage failure, raceway spalling, and eventual shaft seizure. According to failure analysis frameworks, a significant share of premature failures in heavy machinery stems from incorrect clearance selection rather than material defects. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] The resulting unplanned downtime and secondary damage to the housing far exceed the initial component cost.

Securing Traceable Heavy-Duty Components Across Global Brands

Sourcing the correct clearance class across different manufacturers can be challenging, as suffix conventions occasionally vary. We provide exact cross-reference validation to ensure your requested C3 clearance matches the specific internal geometry of KOYO, NTN, or NSK equivalents. Our inventory covers thousands of standard and special part numbers, allowing us to consolidate mixed-brand orders into a single shipment. Every unit is backed by original batch traceability documentation, and our technical team offers post-installation failure analysis to optimize your future maintenance schedules.

Documentation & Authenticity

• Original manufacturer batch traceability certificates confirming the exact production date and heat number.
• Official brand QR code verification to authenticate the C3 clearance specification before installation.
• Material inspection reports validating the Chrome Steel Gcr15 composition and hardness parameters.
• Dimensional and running accuracy inspection reports ensuring the self-aligning geometry meets factory tolerances.

Storage, Handling & Mounting

• Keep the double-row bearing in its original moisture-barrier packaging until mounting to protect the Gcr15 raceways from humidity.
• Use induction heating for the inner ring installation, strictly monitoring the temperature to preserve the C3 clearance integrity.
• Avoid dropping the self-aligning roller assembly, as impact shocks can brinell the Chrome Steel raceways and cause early vibration.
• Apply clean gloves during handling to prevent acidic sweat from initiating micro-corrosion on the exposed outer ring surfaces.

Providing Operational Data for Precision Selection

To ensure the selected unit perfectly matches your machinery, please share the specific radial and axial loads, operating speeds, and housing temperature profiles. Providing the original equipment manufacturer part number allows our engineering team to perform a precise cross-reference check. Detailing the environmental exposure, such as dust levels or moisture, helps us recommend the optimal sealing arrangement and lubrication strategy for your specific application.

Frequently Asked Questions

Q: What does the C3 clearance suffix indicate for heavy-duty applications?

A: The C3 suffix denotes a radial internal clearance larger than the standard CN class. This extra gap is essential in high-temperature or heavy-load environments, such as crushers, where thermal expansion of the inner ring would otherwise eliminate the clearance and cause the bearing to seize during operation.

Q: How to verify the authenticity of multi-brand bearings?

A: Authenticity is verified by requesting original batch traceability documentation and utilizing the manufacturer’s official mobile application or QR code scanning tools. We also provide material inspection reports and dimensional check certificates to ensure the internal geometry and steel composition meet the original factory specifications.

Q: What are the differences between CN, C3, and C4 clearance classes?

A: CN represents standard internal clearance suitable for general applications. C3 provides greater clearance for environments with thermal expansion or heavy radial loads, while C4 offers an even larger gap for extreme heat or specific interference fits. Selecting the wrong class can lead to premature failure or excessive vibration.

Q: How to ensure cross-referenced models align in clearance and internal structure?

A: Cross-referencing requires verifying not just the basic dimension and load ratings, but also the internal geometry and clearance suffixes. Our technical team consults official manufacturer catalogs to ensure that equivalent models from different brands maintain the exact C3 clearance and double-row self-aligning structure required for your specific machinery.
