Custom Steel Pillow Block Bearing UCP204 UCP205 UCP206 UCP207 Low Friction [WARN] draft identifier mismatch

Official App QR Verification — Every multi-brand pillow block unit ships with scannable authenticity tags linked to the original manufacturer’s database.

Technical Specifications

Application Suitability

Why Suffix Guesswork Destroys OZD KOYO NTN NSK UCP204, UCP205, UCP206, UCP207, etc. pillow block bearing Lifespan

Matching the exact seal and clearance code to the operating environment prevents catastrophic housing failures.

Sourcing teams often focus solely on the basic bore size, ignoring the critical suffix variations that dictate seal effectiveness and internal clearance. I once supplied a batch for a dusty conveyor application where the wrong shield type allowed fine particulate ingress, leading to seized shafts across the entire plant. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] highlights that contamination remains a primary culprit in premature housing unit seizures.

Aligning Cast Steel Housings with Fixed Machinery Demands

The OZD KOYO NTN NSK UCP204, UCP205, UCP206, UCP207, etc. pillow block bearing series provides a rigid mounting foundation for stationary equipment. By utilizing a P-type cast steel block, these units absorb moderate radial loads while maintaining precise shaft alignment. Our consolidation service ensures that mixed-brand requirements for large-scale fixed machinery projects are fulfilled with complete traceability, eliminating the friction of coordinating multiple suppliers.

Managing Dust, Moisture, and Continuous Radial Loads

Fixed machinery and conveyor systems frequently operate in environments laden with abrasive dust or high humidity, demanding rigorous sealing solutions. The deep groove raceway handles continuous radial forces, but the insert bearing’s seal type must be matched to the specific contamination level to prevent grease washout. Furthermore, low vibration design is essential to prevent resonance from transferring into the cast steel housing, which could otherwise accelerate structural fatigue over time. [NEED_CITE: bearing life calculation methods per ISO 281] Proper lubrication intervals and selecting the correct contact seal are absolutely critical to sustaining low noise running over extended shifts and preventing unexpected line stoppages.

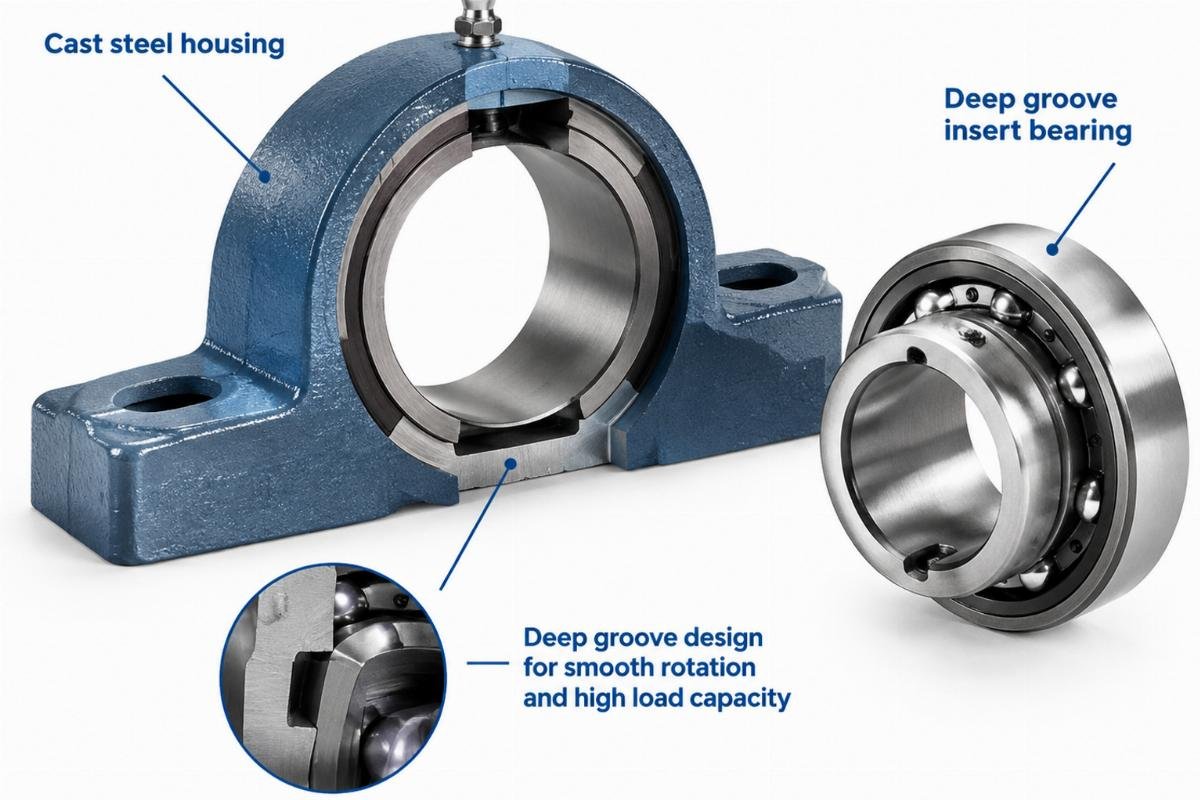

Decoding the P-Block and Deep Groove Architecture

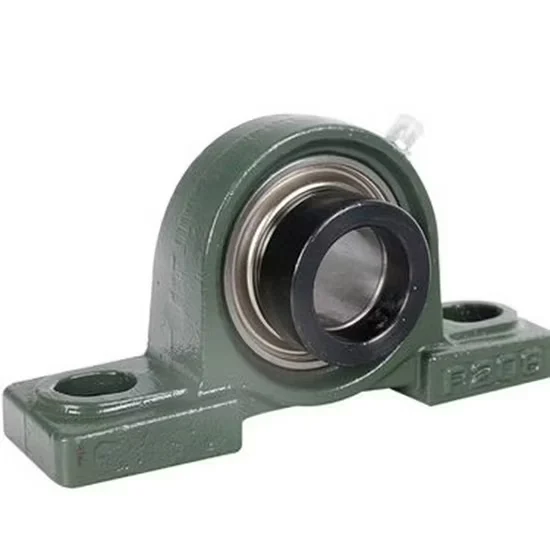

The P-type bearing block model offers a flat base with dual mounting holes, providing a stable footprint for easy to mount and install configurations on flat surfaces. Inside the housing, the single row deep groove raceway accommodates both radial loads and light axial displacement, making it versatile for agricultural and textile applications. The cast steel material ensures the housing can withstand the clamping forces of set screws without deforming. Since specific suffix details dictate the exact internal clearance and seal configuration, verifying these against the OEM manual is mandatory before finalizing the order.

The Financial Drain of Mismatched Housing Clearances

Specifying an incorrect internal clearance or seal variant for a high-vibration conveyor drive can lead to unplanned downtime and catastrophic damage to the driven equipment. When the insert bearing overheats due to inadequate clearance compensation for thermal expansion, the shaft can seize inside the cast steel block. This not only destroys the bearing but often requires replacing the entire mounting assembly and realigning the connected gearbox. [NEED_CITE: economic impact of unplanned machinery downtime] Such failures void warranties and severely disrupt production schedules.

Securing Traceability for Multi-Brand Pillow Block Orders

We specialize in resolving the bottleneck of sourcing genuine, mixed-brand pillow block units with flexible MOQs for complex projects. Every OZD KOYO NTN NSK UCP204, UCP205, UCP206, UCP207, etc. pillow block bearing we ship includes original factory batch traceability to guarantee absolute authenticity. Our technical team cross-references housing dimensions and insert suffixes to prevent the exact mismatch errors that cause severe field failures. We provide consolidated global shipping and rigorous dimensional inspection reports, ensuring your maintenance inventory is always deployment-ready and fully compliant with your engineering standards.

Documentation & Authenticity

• Certificate of Conformity matching the specific cast steel housing batch and insert bearing lot numbers.
• Original factory batch traceability documents verifying the production date and material heat codes.
• Official app QR verification tags attached to each unit for instant authenticity checks on site.
• Dimensional inspection reports confirming the P-block mounting hole spacing and bore tolerances.
• Running accuracy inspection validating the low vibration and low noise running characteristics before dispatch.

Storage, Handling & Mounting

• Keep the cast steel housing in its original packaging until installation to prevent moisture ingress into the deep groove raceway.
• Use clean gloves when handling the insert bearing to avoid transferring skin oils that could compromise the low friction surfaces.
• Align the P-type bearing block base precisely before tightening set screws to avoid inducing internal preload on the single row elements.
• Verify the seal type matches the site contamination level before mounting, as incorrect shields will fail in dusty agricultural environments.
• Apply the recommended grease volume through the housing fitting, ensuring not to overfill and blow out the low noise running seals.

Engineering Review for Fixed Machinery Applications

To ensure the selected housing unit perfectly matches your fixed machinery or conveyor system, please provide the exact radial and axial load profiles along with the operating speed. Sharing the OEM equipment model number allows our team to perform a precise cross-reference and verify the required housing block dimensions. Detail the environmental conditions, such as dust exposure or moisture levels, so we can confirm the optimal seal configuration and internal clearance for your specific application.

Frequently Asked Questions

Q: How to verify the authenticity of multi-brand pillow block bearings?

A: We provide official app QR verification tags and original factory batch traceability documents with every shipment. You can scan the QR code directly on the packaging to confirm the production batch, ensuring the OZD KOYO NTN NSK UCP204, UCP205, UCP206, UCP207, etc. pillow block bearing meets genuine manufacturer specifications.

Q: What are the cross-reference considerations for UCP series housing dimensions?

A: When cross-referencing P-type bearing block models, it is crucial to verify the mounting hole spacing, shaft center height, and set screw thread specifications. Different manufacturers may use slight variations in housing footprints, so providing your existing OEM equipment drawings ensures we supply a dimensionally exact replacement without requiring base plate modifications.

Q: How to select the right seal and lubrication for fixed machinery applications?

A: For dusty environments like agricultural or conveyor systems, contact rubber seals are necessary to block particulate ingress, whereas non-contact shields suit cleaner textile machines. We review your specific contamination and temperature data to recommend the appropriate factory grease fill and seal suffix, preventing premature washout or overheating during continuous operation.

Q: How to interpret suffix meanings and dimension codes for pillow block units?

A: The base code indicates the housing style and bore size, while suffixes dictate internal clearance and locking mechanisms. Since some suffix variations require manufacturer catalog confirmation, our engineering team cross-checks your operational parameters against official brand catalogs to decode the exact configuration needed for your specific load and speed requirements.
