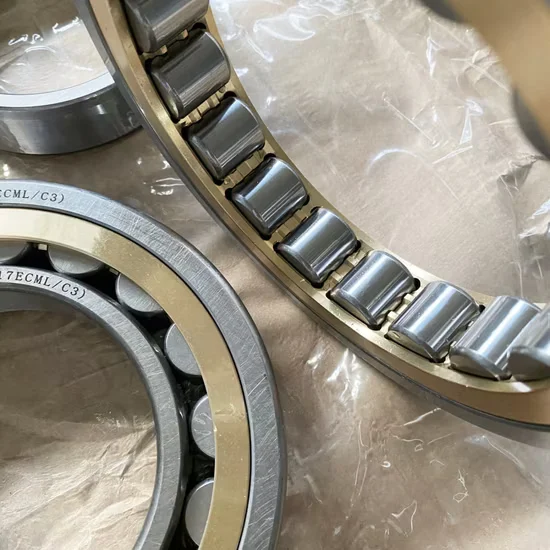

Nj2309em Nj2310et Cylindrical Roller Bearings for Rolling Mills [WARN] draft identifier mismatch

Unified Multi-Brand Sourcing — Consolidate premium and domestic equivalents for your rolling mill maintenance in a single shipment without juggling multiple vendors.

Technical Specifications

Application Suitability

Why Standard Cages Shatter Inside the Nj2309em cylindrical roller bearing Housing

Vibration and thermal expansion rapidly destroy pressed steel cages under continuous heavy radial loads.

Years ago, while conducting failure analysis at a Vietnamese steel plant, I dismantled a seized roll neck bearing where fragmented cage debris had completely locked the rolling elements. The brass retainers had fractured due to severe torsional vibrations during billet entry, turning the internal cavity into a grinding chamber. That catastrophic breakdown highlighted how inadequate cage designs inevitably lead to unplanned downtime in demanding metallurgical environments. When the rolling elements lose precise guidance, edge loading occurs instantly, tearing the raceway surfaces and generating massive heat spikes [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Procurement engineers often overlook the cage material, focusing solely on the steel grade, yet the cage is the first component to fail under dynamic shock conditions.

Aligning Component Selection with Mill Operating Realities

Supplying the correct Nj2309em cylindrical roller bearing requires matching the internal geometry to the specific rolling stand. Our engineering team cross-references OEM equipment manuals to ensure the reinforced raceway profiles and brass cage clearances perfectly align with your mill’s continuous casting and hot rolling parameters. Many maintenance teams mistakenly install standard clearance variants in high-heat zones, leading to rapid seizure once the shaft expands. By analyzing the specific roll neck dimensions and housing fits, we prevent these costly installation errors and ensure the component handles the extreme radial forces generated during the reduction process.

Managing Thermal Gradients and Shock Loading

Roll neck applications subject components to immense radial forces combined with severe thermal gradients from the heated billets. These fluctuating temperatures drastically alter internal clearance, demanding precise lubrication strategies to prevent metal-to-metal contact. Furthermore, shock loads during billet entry can induce micro-pitting if the raceway hardness and cage stability are insufficient. The continuous ingress of cooling water and scale dust further complicates the operating environment, requiring heavy-duty external sealing solutions to protect the open bearing design. Without adequate oil film thickness maintained by high-viscosity circulation systems, the boundary lubrication regime will quickly degrade the precision-ground surfaces [NEED_CITE: thermal expansion effects on internal bearing clearance].

Decoding the Reinforced Geometry and Cage Architecture

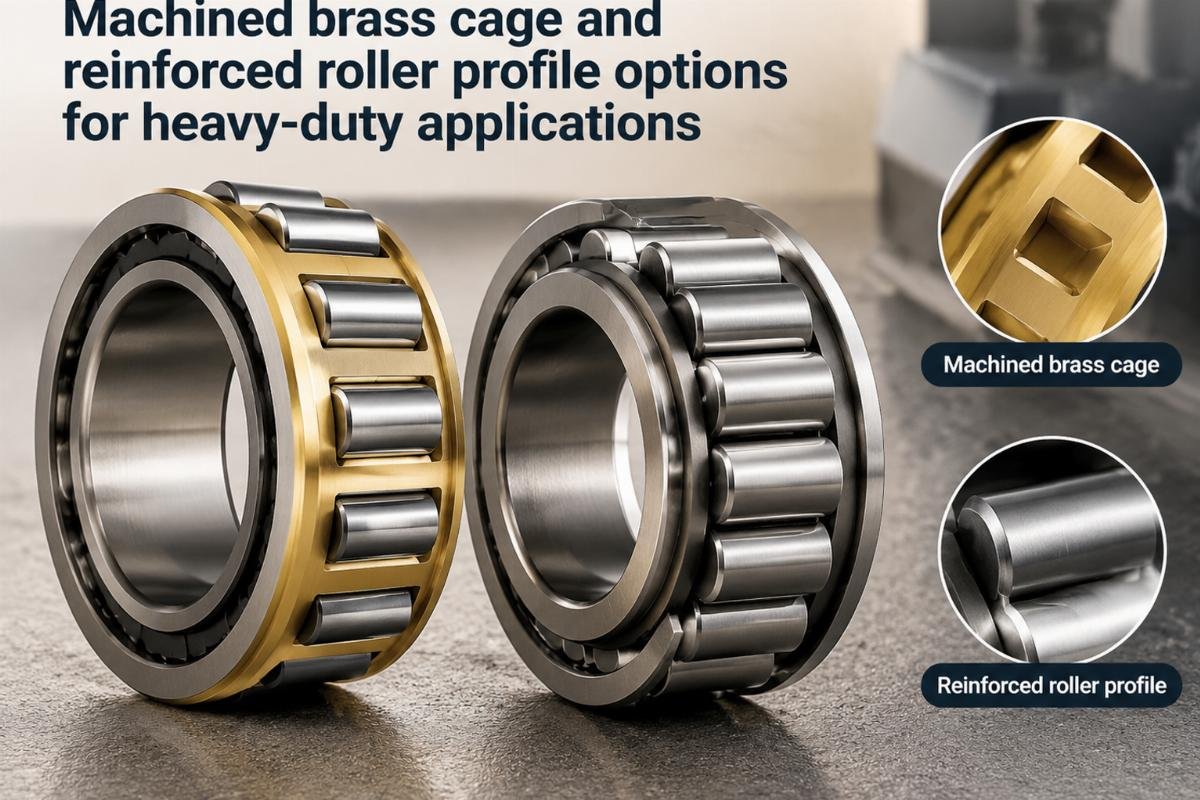

The ‘E’ suffix indicates a reinforced internal design, optimizing the roller profile and raceway contact area to significantly boost radial load-carrying capacity. This modified contact geometry distributes the immense roll separating forces more evenly across the rolling elements, reducing localized Hertzian stress. Complementing this, the ‘m’ suffix designates a machined brass cage, which provides superior structural integrity and damping characteristics compared to pressed steel alternatives. This specific cage material maintains precise roller guidance even under high-speed vibrations and heavy shock loads, preventing the rollers from skewing inside the pocket. The use of premium Chrome Steel Gcr15 / 100cr6 ensures the rings and rolling elements achieve the necessary through-hardening depth for extended fatigue life, resisting subsurface crack propagation under continuous cyclic loading.

The Financial Drain of Premature Raceway Spalling

Selecting an under-specified alternative often results in catastrophic damage to the roll neck housing and adjacent seals. According to ISO 281 fatigue life calculation frameworks, ignoring the dynamic load requirements leads to noticeably shortened service intervals and frequent line stoppages. Such premature failures not only void equipment warranties but also escalate maintenance costs far beyond the initial component savings [NEED_CITE: fatigue life calculation principles per ISO 281]. When a cage collapses, the resulting secondary damage usually requires machining the housing bore or replacing the entire roll assembly, turning a simple scheduled swap into a multi-day emergency repair operation that halts the entire production line.

Securing Traceable Quality for Critical Mill Components

We maintain massive spot inventory covering thousands of standard part numbers, ensuring urgent maintenance requirements for rolling mills are met without typical multi-week lead times. Our cross-brand equivalent model consultation prevents costly mismatches when replacing legacy OEM parts with modern equivalents, verifying that the internal geometry matches the original design intent. Every shipment includes complete traceability documentation, verifying the metallurgical integrity of the Gcr15 / 100cr6 steel against certified heat treatment logs. Furthermore, our flexible consolidation services allow you to mix this Nj2309em cylindrical roller bearing with other maintenance spares in a single container, optimizing your global shipping costs while providing pre-shipment inspection services to guarantee dimensional accuracy before the cargo leaves the port.

Documentation & Authenticity

• Original batch traceability records confirming the specific heat treatment lot for the Gcr15 rings.
• Material inspection reports verifying the chemical composition of the Chrome Steel Gcr15 / 100cr6.
• Dimensional and running accuracy inspection reports confirming the internal clearance class before dispatch.
• Certificate of Conformity validating the reinforced ‘E’ internal geometry against manufacturer specifications.

Storage, Handling & Mounting

• Keep the machined brass cage protected from corrosive atmospheres; the open design requires strict humidity control during storage.
• Use induction heating for mounting the inner ring, ensuring the Gcr15 material expands uniformly without compromising the hardened raceway.
• Verify the reinforced ‘E’ roller profile alignment during installation to prevent edge loading on the raceway shoulders.
• Apply the specified high-temperature grease directly to the brass cage pockets, as the open design relies entirely on external lubrication.

Engineering Review and Technical Validation

To ensure optimal performance, please share your specific radial loads, operating temperatures, and rotational speeds for L10 life recalculation. Providing the original OEM equipment number allows our technical team to perform precise cross-reference verification and confirm the correct internal clearance class for your rolling mill application.

Frequently Asked Questions

Q: What do the ‘E’ and ‘m’ suffixes indicate for this specific designation?

A: The ‘E’ suffix denotes a reinforced internal design with optimized roller and raceway profiles for higher load capacity. The ‘m’ suffix specifies a machined brass cage, which offers superior strength, vibration damping, and high-speed stability compared to standard pressed steel cages in heavy-duty rolling mill environments.

Q: How can we verify the material authenticity of the supplied components?

A: We provide comprehensive traceability documentation with every order. This includes material inspection reports detailing the chemical composition of the Chrome Steel Gcr15 / 100cr6, alongside original batch heat treatment records, ensuring full metallurgical transparency and compliance with international quality standards.

Q: What are the cross-reference equivalents across premium global brands?

A: Our engineering team provides detailed cross-reference consultations to match this designation with equivalent models from premium global manufacturers. By analyzing your specific load and speed parameters, we identify exact dimensional and internal geometry substitutes, ensuring direct integration into your existing rolling mill equipment without modification.

Q: How do we select the correct internal clearance for rolling mills?

A: Rolling mills generate significant heat, requiring larger internal clearances to compensate for thermal expansion of the inner ring. Share your operating temperature gradients and mounting tolerances with our technical team, and we will calculate the precise clearance class needed to prevent internal preload and premature failure.

Q: When should we choose a machined brass cage over pressed steel?

A: Machined brass cages are essential for applications involving heavy shock loads, high vibrations, or rapid acceleration, such as rolling mill roll necks. They provide better roller guidance and structural rigidity, whereas pressed steel cages are generally limited to lighter, steady-load conditions where extreme vibration damping is not required.
