Separable Cylindrical Roller Bearing for Easy Installation and Maintenance

Authentic QR Verification — Every shipped batch includes scannable manufacturer tags to confirm original metallurgical specs.

Technical Specifications

Application Suitability

Why Field Heating Practices Demand a Reliable separable structure cylindrical roller bearing supplier

Independent ring heating prevents microstructural degradation during heavy-duty assembly.

I once inspected a failed gearbox in South America where maintenance crews used open flames to force-fit a non-separable outer ring, completely ruining the steel’s microstructure. When dealing with massive radial loads, thermal shock from improper mounting causes premature spalling. Sourcing from a qualified separable structure cylindrical roller bearing supplier ensures you receive components designed for independent ring heating, eliminating the need for destructive forced assembly. [NEED_CITE: thermal shock damage during improper bearing mounting]

Matching Separable Designs to High-Radial-Load Environments

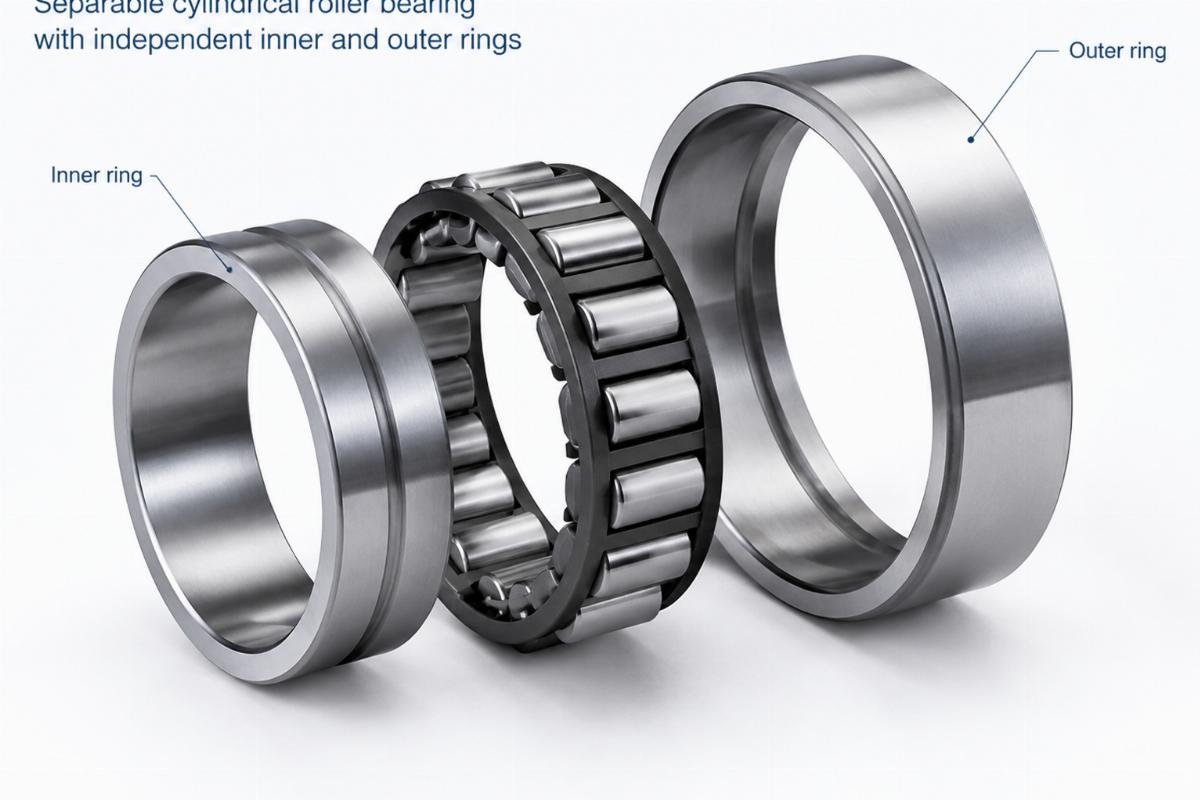

Heavy-duty gearboxes and rolling mills subject shafts to immense radial forces while demanding precise alignment. A separable structure cylindrical roller bearing supplier provides configurations where the inner ring and roller assembly can be mounted independently from the outer ring. This structural advantage allows maintenance teams to use induction heaters safely on each component, ensuring optimal interference fits without compromising the raceway hardness.

Managing Thermal and Lubrication Extremes in Heavy Equipment

In mining and construction machinery, components face severe shock loads combined with heavy particulate contamination. The non-aligning design requires rigid shaft support to maintain precise roller-to-raceway contact under these fluctuating radial forces. Lubrication intervals must account for the high friction generated in single-row or double-row configurations, especially when operating at elevated temperatures where thermal expansion alters internal clearance. Proper seal selection or external lubrication routing becomes critical to prevent abrasive dust from infiltrating the roller ends. [NEED_CITE: contamination impact on cylindrical roller bearing fatigue life]

Decoding Material Options and Row Configurations

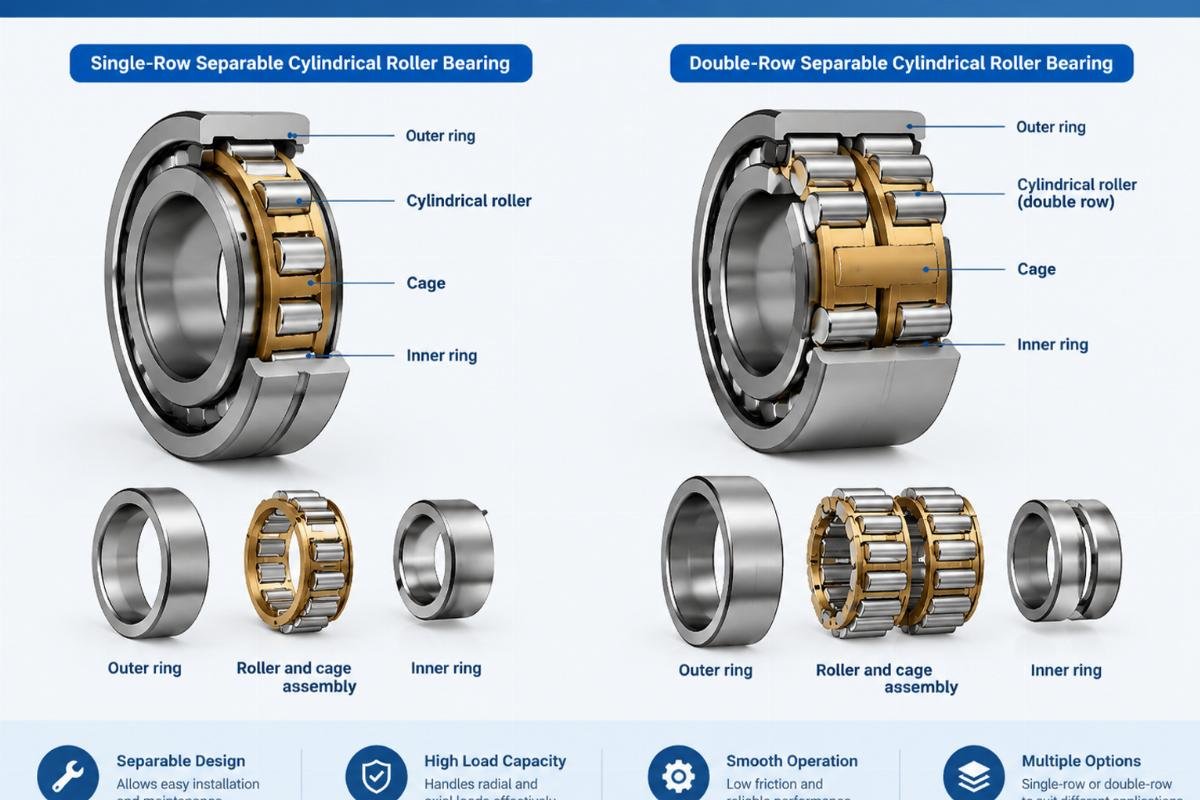

Selecting the right configuration depends heavily on spatial constraints and load magnitude. Single-row designs offer higher speed capabilities and accommodate moderate radial loads, making them ideal for traction motors and general manufacturing drives. Double-row variants provide substantially higher radial load capacity for compact gearbox stages where axial space is strictly limited. Regarding material options, components are available in Gcr15 or 100cr6 chrome steel variants, which deliver the necessary core toughness and surface hardness for demanding industrial environments. The non-aligning characteristic demands precise housing bore tolerances to prevent edge loading on the rollers, ensuring uniform stress distribution across the entire raceway contact area.

The Hidden Downtime Costs of Incorrect Clearance Selection

Specifying the wrong internal clearance for a high-temperature gearbox application leads to catastrophic consequences. If the clearance is too tight, thermal expansion during operation eliminates the internal gap, causing excessive friction and rapid seizure. Conversely, excessive clearance in a rolling mill application results in severe vibration and roller skidding, accelerating surface fatigue. These failure modes, categorized under ISO 15243, directly translate into unplanned downtime and costly secondary damage to adjacent gears and shafts. [NEED_CITE: bearing failure modes classified by ISO 15243]

Securing Traceability and Technical Alignment for Your Fleet

Procuring heavy-duty bearings requires more than just matching a part number; it demands rigorous verification of heat treatment and dimensional accuracy. We provide complete metallurgical traceability for every Gcr15 and 100cr6 component, ensuring the core hardness and microstructural integrity meet exacting OEM specifications. Our engineering team assists in cross-referencing single-row and double-row dynamic load ratings to validate your specific spatial constraints and load requirements. Furthermore, we consolidate mixed-brand shipments, allowing you to source premium global equivalents alongside reliable domestic lines without managing multiple vendor contracts, significantly simplifying your MRO procurement workflow.

Documentation & Authenticity

• Material inspection reports confirming Gcr15/100cr6 heat treatment and hardness profiles.
• Dimensional tolerance certificates verifying non-aligning bore and outside diameter precision.
• Original manufacturer batch traceability tags attached to each single-row and double-row unit.
• Factory running accuracy test logs for high-speed traction motor applications.
• Certificate of Conformity detailing compliance with international shipping and MRO standards.

Storage, Handling & Mounting

• Store Gcr15 chrome steel components in original packaging to prevent surface corrosion before induction heating.
• Heat inner rings and outer rings independently to avoid thermal shock to the separable roller assemblies.
• Use clean thermal gloves when handling double-row variants to prevent skin oils from degrading the chrome steel raceways.
• Verify housing bore tolerances before pressing the outer ring to prevent edge loading on non-aligning rollers.
• Apply recommended anti-friction coatings immediately after unboxing if the single-row units will be stored in humid environments.

Engineering Review for Optimal Model Selection

To ensure the selected configuration perfectly matches your machinery, please provide the specific equipment model, available mounting space, and detailed radial load profiles. Our technical team will evaluate your operating temperatures and contamination levels to recommend the appropriate single-row or double-row design and clearance class. Share your current OEM part numbers so we can perform a precise cross-reference validation and confirm dynamic load compatibility.

Frequently Asked Questions

Q: How do I determine the specific cylindrical roller bearing model based on equipment parameters?

A: Provide your equipment’s radial load, operating speed, and available mounting space. Our engineering team analyzes these parameters alongside thermal expansion data to recommend the optimal single-row or double-row configuration. We also cross-reference your existing OEM specifications to ensure exact dimensional and load-rating compatibility for your heavy-duty gearboxes or rolling mills.

Q: What are common failure modes for cylindrical roller bearings in heavy-duty gearboxes?

A: Premature failures often stem from improper mounting practices, such as force-fitting non-separable rings, which damages the microstructure. Other frequent issues include inadequate lubrication leading to roller skidding, or incorrect internal clearance causing thermal seizure. These failure mechanisms, documented in ISO 15243, highlight the importance of using separable designs that allow independent, controlled heating during assembly.

Q: How does material selection impact performance in specific operating environments?

A: Chrome steel variants like Gcr15 and 100cr6 provide exceptional core toughness and surface hardness for high radial loads in standard industrial settings. For applications involving severe moisture or chemical exposure, alternative stainless steel options may be considered to prevent raceway corrosion. Matching the material to your specific thermal and contamination profile ensures reliable fatigue life and structural integrity.

Q: What certifications are required for global shipping and MRO replacement scenarios?

A: We supply comprehensive documentation including Certificates of Conformity, material heat treatment reports, and dimensional inspection logs. These documents verify the metallurgical properties and precision tolerances of the Gcr15 and 100cr6 components. Complete batch traceability is maintained for all single-row and double-row units, satisfying stringent MRO audit requirements and facilitating smooth customs clearance across international borders.
