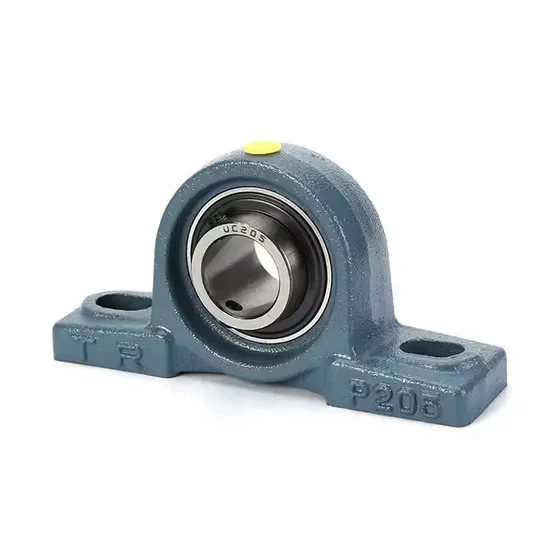

UCP205 Pillow Block Bearing for Concrete Mixers, High-Speed Wear Resistant Steel

Verified QR Authenticity — Scan the manufacturer’s official app to confirm the original batch traceability for every UCP205 unit before dispatch.

Technical Specifications

Application Suitability

Why Concrete Mixer Drives Destroy Standard OZD KOYO NTN NSK UCP205 pillow block bearing Units

Abrasive dust bypasses standard seals and grinds the cage to a halt.

Working on construction sites in Brazil, I watched standard iron-shielded units fail in weeks because cement powder infiltrated the deep groove raceway. When the housing cannot keep contaminants out, the internal rolling elements suffer catastrophic scoring, leading to sudden shaft lockups that halt the entire pouring schedule. The fine particulate matter acts like a lapping compound, rapidly wearing down the precision-machined surfaces. Once the dust mixes with the lubricant, it forms a thick, abrasive paste that blocks the rolling elements from rotating freely. This severe friction generates excessive heat, ultimately causing the inner ring to seize onto the shaft and resulting in massive mechanical failure [NEED_CITE: bearing contamination failure modes per ISO 15243].

Matching the Housing to High-Dust Environments

Selecting the right OZD KOYO NTN NSK UCP205 pillow block bearing requires evaluating the seal effectiveness against airborne particulates. Our sourcing strategy prioritizes units with enhanced sealing geometries that physically block cement dust from reaching the inner ring, ensuring the deep groove raceway remains clean during continuous mixer operation. The outer seal lips must maintain constant, low-friction contact with the inner ring slinger to create a physical barrier. If the seal gap is too wide, microscopic silica particles will inevitably enter the housing cavity. By focusing on effective sealing designs, we ensure that the lubricant remains uncontaminated, which is the single most critical factor in achieving a long service life in harsh construction environments.

Managing Radial Loads and Abrasive Exposure

Concrete mixing drums generate heavy, fluctuating radial loads combined with severe vibration and shock impacts. The cast steel housing provides the necessary structural rigidity to absorb these dynamic shocks without cracking or deforming under stress. Furthermore, the high-speed rotation demands a low-friction seal design that prevents heat buildup while maintaining a tight barrier against moisture and alkaline cement slurry. The continuous tumbling action of the aggregate inside the drum creates unpredictable load vectors that test the limits of the housing base. A rigid mounting surface and high-tensile housing material prevent the base from flexing, which could otherwise induce misalignment and accelerate fatigue in the rolling elements [NEED_CITE: radial load distribution in pillow block housings].

Decoding the Deep Groove and Aligning Features

The single-row deep groove raceway is engineered to handle predominant radial loads while accommodating minor axial displacements during operation. Because the inner ring and outer ring are separated, the aligning feature compensates for slight shaft deflections or mounting misalignments commonly found in heavy construction equipment. This self-aligning capability prevents edge loading on the rolling elements, distributing the stress evenly across the raceway and noticeably extending the operational lifespan. The spherical outer surface of the bearing insert mates perfectly with the concave seat of the cast steel housing, allowing the unit to pivot slightly. This pivotal movement absorbs initial installation errors and subsequent structural shifts, ensuring the internal clearance remains optimal even when the supporting frame twists under heavy loads.

The Financial Impact of Premature Housing Failure

Choosing a housing material or seal type that cannot withstand the abrasive environment leads to unplanned downtime and catastrophic damage to the driven shaft. When a unit seizes due to contaminant ingress, the resulting torque overload can shear drive pins, twist the mixer drum shaft, or burn out the drive motor. Replacing the entire drive assembly costs significantly more than specifying the correct corrosion-resistant housing from the start. The hidden costs extend beyond the physical parts; the labor required to dismantle a seized shaft in a confined batching plant space is immense. Production halts during peak concrete demand can result in severe contractual penalties, making the initial investment in high-quality, properly sealed units a critical financial safeguard [NEED_CITE: unplanned downtime cost analysis in heavy machinery].

Securing Genuine Traceability for Critical Spares

Sourcing authentic units is critical, as counterfeit housings often use inferior cast alloys that fracture unpredictably under dynamic loads. We verify the authorization channels for premium brands to ensure complete traceability documentation for every shipment. Our massive spot inventory covers standard and special part numbers, allowing us to consolidate mixed-brand orders into a single container, saving you from coordinating multiple suppliers for your MRO requirements. Counterfeit bearings often exhibit poor hardness and inadequate surface finish, leading to rapid spalling. By strictly controlling our supply chain, we guarantee that the metallurgical properties of the inner ring and the structural integrity of the housing meet the exact engineering standards required for demanding industrial applications.

Documentation & Authenticity

• Certificate of Conformity validating the cast steel housing grade and dimensional tolerances.
• Original factory batch codes linked to the manufacturer’s production facilities for full traceability.
• Official brand app QR verification confirming the genuine origin of the inner ring and housing.
• Material inspection reports detailing the metallurgical composition of the deep groove raceway.
• Running accuracy inspection confirming the low-vibration design parameters before dispatch.

Storage, Handling & Mounting

• Store the aligning bearing in its original packaging to prevent moisture from degrading the corrosion-resistant coating.
• Use clean gloves when handling the separated components to avoid introducing skin oils into the deep groove raceway.
• Ensure the cast steel housing base is perfectly level during mounting to preserve the self-aligning clearance.
• Apply the recommended grease through the housing fitting to maintain the low-noise running characteristics.
• Verify the shaft diameter matches the bore specifications before pressing the inner ring to avoid raceway distortion.

Preparing Your Technical Requirements

To ensure optimal selection, share your specific radial and axial load calculations, operating speeds, and ambient temperature ranges. Providing the OEM equipment model number allows our engineering team to cross-reference dimensional drawings and confirm the exact housing block model. Detail the environmental exposure, such as cement dust concentration or moisture levels, so we can recommend the most suitable sealing configuration.

Frequently Asked Questions

Q: How to verify the authenticity of KOYO, NTN, or NSK UCP205 bearings?

A: Authenticity is confirmed by scanning the QR code on the packaging using the manufacturer’s official mobile application. This digital check links the specific batch code to the factory’s production records, ensuring the deep groove raceway and cast steel housing meet original specifications. We provide complete traceability documentation with every shipment to guarantee genuine origin.

Q: What are the cross-reference equivalents for this pillow block unit?

A: While the UCP205 is a standardized designation, dimensions and internal clearances can vary slightly between manufacturers. We can cross-reference this model to equivalent units from other premium global brands based on your specific load and speed requirements. Sharing your exact shaft diameter and housing bolt spacing ensures we supply a dimensionally compatible replacement.

Q: How to select the right housing material for concrete mixer applications?

A: Concrete mixers expose housings to severe abrasion and alkaline moisture. While standard cast iron is common, cast steel variants offer superior impact resistance for heavy drum drives. Evaluating the specific vibration levels and shock loads of your batching plant helps determine whether the enhanced structural rigidity of a steel housing is necessary to prevent cracking.

Q: What are the recommended maintenance intervals for high-speed units?

A: Maintenance frequency depends heavily on the dust concentration and operating temperature of the facility. In high-contamination environments like concrete batching, regular visual inspections of the seal lips are essential. Re-lubrication should follow the manufacturer’s guidelines for the specific grease type, ensuring the low-vibration design is maintained without overfilling the housing cavity.
